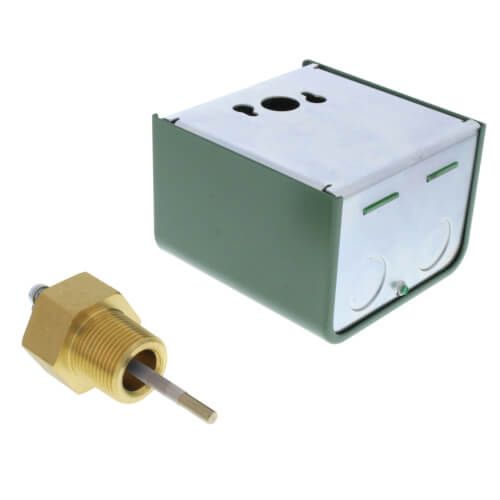

TACO LTA1203S-1 Electronic Auto Reset Low Water Cut-Off 120V 3/4inch Probe

Product Description

The TACO LTA1203S-1 is an electronic low water cut-off designed to protect boilers, including small residential and larger industrial units. This microprocessor-based control uses a probe to detect water levels in both hot water and steam boilers. It ensures safety by reacting when water levels drop below safe thresholds. The device can serve as a primary or secondary low water cutoff.

• Adjustable probe sensitivity for customized operation.
• External LEDs and simplified wiring enhance installation and testing.
• Features both automatic and manual reset modes.

Product Highlights

The LTA1203S-1 activates alarms or automatic feeders for water management. It includes an external test button and adjustable delay features for added functionality.

Product Information

Standard Information

• Application: Hot Water Boilers
• Voltage: 120V

Technical Specifications

• Reset Type: Automatic
• Thread Size: 3/4 inches
• Connection Type: Threaded
• Max Pressure (PSI): 15 (Steam), 160 (Hot Water)
• Max Probe Temp: 250 °F
• Max Ambient Temp: 150 °F
• Delay on Make Timer: 0 seconds, 15 seconds
• Type: Electronic
