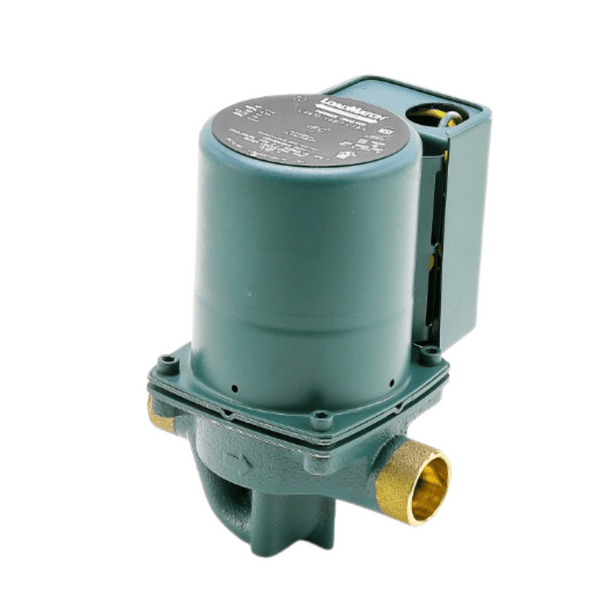

Taco L0410-Y6BI1-C7AN Circulator Pump Bronze 1/40 HP 115V Sweat

Product Description

The Taco L0410-Y6BI1-C7AN circulator pump is designed for fan coil heating and cooling systems. It operates at 115V and features 1/40 HP and 3250 RPM. The bronze pump comes with a three quarter inch sweat connection and maintains a maximum pressure of 200 PSI.

• Integral Flow Check (IFC) prevents gravity flow and minimizes installation costs.
• Anti-Condensate Baffle (ACB) safeguards motor windings from condensate build-up.
• Field serviceable cartridge design enhances serviceability.

Product Highlights

This Taco circulator pump offers a self-lubricating design, ensuring reliable operation for heating and cooling applications.

Product Information

Standard Information

• Brand: Taco
• Item Number: L0410-Y6BI1-C7AN

Technical Specifications

• Amps: 0.55A
• Connection: Sweat (3/4 inch)
• HP: 1/40 HP
• Material: Bronze
• Max Pressure: 200 PSI
• Phase: Single Phase
• Pump Type: Circulator Pump
• RPM: 3250 RPM
• Series: LoadMatch
• Voltage: 115V
• Integral Flow Check: Yes
