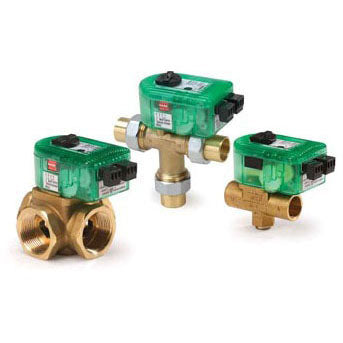

TACO I100C3R iSeries 1 Sweat 3-Way Mixing Valve

Product Description

The TACO I100C3R iSeries Mixing Valve is a one-inch three-way valve for controlling temperature in heating systems. This valve features a forged bronze body with soldered end connections, ensuring durability and reliability. Equipped with a microprocessor-based control in the actuator, it regulates water temperature efficiently. The design supports both outdoor reset control and fixed water supply temperature options. This valve operates using a twenty-four Volt AC power supply and includes a manual operation button.

• Temperature control range from eighty to one hundred eighty degrees Fahrenheit.
• Constructed with a forged bronze body and soldered ends.
• Compatible with conventional injection systems.

Product Highlights

This mixing valve is efficient for temperature control in heating applications, providing boiler protection and improving system performance.

Product Information

Standard Information

• Manufacturer Name: Taco
• Type: Mixing Valve

Technical Specifications

• Nominal Size: 1 inch
• End Connection: Soldered x Soldered
• End to End Distance: seven and one-quarter inches
• Body Material: Forged Bronze
• Set Temperature Range: eighty to one hundred eighty degrees Fahrenheit
• Temperature Rating: twenty to two hundred forty degrees Fahrenheit
• Pressure Rating: 300 PSI
• CV Rating: 4.5
