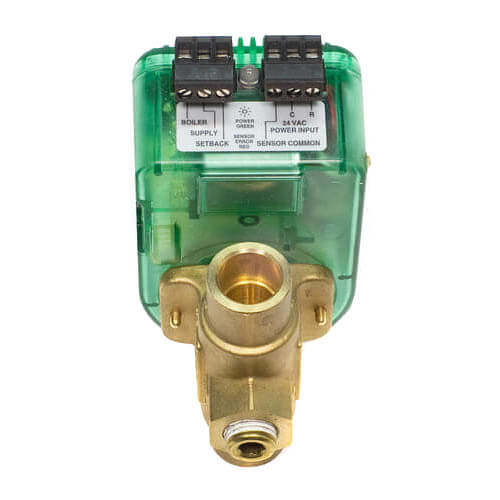

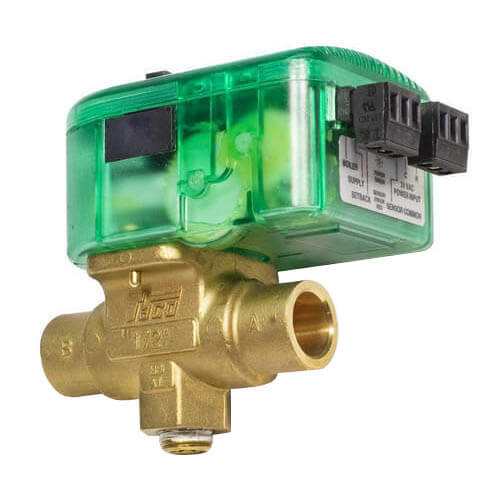

Taco I075C2S-2 3/4, 2 Way Setpoint I-Series Mixing Valve with Sensor

Product Description

The Taco I075C2S-2 is a 3/4-inch, 2-way setpoint I-Series mixing valve with a built-in sensor. This valve delivers precise and cost-effective temperature control for heating systems. The valve allows for zone-to-zone control and offers built-in boiler protection.

• Operates off constant power or relay end switch
• Ball valve design with high Cv
• Manual operation button

Product Highlights

Designed for heating closed systems, the Taco I075C2S-2 mixing valve supports applications for hot and chilled water systems with up to 50% glycol. Featuring a solid-state microprocessor design, it offers reliable performance with an easy, one-hand actuator removal feature and multi-status LED indicator light.

Product Information

Standard Information

• Brand: Taco
• MPN: I075C2S-2
• Product Type: Mechanical component
• Application: Closed systems, hot and chilled water, up to 50% glycol, heating
• Body Pattern: 2-way

Technical Specifications

• Size: 3/4 inches
• Connection Type: C x C
• Connection Method: Sweat
• Max Temp: 150°F
• Min Temp: 85°F
• Temperature Range: 85°F - 150°F
• Ambient Conditions: Indoor use only, -22°F to 185°F
• Max Pressure: 300 PSI
• Sensors: NTC Thermistor 10 k ohm @ 77°F
• Seat Leakage: Drop-tight close off
• Voltage: 24v
• Hertz: 60
• Amperage: 0.4
• Fluid Temperature Range: 20°F to 240°F
• Height: 3-3/4 inches
• Width: 2-3/8 inches
• Flow Capacity: 10.3 Cv
