Product Description

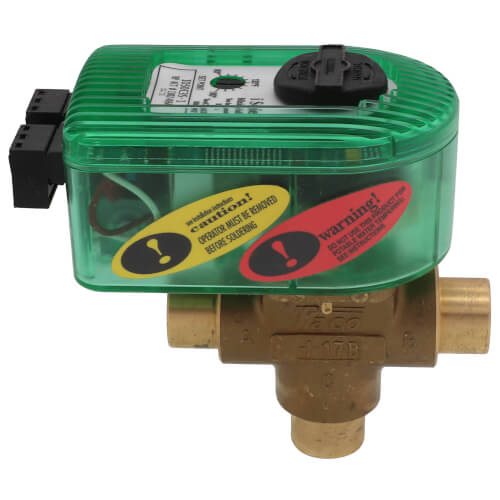

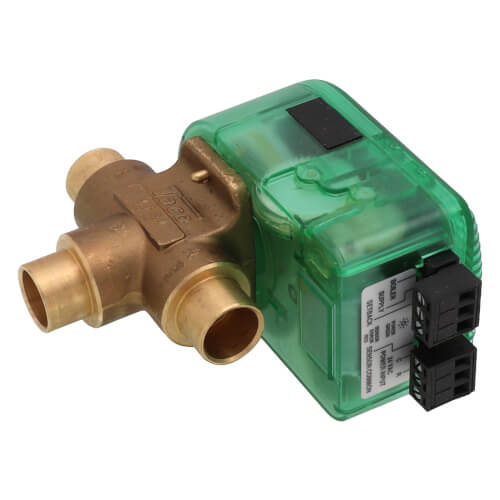

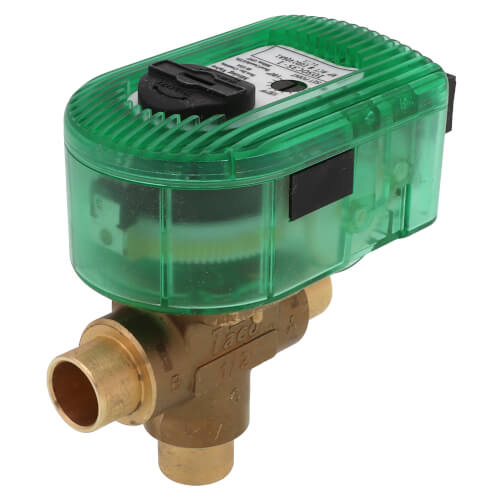

The Taco I050C3S-1 is a 1/2 inch, 3-way setpoint mixing valve with a sensor designed for heating systems. This mixing valve provides precise control of supply water temperature, ensuring optimal performance in heating applications. The actuator uses a microprocessor for effective modulation of the valve, allowing for adjustable temperature settings from eighty degrees Fahrenheit to one hundred eighty degrees Fahrenheit. Key features include:
- Direct drive actuator for reliable temperature control.
- Adjustable setpoint with a dial on the actuator.
- LED indicator for easy installation and diagnostics.
Product Highlights
The Taco I050C3S-1 mixing valve enhances heating efficiency by injecting varying rates of hot water into cooler return water. It can also integrate with a boiler protection sensor for additional safety.
Product Information
Standard Information
-
Brand: Taco
-
MPN: I050C3S-1
-
Application: Heating
-
Connection Type: C x C
Technical Specifications
-
Max Temperature: 150 degrees Fahrenheit
-
Min Temperature: 85 degrees Fahrenheit
-
Max Pressure: 125 PSI
-
Temperature Range: 85 degrees Fahrenheit - 150 degrees Fahrenheit
-
Shipping Dimensions: 6.9 x 5.3 x 3.1 inches
