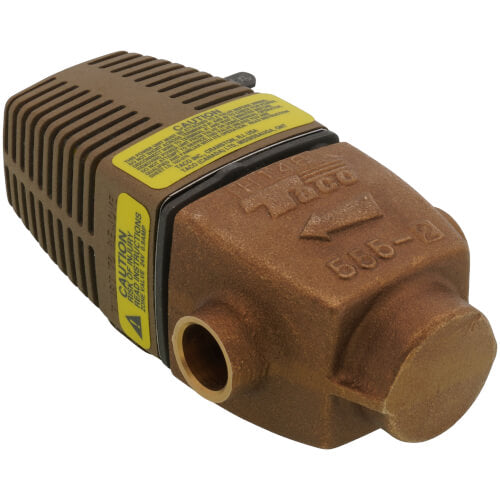

Taco 555-2 Zone Valve 24v 1/2 Sweat 2-Way 555-050RP 555-055RP

Product Description

The Taco 555-2 Zone Valve is designed for zoning applications in hydronic heating systems. It features a 24v motor and 1/2-inch sweat connections. This valve offers a reliable solution for regulating the flow in hot water heating systems. Suitable for both residential and commercial installations, it can handle up to 150 feet of pump head pressure.

• High-head capacity for tall buildings
• Reliable flow control in hydronic systems
• Designed for use in zoning applications

Product Highlights

This valve effectively creates separate zones or isolates equipment in a hydronic heating system. Its design includes a twist-off head and bellows or globe valve construction for leak-proof operation. Proven performance and ease of installation make it a top choice for HVAC professionals.

Product Information

Standard Information

• Brand: Taco
• MPN: 555-2

Technical Specifications

• Size: 1/2 inch
• Hertz: 60
• Voltage: 24v
• Amperage: 0.9
• Material: Bronze
• Position: Normally Closed
• End Switch: Yes
• Application: Zoning
• Body Pattern: 2-Way
• Max Temperature: 240 degrees Fahrenheit
• Min Temperature: 40 degrees Fahrenheit
• Depth: 2 inches
• Max Flow: 4.5 GPM
• Min Flow: 1 GPM
• Width: 3-1/16 inches
• Height: 5.375 inches
• Connection Type: Sweat
• Flow Range: 1-4.5 GPM
• Flow Capacity: 4.2 Cv
• Max Pressure: 125 PSI
• Pump Head: 150 feet of water
• Temperature Range: 40 degrees Fahrenheit to 240 degrees Fahrenheit
