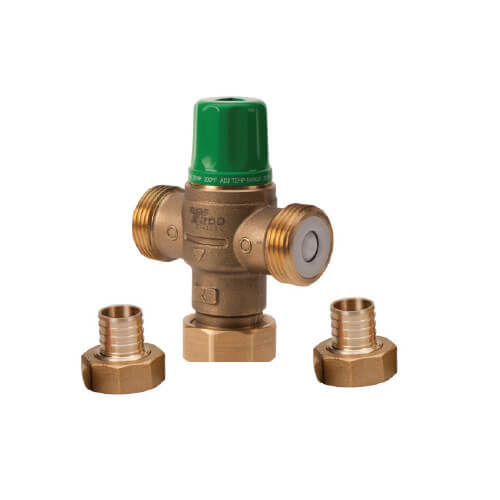

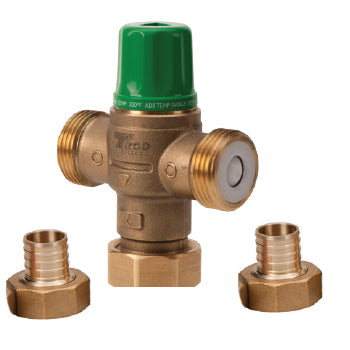

Taco 5123-P2 3/4 PEX Union Mixing Valve Low Lead

Product Description

The Taco 5123-P2 is a high-quality brass mixing valve designed for diverse domestic hot water applications. This valve integrates a thermostatic element that effectively manages and regulates water temperatures. It can withstand supply temperatures up to one hundred eighty degrees Fahrenheit, ensuring safe and potable water. The ASSE 1017 certification confirms that the water temperature is moderated before being directed through the system, guaranteeing usability.

This mixing valve includes features like a lockable temperature control to prevent unwanted fluctuations in temperature. The installation of the Taco 5123-P2 guarantees reliable performance for your hydronic systems.

• Lead-free design compliant with .25% lead maximum
• No routine maintenance is required
• Includes one Taco 5122-P2 mixing valve and one outlet temperature strip

Product Highlights

Efficient temperature mixing for hydronic systems.

Product Information

Standard Information

• Material: Forged Brass
• Max Flow: 14 GPM

Technical Specifications

• Size: 3/4 inches
• Body Pattern: 3-Way
• Connection Type: PEX Crimp x PEX Crimp
• Flow Capacity: 1.8 Cv
• Max Pressure: 200 PSI
• Shipping Dimensions (L x W x H): 4.75 x 4.75 x 2.3 inches
