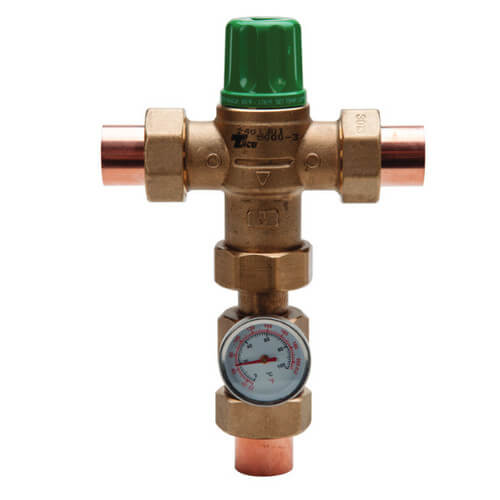

Taco 5122-C2-G 1/2 Sweat Union Mixing Valve w/ Gauge Low Lead

Product Description

The Taco 5122-C2-G is a robust brass mixing valve designed for efficient temperature control in hydronic systems. This valve is suitable for a variety of domestic hot water applications. It features an integral thermostatic element for regulating water temperature effectively. Rated to handle a supply temperature of up to one hundred eighty degrees Fahrenheit, this valve ensures safe water for consumption and complies with ASSE 1017 certification norms.

• Lead-free compliant
• Lockable maximum temperature setting
• Includes temperature gauge and outlet temperature strip

Product Highlights

This mixing valve is an essential component for achieving precise temperature control in many applications.

Product Information

Standard Information

• Brand: Taco
• MPN: 5122-C2-G

Technical Specifications

• Size: 1/2 inches
• Material: Forged Brass
• Application: Point of Source, Point of Use
• Body Pattern: 3-Way
• Max Flow: 14 GPM
• Flow Capacity: 1.8 Cv
• Connection Type: C x C
• Connection Method: Sweat
• Max Pressure: 200 PSI
• Standards Met: ASSE 1017, ASSE 1070
• Weight: 2.8 lbs
• Shipping Dimensions: 4.75 x 4.75 x 2.3 inches
