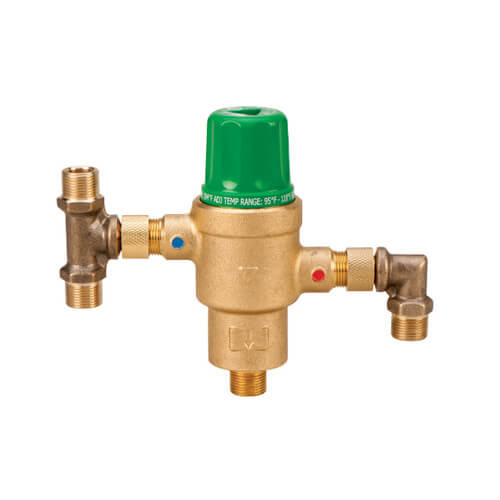

Taco 5121-F2 3/8 in. Compression Mixing Valve

Product Description

The Taco 5121-F2 is a 3/8 inch compression mixing valve designed for use in tempered domestic potable water applications. This valve is engineered to provide efficient and stable mixed water temperature control.

• Certified to ASSE 1070 for safety
• Delivers flow rates up to 4.6 gallons per minute
• Constructed with lead-free brass for safe drinking water

Product Highlights

Ideal for various residential and commercial applications, the Taco 5121-F2 mixing valve ensures reliable performance in delivering tempered water.

Product Information

Standard Information

• Brand: Taco
• MPN: 5121-F2

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: Compression
• Inlet Connection Size: 3/8 inches
• Outlet Connection Size: 3/8 inches
• Minimum Flow GPM: 0.34 GPM
• Maximum Flow GPM: 4.6 GPM
• Minimum Outlet Temperature: 95°F
• Maximum Outlet Temperature: 118°F
• Max Pressure: 125 psi
• Weight: 2.10 pounds
