Taco 5004-P3 1 inches PEX Union Mixing Valve (1 inches)

Product Description

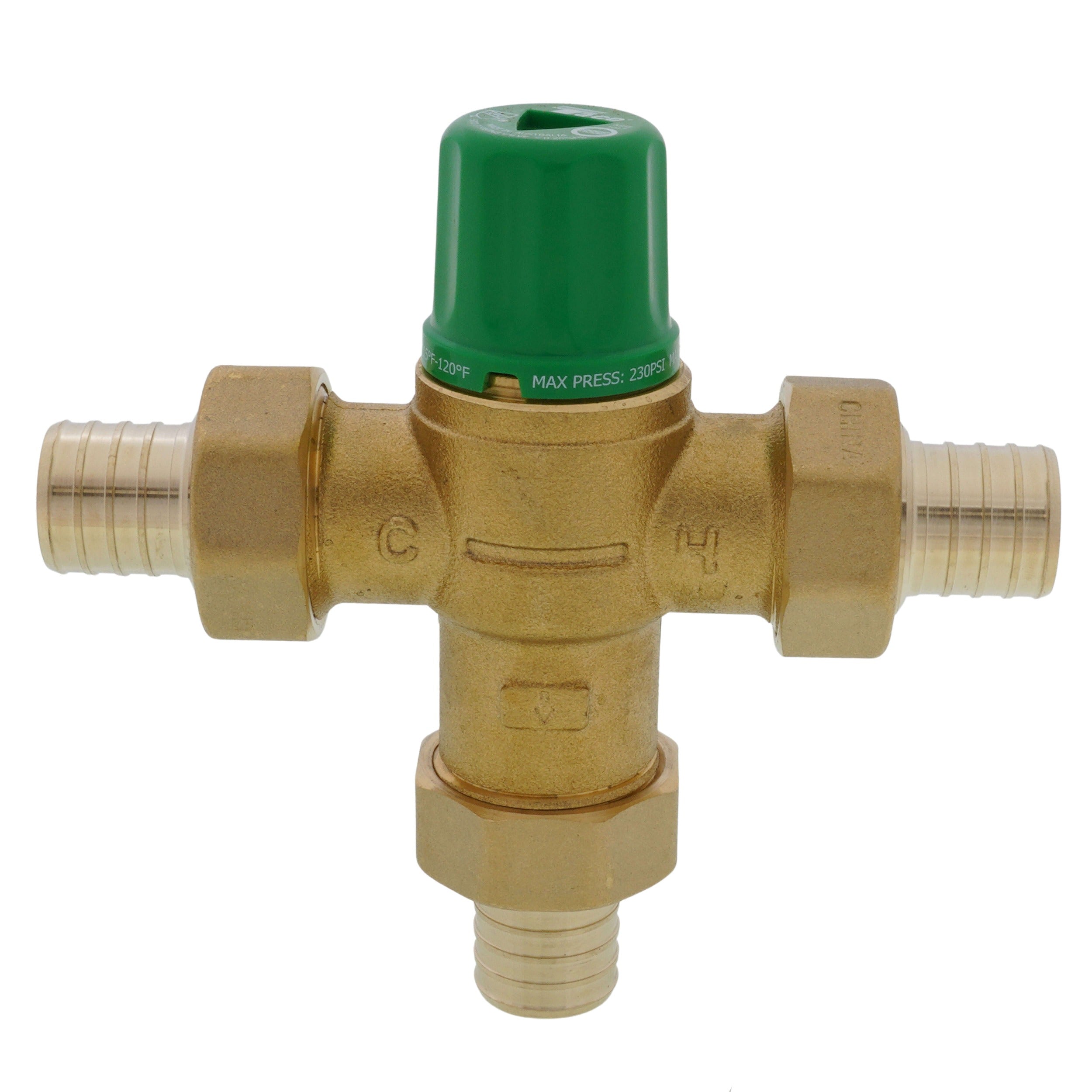

Taco 5004-P3 is a 1" PEX thermostatic mixing valve designed for hydronic heating and domestic hot water applications. The forged brass valve regulates outlet temperature with an integral thermostatic element and delivers mixed water at a set temperature of 115-120 F while accommodating a wider mix range of 85-176 F. The unit features union PEX connections and is certified to ASSE 1017 for safe water mixing.

• Forged brass body with 1" PEX union inlet and outlet connections; low head loss design
• Thermostatic element maintains set temperature 115-120 F; extended mix range 85-176 F; minimum flow 1 GPM
• ASSE 1017 certified; lead free (less than 0.25% lead); max pressure 230 psi; flow capacity Cv 2.3, max flow 24 GPM

Product Highlights

Forged brass 1" PEX union thermostatic mixing valve; set 115-120 F; ASSE 1017 certified; max 176 F and 230 psi

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 5004-P3
