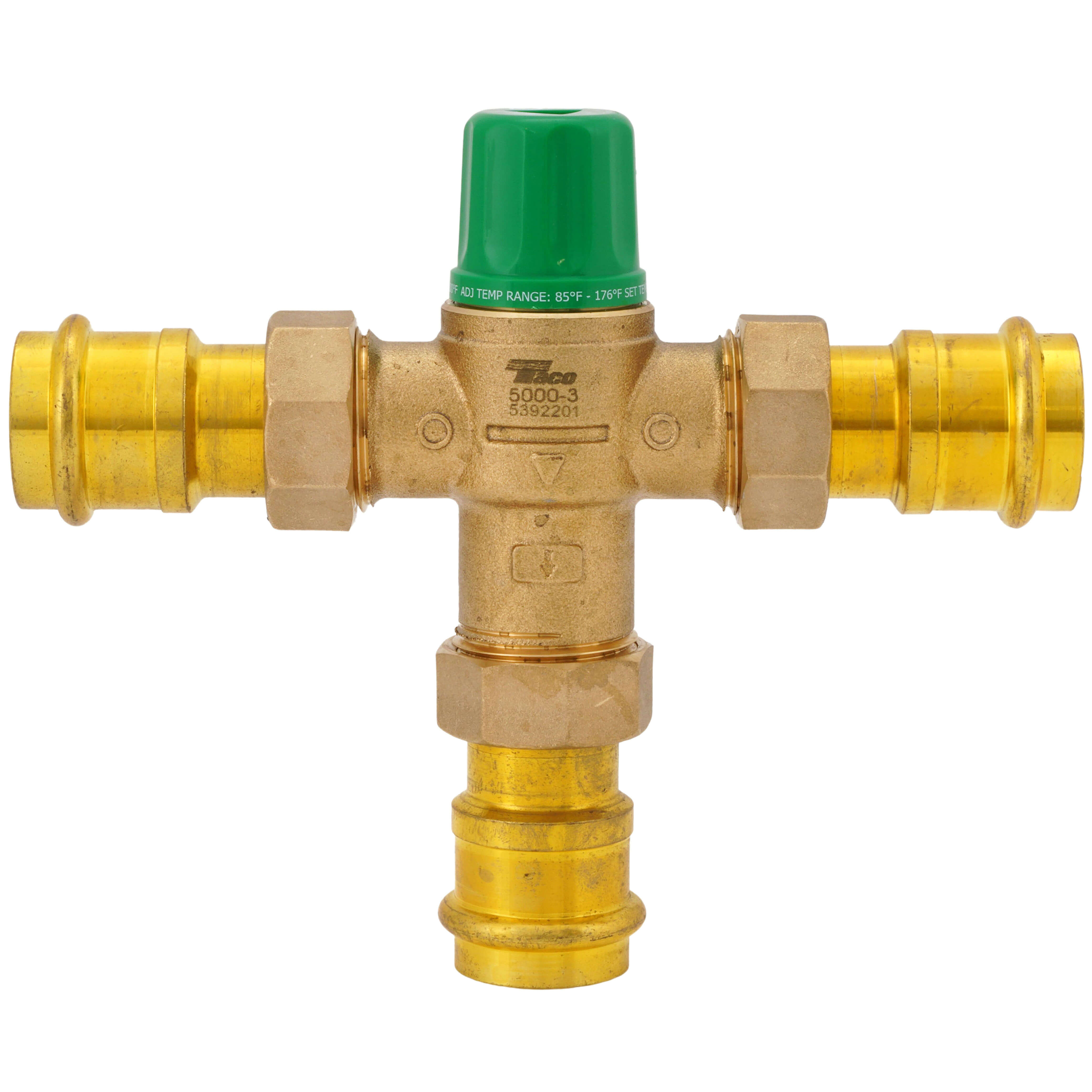

Taco 5004-H3 1 Press 5004 Mixing Valve Low Lead

Product Description

The Taco 5004-H3 is a low lead mixing valve. It is designed for domestic hot water applications. This mixing valve meets NSF 61 and ASSE 1017 standards. It allows for increased water heater efficiency and safety. Water can be stored at high temperatures, reducing harmful bacteria while remaining safe at 120 degrees Fahrenheit or less.

• ASSE 1017 certified
• Designed for potable water
• Stable mixed water temperature

Product Highlights

This valve provides reliable performance for hot water systems. It has a wide temperature range of 85 to 176 degrees Fahrenheit, ensuring consistent water delivery.

Product Information

Standard Information

• Brand: Taco
• MPN: 5004-H3

Technical Specifications

• Connection Type: Press x Press
• Body Pattern: 3-Way
• Application: Point of Source
• Material: Forged Brass
• Lead Free: Yes
• Flow Capacity (Cv): 2.3
• Max Flow (GPM): 20
• Max Pressure (PSI): 230
• Temperature Range (F): 85°F - 176°F
• Weight: 1.865 lbs
• Shipping Dimensions: 6.55 inches (D) x 5.2 inches (W) x 1.95 inches (H)
