Product Description

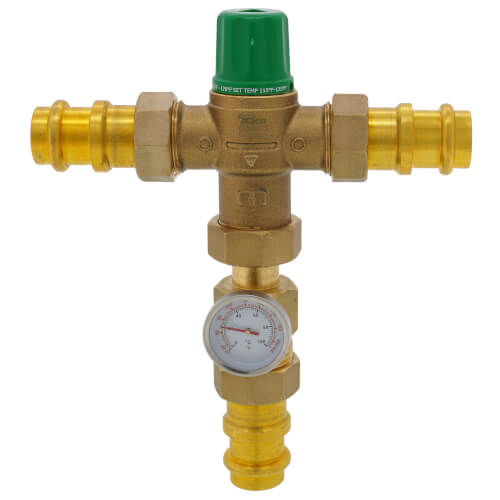

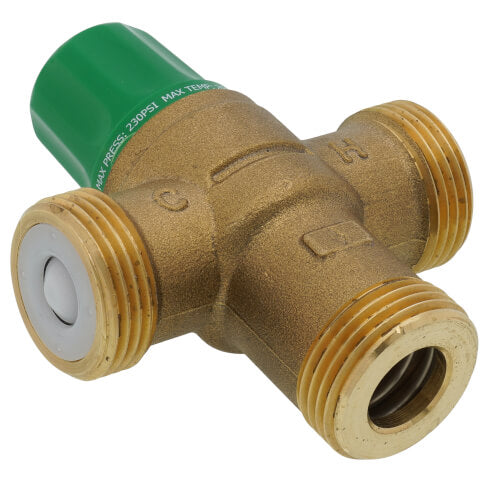

The Taco 5003-H3-G is a mixing valve designed for controlling water temperature in domestic hot water applications. The product features a 3/4 inch press brass construction and is rated for a maximum pressure of 230 pounds per square inch. This valve is ideal for point of source applications, making it suitable for a variety of plumbing installations.
- Brass construction with gauge
- Max pressure of 230 PSI
- Temperature range from 85 to 176 degrees Fahrenheit
Product Highlights

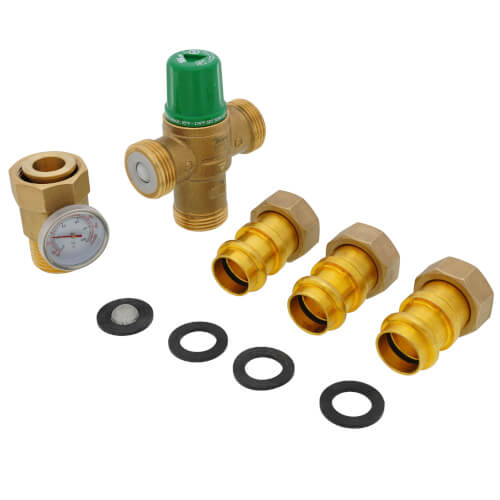

This mixing valve provides stable mixed water temperatures and is NSF 61 and ASSE 1017 certified. It is designed for easy installation with various connection options including press, sweat, NPT, and CPVC.
Product Information
Standard Information
-
Brand: Taco
-
Product Type: With Gauge
Technical Specifications
-
Size: 3/4 inches
-
End Connection: Press
-
Material: Brass
-
Pressure Rating: 230 PSI
-
Temperature Rating: 176 degrees Fahrenheit
-
Length: 9-3/4 inches
-
Width: 5-1/8 inches
-
Height: 2-1/2 inches
-
Shipping Weight: 2.750 pounds
-
Application: Point of Source
