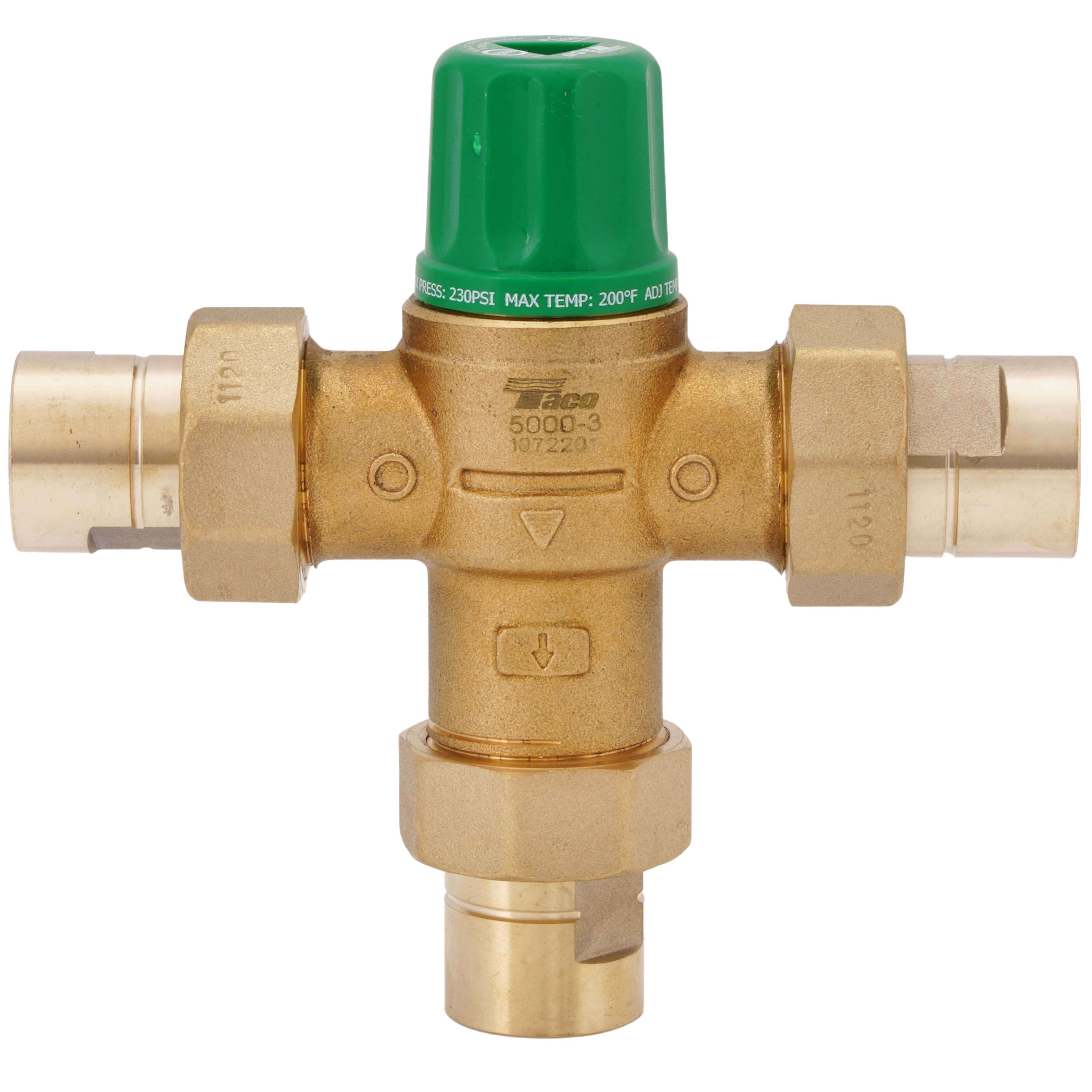

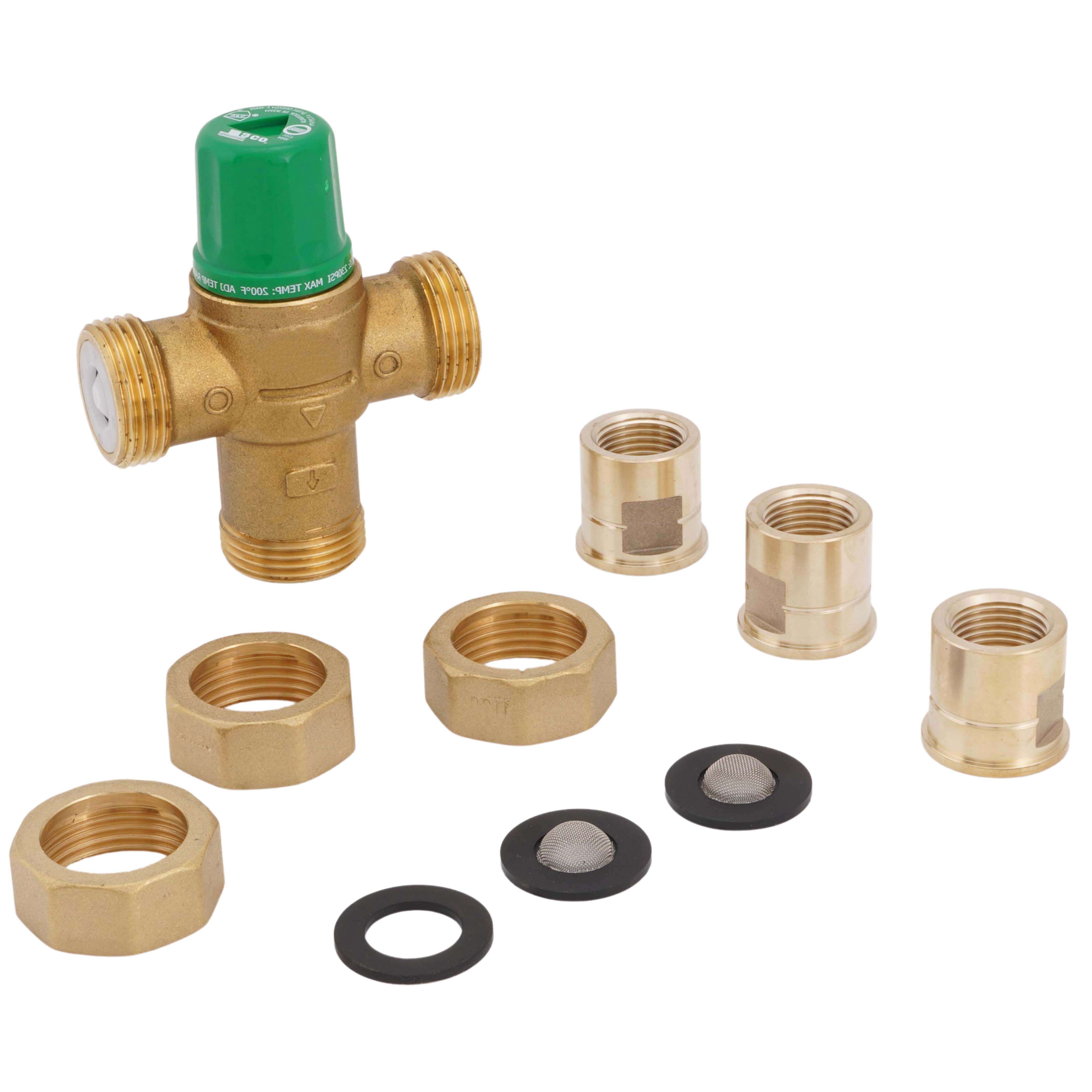

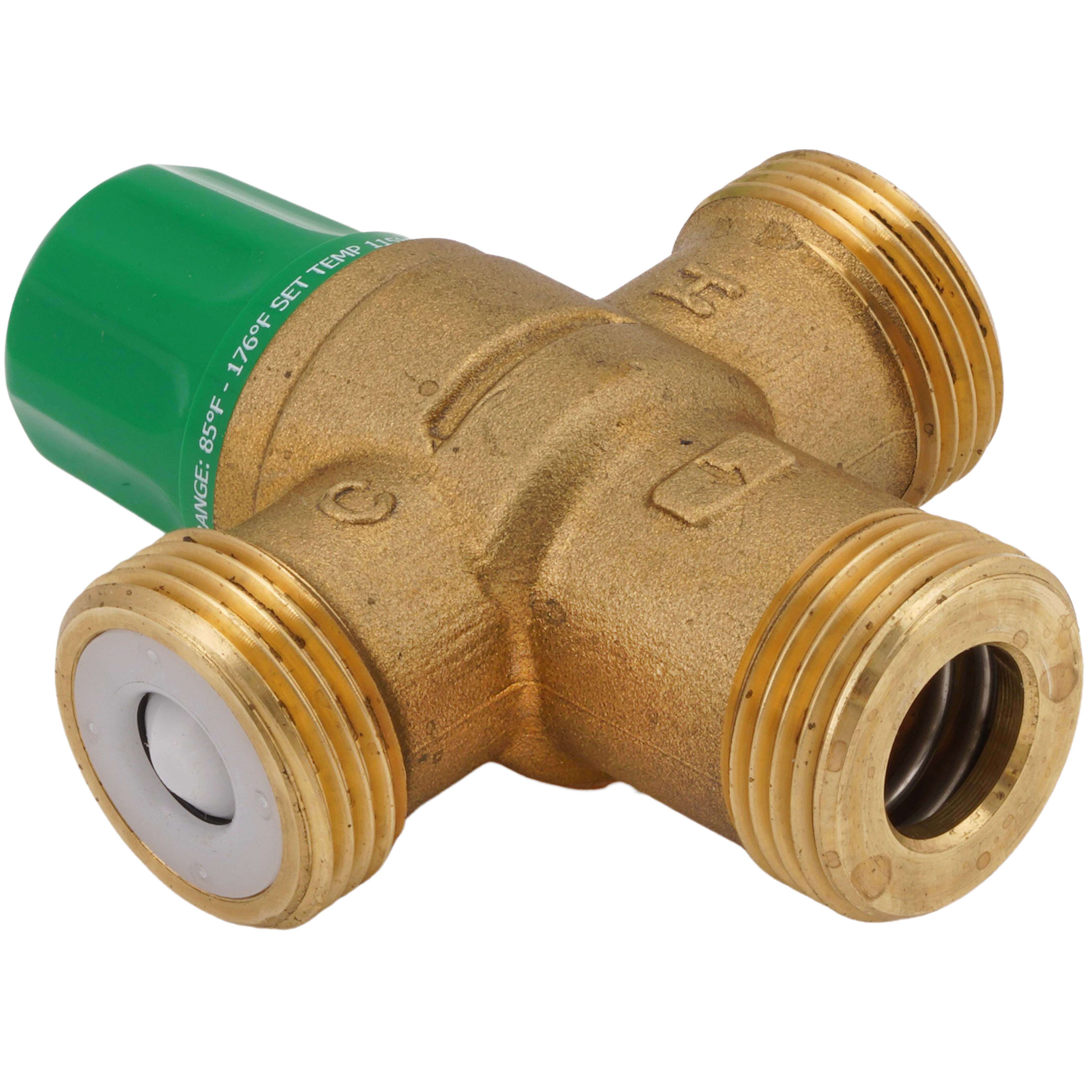

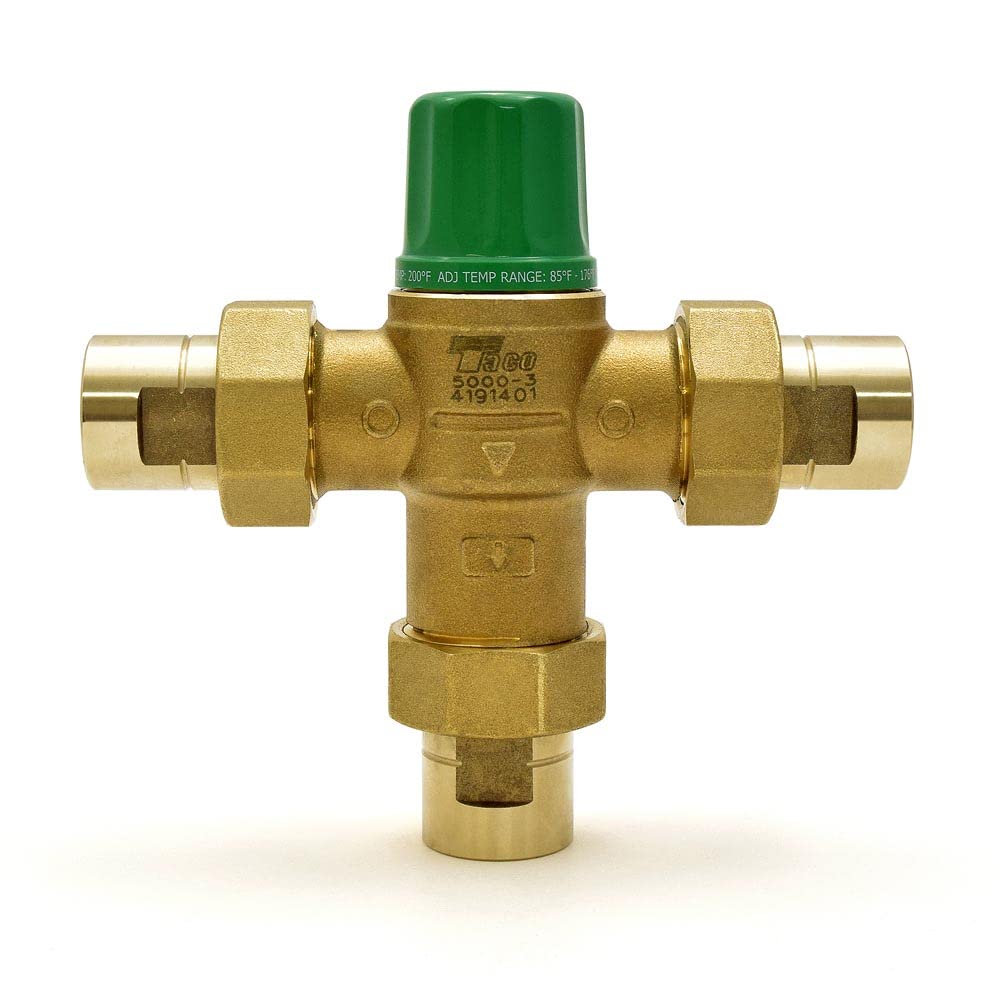

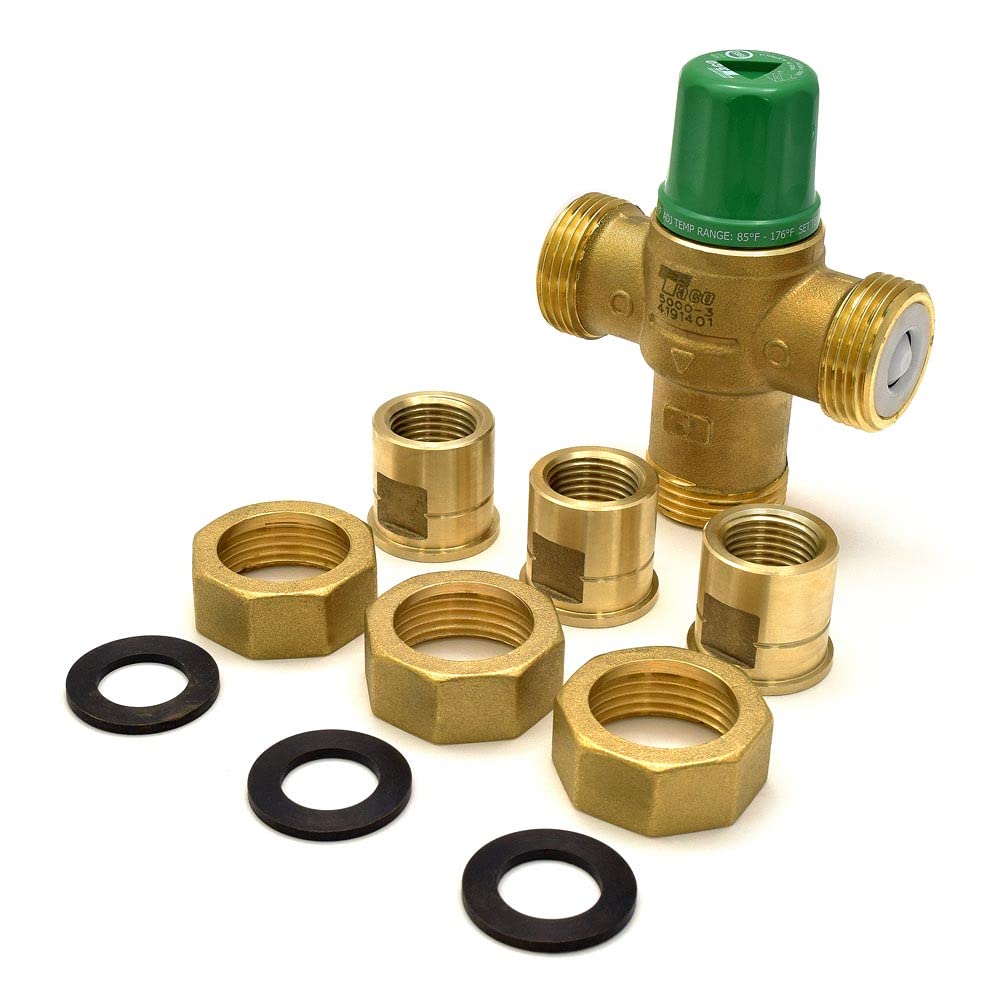

Taco 5002-T3 1/2 inches NPT Mixing Valve

Product Description

The Taco 5002-T3 is a 1/2" NPT Mixing Valve. It is a low head loss brass mixing valve, ideal for a wide range of hydronic heating and domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The valve features a tamper resistant cap to prevent alterations to the mixing temperature.

• Less than .25% lead
• ASSE 1017 Listed
• Ideal for Domestic Water Distribution Points

Product Highlights

Dependable temperature mixing for your hydronic system is as easy as adding a 5002-T3.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 5002-T3

Technical Specifications

• Size: 1/2"
• Body Pattern: 3-Way
• Connection Method: Threaded
• Connection Type: NPT UNION
• Max Flow (GPM): 18
• Max Pressure (PSI): 200
• Flow Capacity (Cv): 2.3
• Standards Met: ASSE 1017
• Material: Forged Brass
• Application: Point of Source
• Lead Free: Yes
• Valve Application: Water
• Inlet Connection Size: 1/2"
• Outlet Connection Size: 0.5 Inches
• Minimum Flow GPM: 1 GPM
• Minimum Outlet Temperature: 85°F
• Maximum Outlet Temperature: 176°F
• Set Temperature: 115-120°F
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: NPT
• Number of Ports: 3
• Valve Type: mixing valve
• Type: Thermostatic
• Temperature Min (Fahrenheit): 85
• Temperature Max (Fahrenheit): 175
• Ports: 3
• P1 Size: 1/2
• P1 Connection: Union Threaded
• P2 Size: 1/2
• P2 Connection: Union Threaded
• P3 Size: 1/2
• P3 Connection: Union Threaded
• Connection Size: 1/2" NPT Union Connections
• Body Material: Forged Brass
