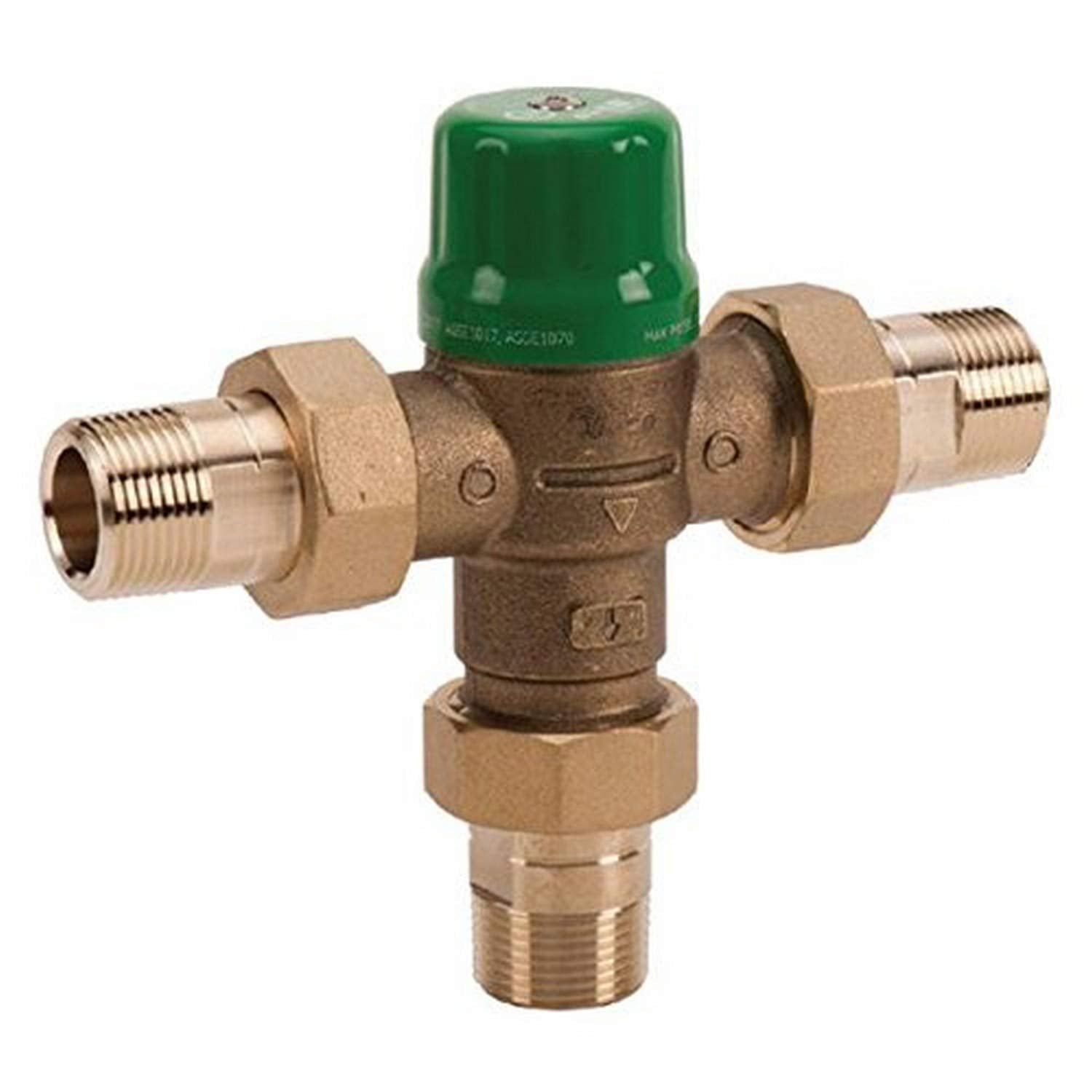

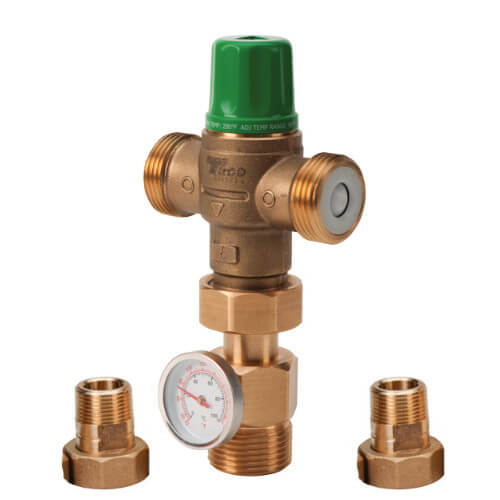

Taco 5002-HX-T3-G 1/2 NPT Union 5000 Heating Only Mixing Valve w/ Gauge

Product Description

The Taco 5002-HX-T3-G is a 1/2 NPT union mixing valve designed for heating systems. It ensures stable mixed water temperatures, making it suitable for various applications. This mixing valve is effective for radiant heating, whether installed in slab, over pour, or joist bay heating configurations.

• Delivers stable mixed water temperature.
• Includes tamper-resistant cap for safety.
• Compatible with NPT and union connections.

Product Highlights

This valve supports an extended temperature range and is ideal for low temperature and radiant heating systems.

Product Information

Standard Information

• Brand: Taco
• MPN: 5002-HX-T3-G

Technical Specifications

• Connection Type: MNPT x MNPT
• Max Temp: 180 degrees F
• Max Pressure: 230 PSI
• Max Flow: 20 GPM
• Body Pattern: 3-Way
• Flow Capacity: 2.3 Cv
• Accuracy: +/- 3 degrees F
• Material: Forged Brass
• Shipping Dimensions: 5.6 x 5.1 x 2.3 inches
• Weight: 2.05 lbs
