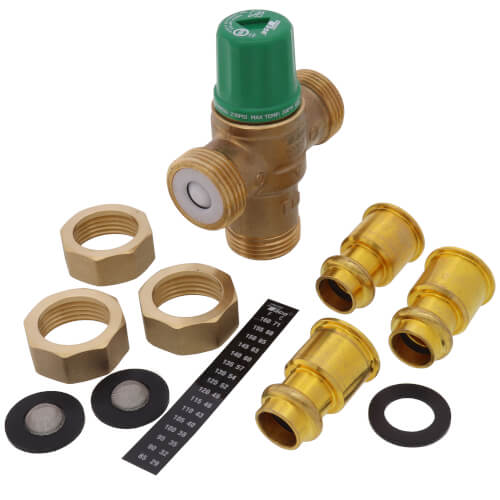

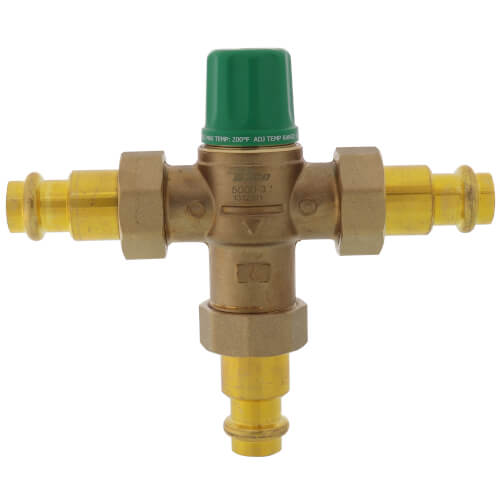

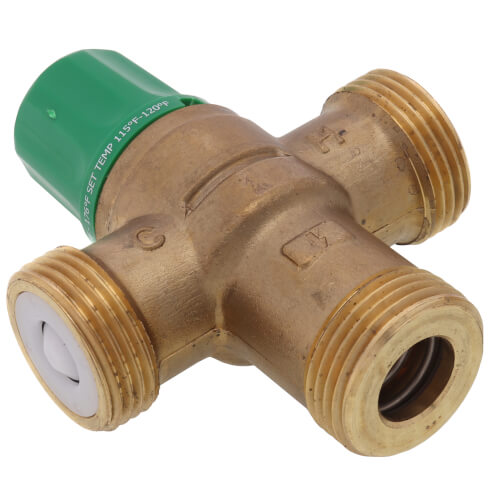

Taco 5002-H3 1/2 Press 5002 Mixing Valve (Low Lead)

Product Description

The Taco 5002-H3 is a 1/2 inch mixing valve designed for domestic hot water applications. This valve meets NSF 61 and ASSE 1017 standards, allowing for safe water storage at effective temperatures. With an extended temperature range from eighty-five to one hundred seventy-six degrees Fahrenheit, it ensures a steady mixed water temperature. The unique design includes an advanced thermostatic element for optimal performance.

• ASSE 1017 certified
• Ideal for domestic water distribution points
• Low lead construction for potable water applications

Product Highlights

Designed to deliver stable mixed water temperature, the Taco 5002-H3 mixing valve is equipped with a tamper-resistant cap and supports various connection types.

Product Information

Standard Information

• Size: 1/2 inches
• Material: Forged Brass

Technical Specifications

• Max Flow Rate: 20 GPM
• Connection Type: Press x Press
• Max Pressure: 230 PSI
• Temperature Range: 85°F - 176°F
• Flow Capacity (Cv): 2.3
• Body Pattern: 3-Way
• Lead Free: Yes
• Application: Point of Source
