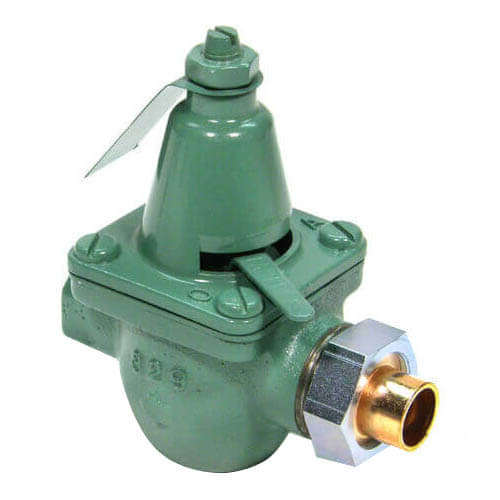

Taco 335U-050-C1 1/2 Brass Pressure Reducing Valve Union Sweat x FNPT

Product Description

The Taco 335U-050-C1 1/2 Brass Pressure Reducing Valve features a union sweat inlet connection. This valve automatically feeds water to a system whenever pressure in the system drops below the pressure setting of the valve.

• Fast Fill Rate
• Exclusive Fast Fill Lever Lock
• Adjustable Set Pressure of 10 to 25 psi

Product Highlights

This boiler feed valve combines an in-line pressure relief valve and includes a built-in check to prevent the system from emptying if incoming pressure fails. It offers a factory set pressure of twelve psi, with a maximum inlet pressure of one hundred psi.

Product Information

Standard Information

• Brand: Taco
• MPN: 335U-050-C1
• Product Name: 1/2 Brass Pressure Reducing Valve (Union Sweat x FNPT)
• Category: Taco Pressure Reducing Valves

Technical Specifications

• Size: 1/2 inch
• Width: 3-3/4 inches
• Height: 5-1/8 inches
• Material: Brass
• Weight: 2.3 pounds
• Application: Heating
• Connection Type: C Union x FNPT
• Pressure Range: 10 to 25 psi
• Max Inlet Pressure: 100 psi
• Factory Set Pressure: 12 psi
• Temperature Range: 212 degrees Fahrenheit max
