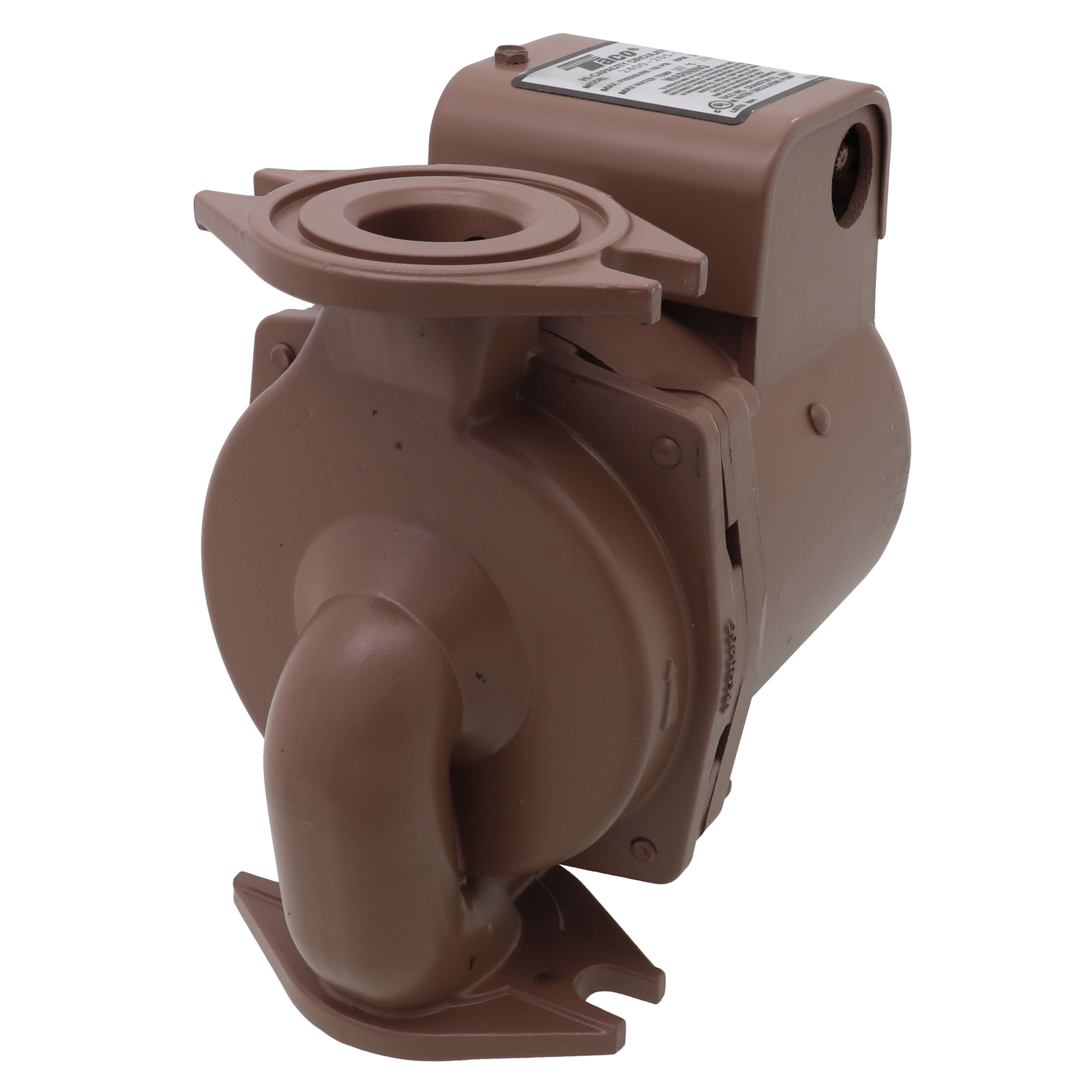

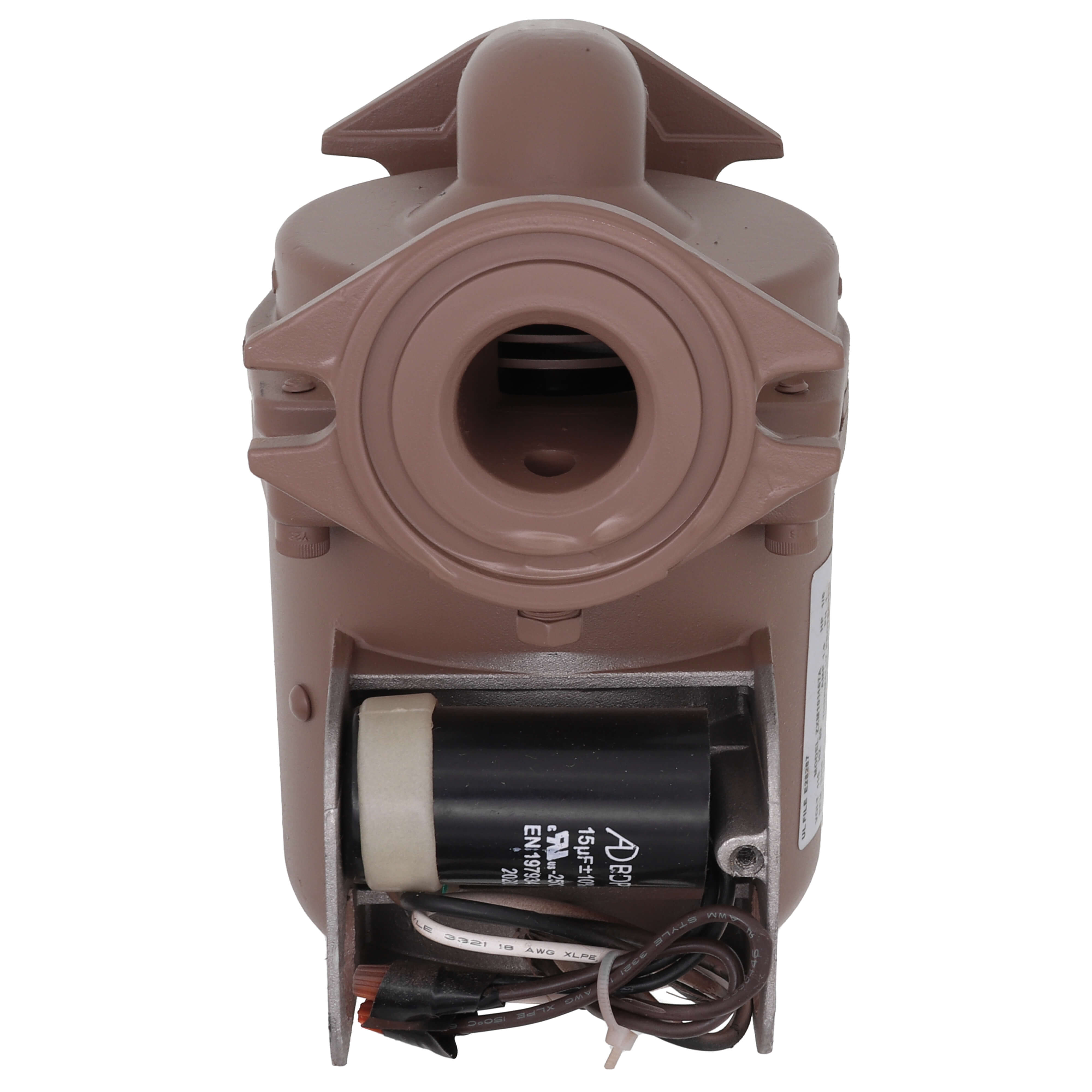

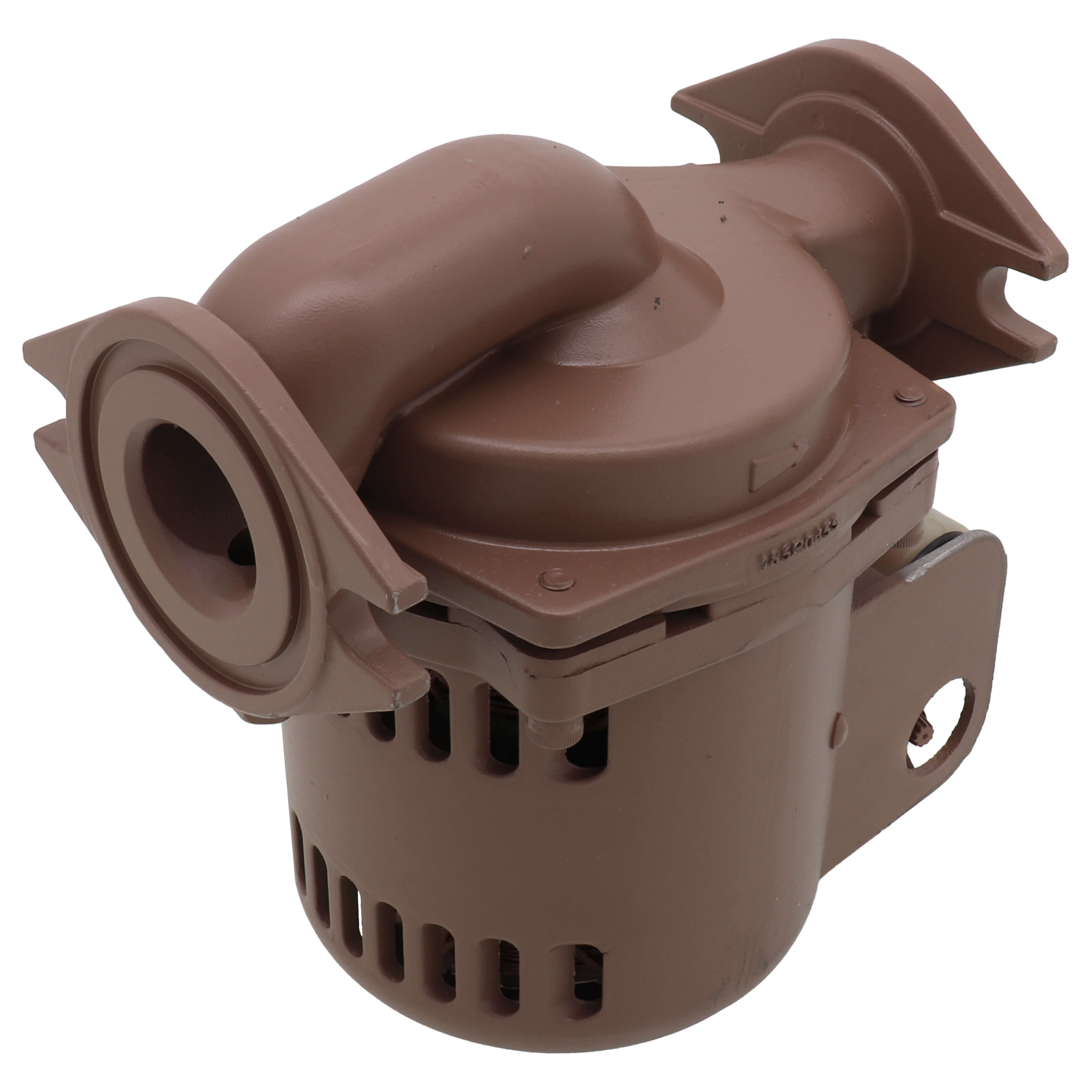

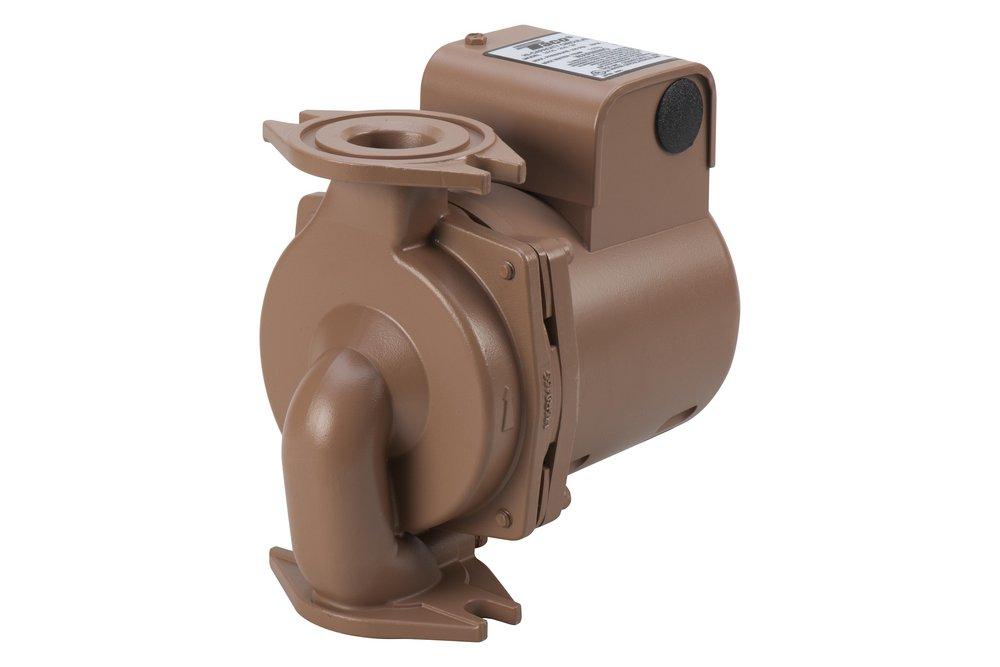

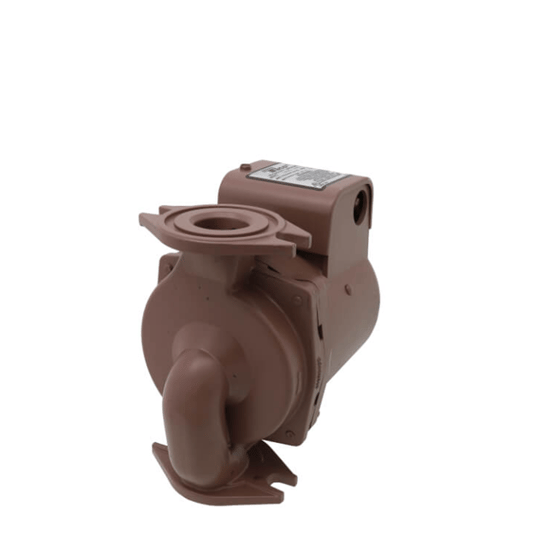

Taco 2400-20S-3P 1/6 HP 115V Stainless Steel Circulator Pump

Product Description

The TACO 2400-20S-3P is a high-capacity in-line circulator pump designed for quiet, efficient, and dependable operation. This 1/6 HP pump is suitable for hydronic heating, chilled water cooling, and hot water recirculation. It features a space-saving, close-coupled, maintenance-free motor with permanently lubricated, sealed-for-life bearings.

• Designed for quiet, efficient, and dependable operation
• Maintenance free motor with permanently lubricated, sealed-for-life bearings
• Suitable for hydronic heating, chilled water cooling, and hot water recirculation

Product Highlights

This stainless steel circulator pump is ideal for medium to high flow/head applications in residential and commercial hydronic systems.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 2400-20S-3P
• Country of Origin: United States

Technical Specifications

• Brand: Taco
• MPN: 2400-20S-3P
• Horsepower: 1/6 HP
• Voltage: 115V
• Speed: 3450 RPM
• Casing Material: Stainless Steel
• End Connection: Flange
• Seal Material: Carbon/Silicone Carbide
• Temperature: 40 to 225DEG F
• Maximum Pressure: 150PSI
• Flow Rate: 0 to 90GPM
• Head Range: 0 to 46FT
• Application: Hydronic Heating, Chilled Water Cooling and Hot Water Recirculation
• Taco Series: 2400 Series
• Model: 2400-20S
• Pump Construction: Stainless Steel-SS
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection: Flanged
• Flanges Included: No
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor Enclosure: ODP
• Working Pressure: 150 psi
• Max Temp: 225°F
• Potable Water: No
• RPM: 3450
• Type: Pump
• Hertz: 60
• Phase: 1
• Amperage: 1.9
• Material: Stainless Steel
• Max Head (Ft): 29
• Max Flow (GPM): 32
• Connection Type: Flanged x Flanged
• Temperature Range (F): 40°F - 225°F
• Item Number: 2400-20S-3P
• HP Rating: 1/6 hp
• Impeller Material: 30% Glass-Filled Noryl
• Maximum Head: 46 ft
• Mounting Type: Inline
• Pressure Rating: 150 psi Working
• Series: 2400
• Speed Rating: 3450 rpm
• Body Material: Stainless Steel
• Connection Size 1: 1-1/2 in
