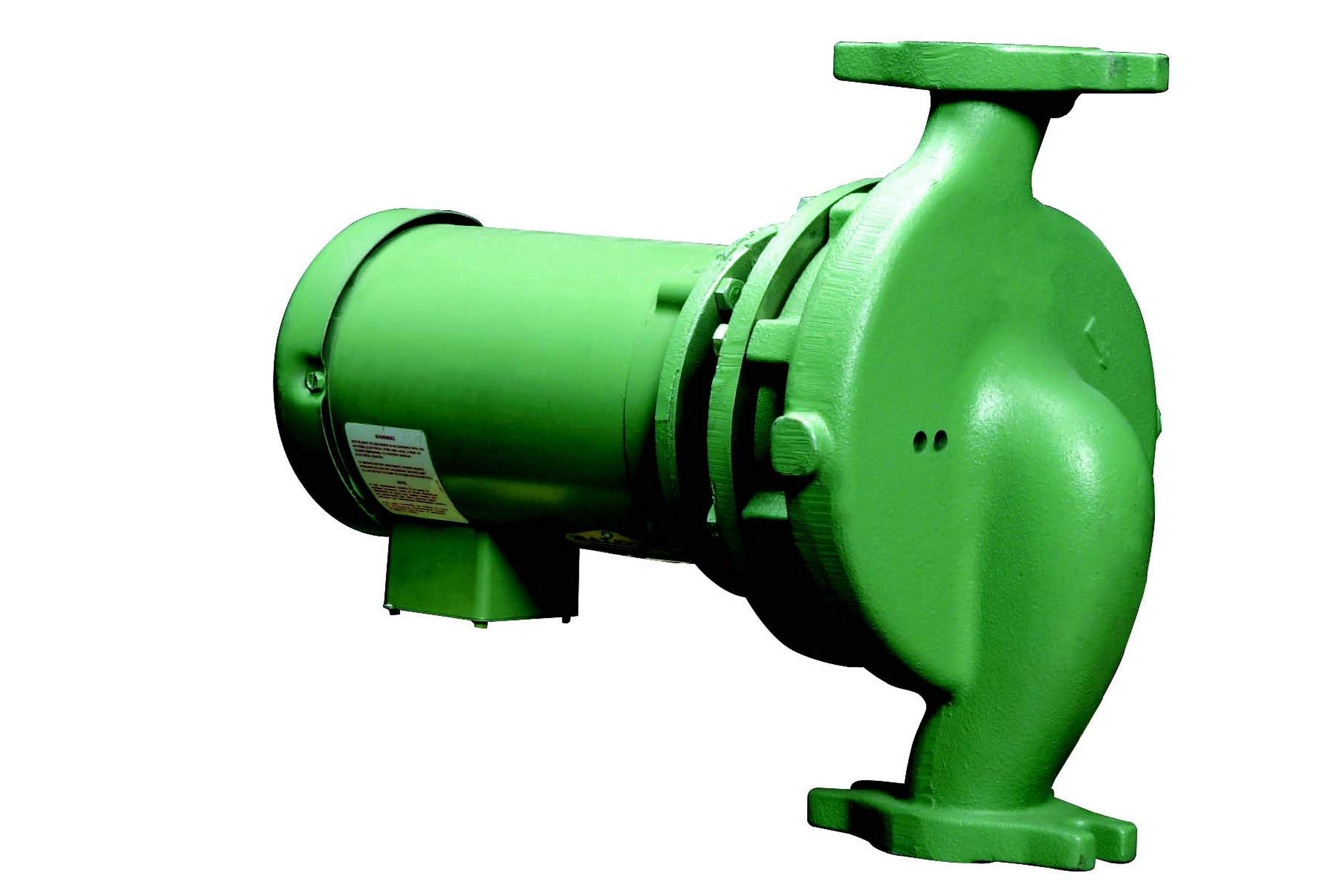

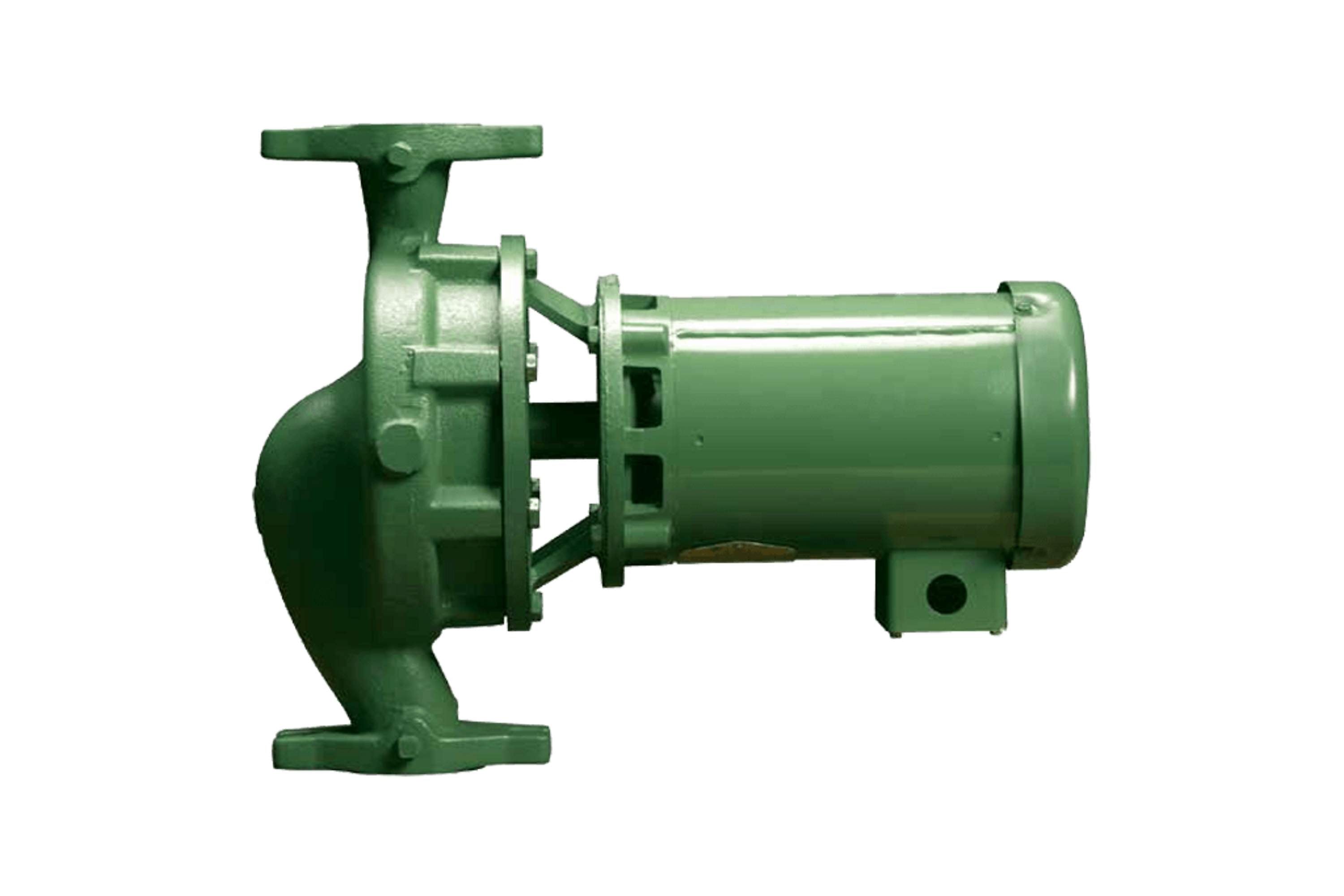

TACO 1941DAE10000000 Series 1900 Close-Coupled In-Line Pump

Product Description

The TACO 1941DAE10000000 is designed for efficient fluid movement in various applications. This Series 1900 close-coupled in-line pump has a suction and discharge size of two inches, making it ideal for medium to large systems. The pump features a stainless steel casing and impeller, ensuring durability and resistance to corrosion.

• Nominal impeller diameter of seven point nine inches.
• Maximum operating pressure of one hundred seventy-five psi.
• Maximum operating temperature of two hundred fifty degrees F.

Product Highlights

This pump is suitable for applications requiring reliable performance and longevity. It contains a ceramic seat, carbon rotor, and EPT rubber seal, which enhance its durability under varying conditions.

Product Information

Standard Information

• Manufacturer: Taco
• Part Number: 1941DAE10000000

Technical Specifications

• Model: 1941
• Suction and Discharge Size: 2 inches (50 mm)
• Impeller Material: Stainless Steel
• Casing Material: Stainless Steel
• Bracket Material: Cast Iron
• Wear Ring Material: Bronze
• Seal Material: Ceramic seat, carbon rotor, and EPT rubber
• Maximum Operating Temperature: 250 degrees F
• Frame Size: 56C
