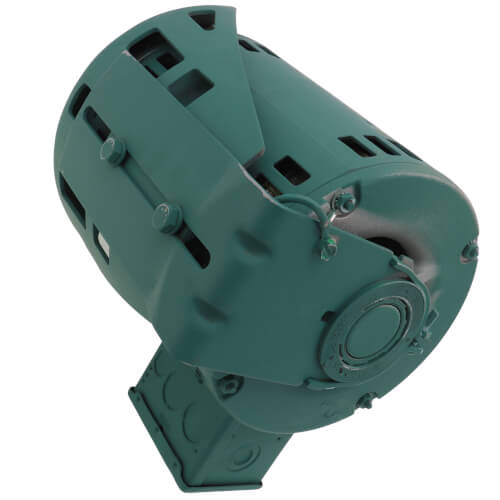

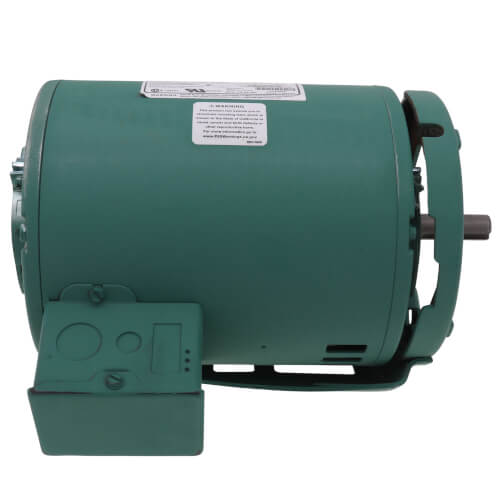

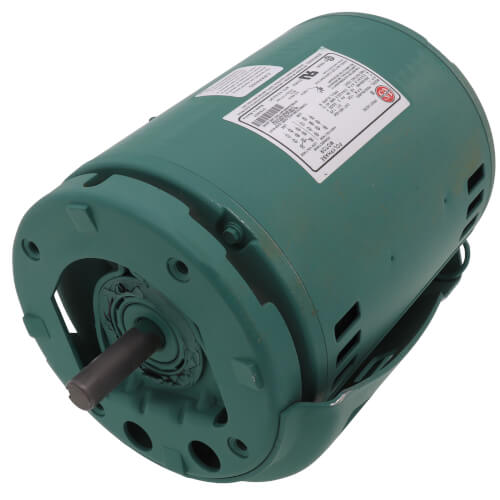

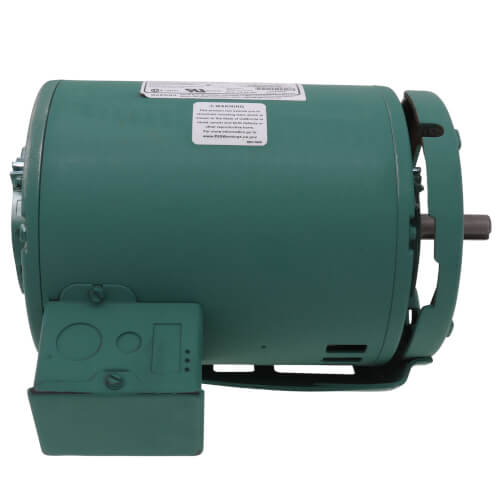

Taco 1661-024RP 3-Phase Motor Assembly for 1600 Series 1 HP 200-230/460V Replaces 138-142RP, 138-148RP

Product Description

The TACO 1661-024RP is a 3-Phase Motor Assembly designed for the 1600 Series. This 1 HP motor operates at 200-230/460V and features an ODP enclosure. It functions as a pump part, specifically for 1600 Series systems. This replacement motor with bracket also repairs 121-138 Series (model 138) and 1600 Series in-line circulator pumps, including models 1615, 1616, 1619, 1634, and 1635.

• 3-Phase operation with 200-230/460V input voltage
• 1 HP motor with 1725 RPM
• Designed for 1600 Series and repairs 121-138 Series in-line circulator pumps

Product Highlights

This TACO 1661-024RP motor assembly is a 1 HP, 3-phase replacement part for 1600 and 121-138 Series circulator pumps.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-1661-024RP

Technical Specifications

• Input Voltage: 200-230/460V
• Horsepower: 1 HP
• Frequency: 60 Hz
• Phase: Three Phase
• Motor Enclosure: ODP
• Product Type: Pump Part
• Part Type: Motor
• Compatible Series: 1600 Series
• Model: 1661-024
• Motor RPM: 1725 RPM
• Motor Frame Size: 56
• Repairs Pump Models: 138, 1615, 1616, 1619, 1634, 1635
• Replaces Part Numbers: 138-142RP, 138-148RP
