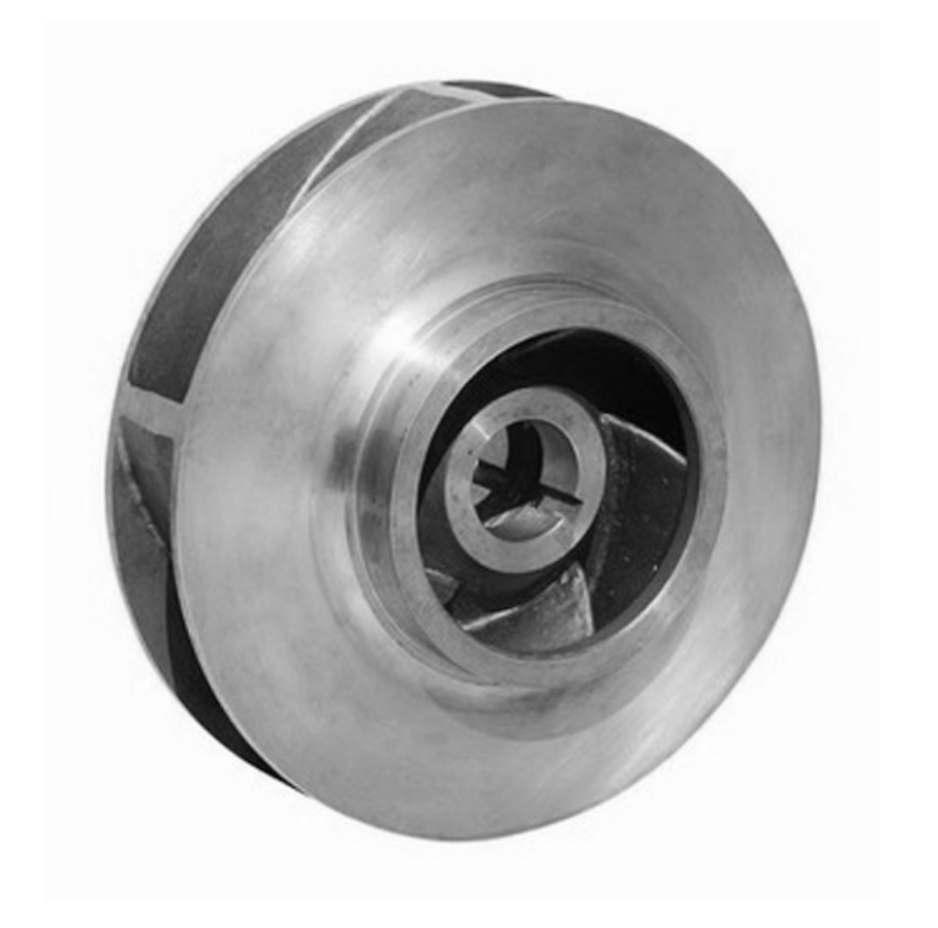

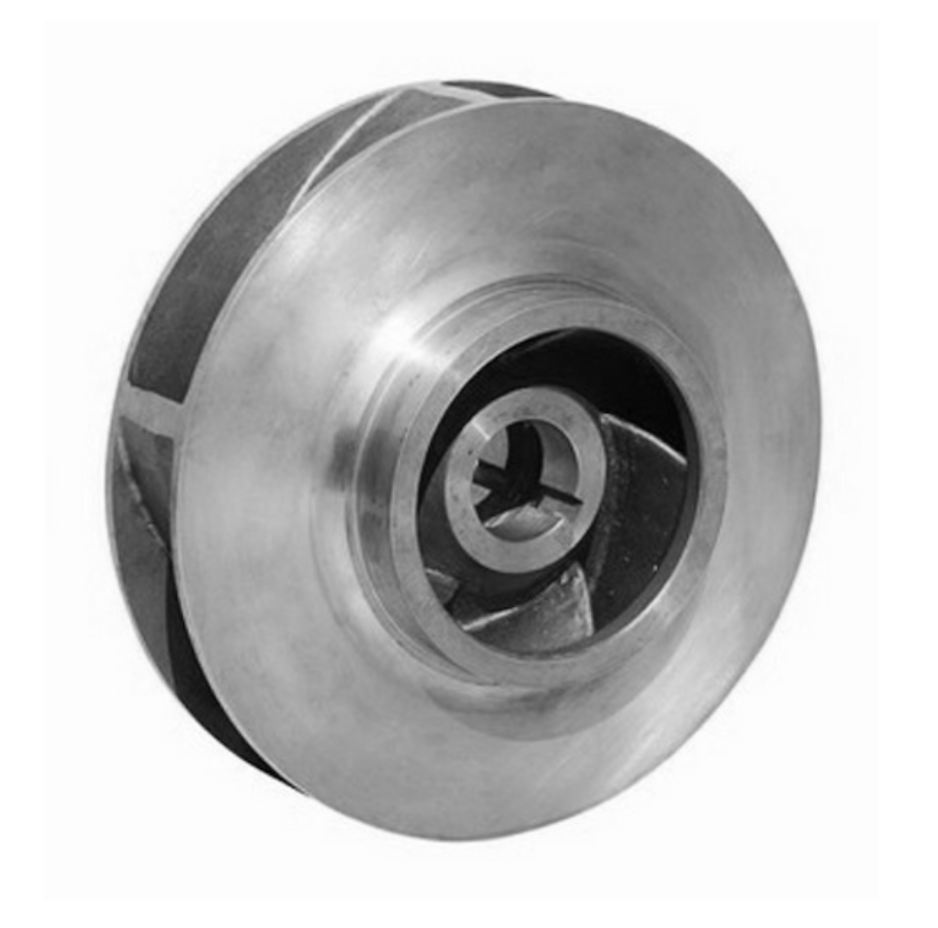

Taco 1640-001SRP stainless steel impeller assembly 7.9 inch

Product Description

The TACO 1640-001SRP is a 7.9-inch stainless steel impeller assembly. Designed for Taco 1600 Series In-Line Pumps, which operate with a flow range of 20-200 GPM and head range of 10-68 ft, it features a replaceable, permanently-lubricated bearing cartridge. This exclusive 1600 cool-bearing cartridge design isolates the bearing from system temperatures up to 250°F (standard), extending bearing life and ensuring reliable performance for pump applications.

• Features a replaceable, permanently-lubricated bearing cartridge.
• Exclusive 1600 cool-bearing cartridge design extends bearing life.
• Constructed from 7.9-inch stainless steel for durability.

Product Highlights

Durable 7.9-inch stainless steel impeller assembly with extended bearing life for 1600 Series In-Line Pumps.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 1640-001SRP

Technical Specifications

• MPN: 1640-001SRP
• Condition: New
• Series: 1600
• Type: Replacement Part (Impeller)
• Flow Range: 20 – 200 GPM
• Head Range: 10 – 68 ft
• Working Pressure: 175 PSI (cold water), 125 PSI (rated temperature)
• Temperature: 250°F (Standard), 300°F (Hi-Temp Seal)
• HP: 0.25 – 3
• Pump Connection Sizes: 1.5 – 2 inches
