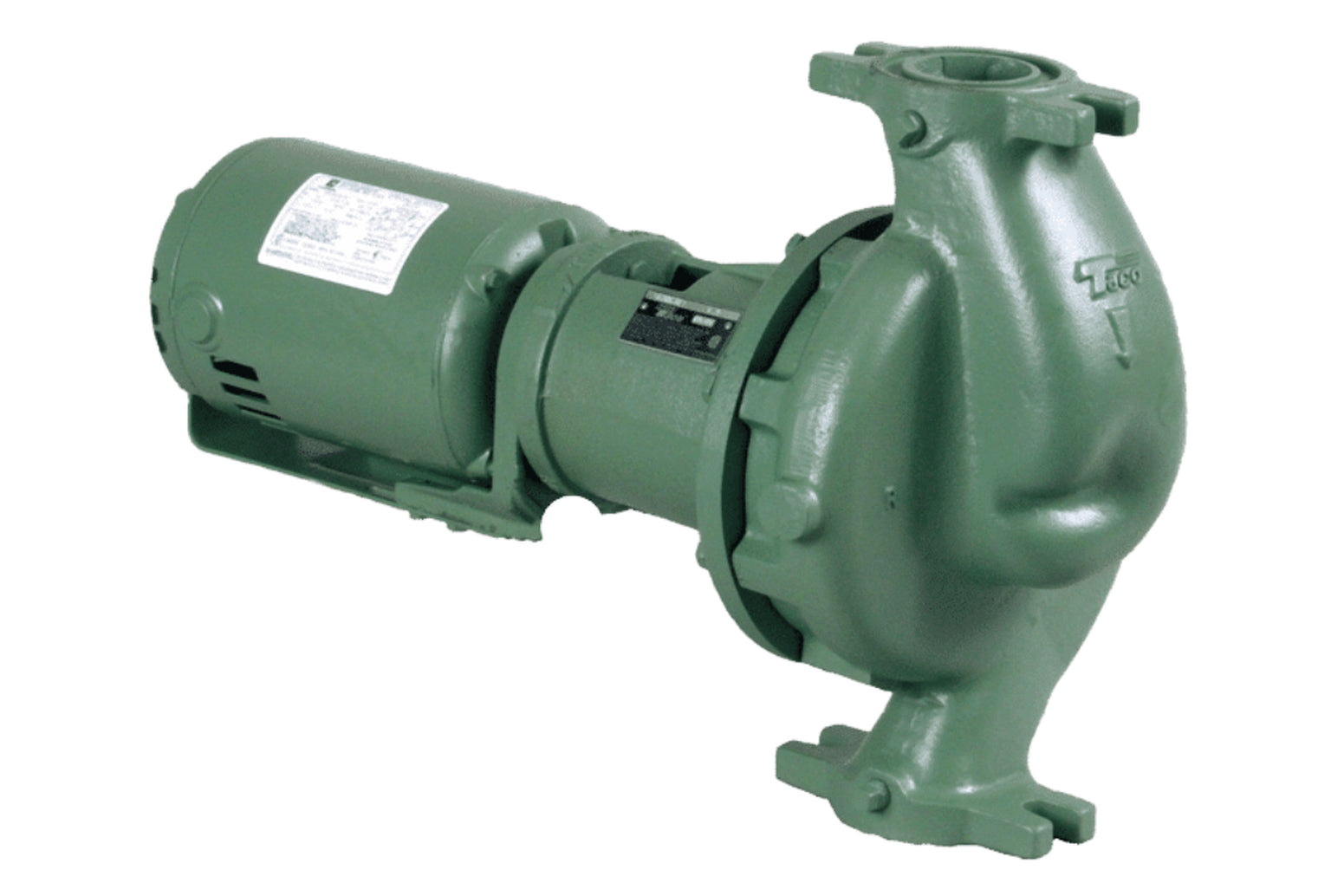

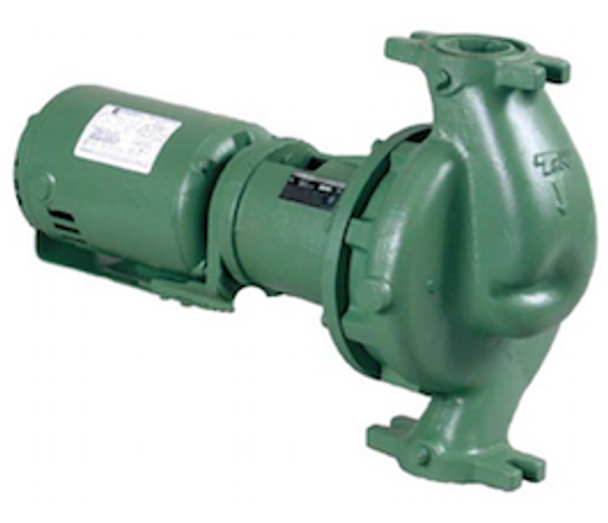

Taco 1638E3E31638012 Taco 1638E In-Line Centrifugal Pump 2 HP

Product Description

The Taco 1638E is an in-line centrifugal pump with MPN 1638E3E31638012. It is designed for use in closed loop hydronic heating and cooling systems. The pump features a durable cast iron casing paired with a stainless steel impeller, enabling efficient operation for applications requiring high GPM flow. The rear pull-out design allows for easy servicing without the need to disturb existing piping. It is powered by a two horsepower motor that runs at one thousand seven hundred fifty RPM, suitable for either one hundred fifteen volt or two hundred thirty volt single-phase power. The included flanges feature a connection size of two inches.

• Constructed with cast iron casing and stainless steel impeller.
• Rear pull-out design for easy maintenance.
• Equipped with a 2 HP motor operating at 1750 RPM.

Product Highlights

This pump is ideal for residential and commercial HVAC applications, enhancing the efficiency of hydronic systems.

Product Information

Standard Information

• Brand: Taco
• Series: 1600 Series

Technical Specifications

• MPN: 1638E3E31638012
• Pump Type: Centrifugal
• Construction: Cast Iron-SSF
• Mounting: In-Line
• Connection Size: 2 inches
• Flanges Included: Yes
• Motor Horsepower: 2 HP
• Motor RPM: 1750
• Voltage: 115/230V
• Phase: 1 Phase
• Hertz: 60 Hz
• Enclosure: ODP
• Impeller Size: 6.90 inches
• Working Pressure: 175 psi
• Maximum Temperature: 250°F
• Potable Water: No
• Body Material: Cast Iron
