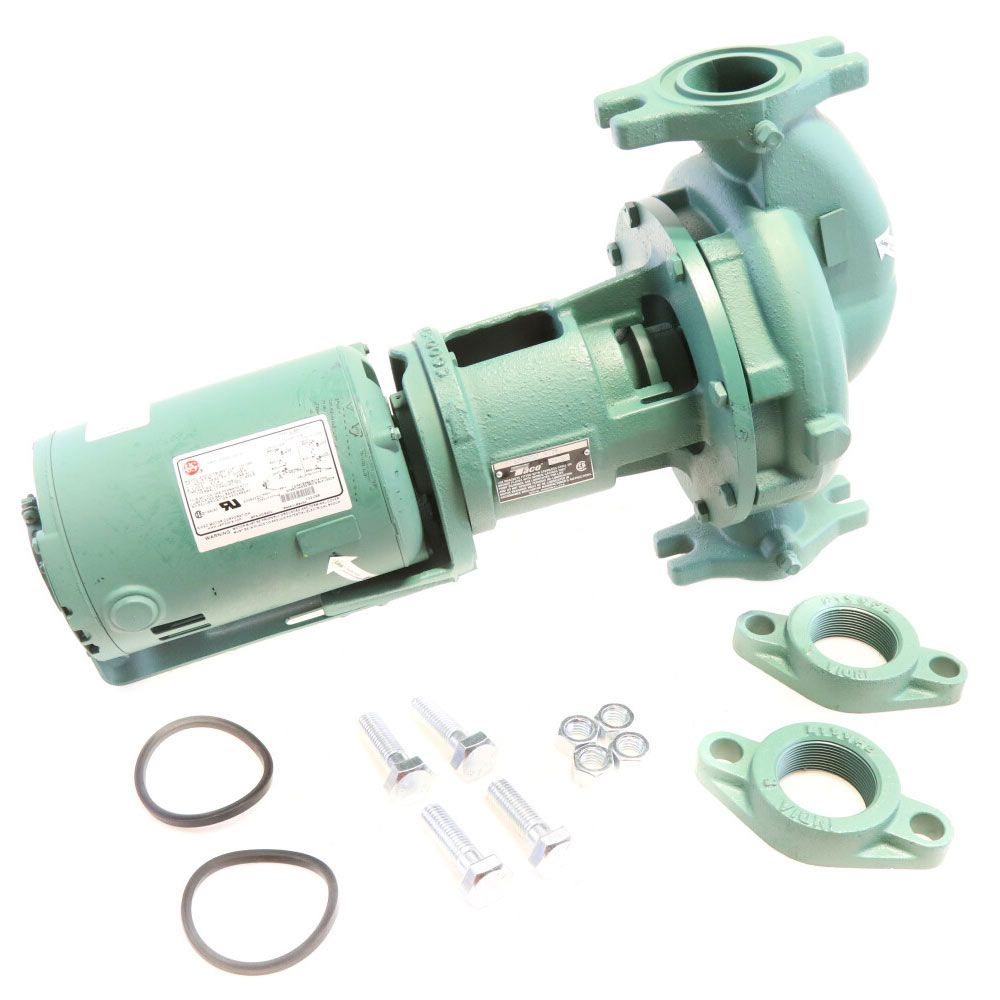

Taco 1630EAE10132096 In-Line Pump Cast Iron Flange 1/2HP 115/230V

Product Description

The Taco 1630EAE10132096 In-Line Pump is engineered with a cast iron construction and a stainless steel impeller ensuring durability and high efficiency. Ideal for closed loop systems, this pump is perfect for hydronic heating and cooling in commercial applications. Features include a flange size of 2 inches and a motor of 1/2 HP.

• Equipped with a cool running bearing cartridge for extended lifetime.
• Easy servicing due to the rear pull-out design without disturbing system piping.
• Innovative unitized mechanical seal for quick and easy replacement.

Product Highlights

Featuring a single phase, resilient-mounted motor with 115/230V and a rotation speed of 1750 RPM. Includes flanges and is maintenance-free thanks to permanently sealed bearings.

Product Information

Standard Information

• Brand: Taco
• MPN: 1630EAE10132096

Technical Specifications

• Pump Type: Centrifugal, In-Line
• Motor Voltage: 115/230V
• Flange Size: 2 inches
• Weight: 91 lbs
• Max Temperature: 250 degrees Fahrenheit
• Working Pressure: 175 psi
• Motor HP: 1/2 HP
• Impeller Size: 4.90 inches
