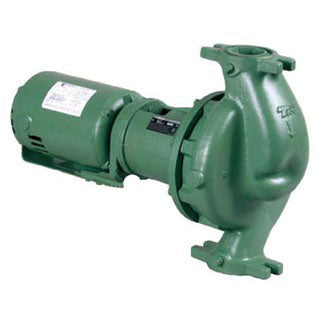

TACO 1615D Cast Iron Circulator Pump

Product Description

The TACO 1615D is an in-line circulator pump. It is suitable for cooling towers, air conditioning systems, and heating systems. The product features a cast iron casing and a 304 stainless steel impeller. This pump can handle fluids up to two hundred fifty degrees Fahrenheit and pressures up to one hundred seventy-five PSI.

• Flanged connections with a suction and discharge size of one and one-half inches.
• Powered by a resilient mounted motor with overload protection and operating at one thousand seven hundred fifty RPM.
• Includes a replaceable, permanently lubricated ball bearing cartridge.

Product Highlights

Features tapped suction and discharge ports. Designed for easy maintenance and reliability.

Product Information

Standard Information

• Manufacturer Name: Taco
• Type: In-Line

Technical Specifications

• Suction Size: 1-1/2 inches
• Discharge Size: 1-1/2 inches
• End Connection: Flanged x Flanged
• Overall Dimensions: 22-5/8 inches Length x 16-1/8 inches Height
• Flow Rate: 7 to 73 GPM
• Discharge Head: 8 to 43 feet
• Casing Material: Cast Iron
• Shaft Material: Hardened Alloy Steel
• Impeller Material: 304 Stainless Steel
• Impeller Design: Closed, Dynamically Balanced
• Warranty: 1 Year from Date of Start-Up / 18 Months from Date of Shipment
• Shaft Seal Details: 2-Piece Standard Mechanical Seal
• Power Rating: 1/3, 1/2, 3/4, 1 HP
• Input Supply Rating: 200/230/460 Volt AC at 60 Hertz 1 Phase
• Speed Rating: 1750 RPM
• Temperature Rating: 250 Degrees Fahrenheit
• Pressure Rating: 175 PSI
• Motor Type: Resilient Mounted, Overload Protection
• Application: Cooling Tower, Air Conditioning, Golf Courses, and more
• Coupling Type: Vibration Dampening
• Coupling Material: Non-Ferrous
