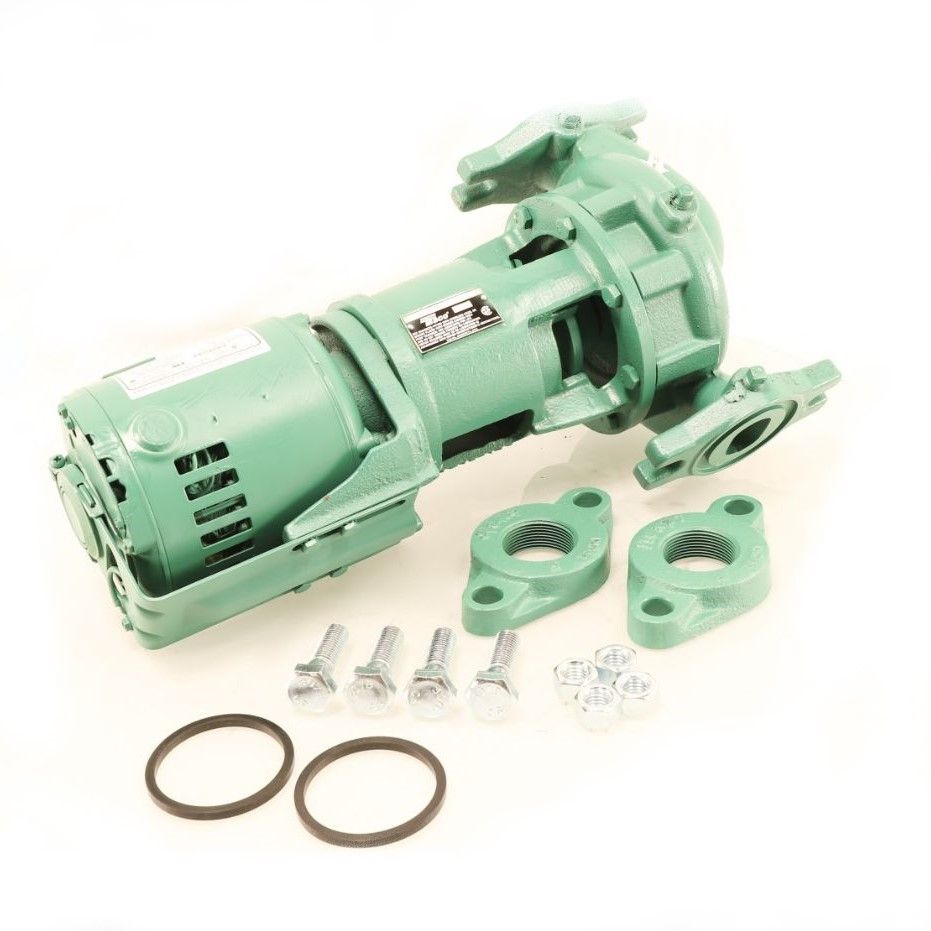

TACO 1610EAE80131143 Taco 1610E 1600 Series In-Line Pump Cast Iron 1-1/2 Inch Flg 1/3HP 115v 1Ph

Product Description

The Taco 1610E 1600 Series In-Line Pump, model number 1610EAE80131143, is designed for hydronic heating and cooling in commercial settings. This pump is ideal for applications requiring high GPM flow and head capabilities.

• Features an enclosed stainless steel impeller for longevity and efficiency.
• Equipped with a flexible coupler to reduce vibration and noise.
• Includes easy-to-service pull-out design without disturbing system piping.

Product Highlights

This pump is known for its maintenance-free operations, thanks to permanently sealed bearings and a cool running bearing cartridge that extends the lifespan of the bearings. The Taco 1610E features a robust cast iron construction fitted with stainless steel, making it durable and reliable for intense commercial use.

Product Information

Standard Information

• Brand: Taco
• MPN: 1610EAE80131143

Technical Specifications

• Pump Type: In-Line Centrifugal
• Motor Power: 1/3 HP
• Motor RPM: 1750 RPM
• Motor Voltage: 115V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor Enclosure: ODP
• Impeller Size: 4.75 inches
• Working Pressure: 175 psi
• Max Temperature: 250°F
• Flanges Included: Yes
