TACO 121-401 Motor 1/4 HP 230/460/60/3V

Product Description

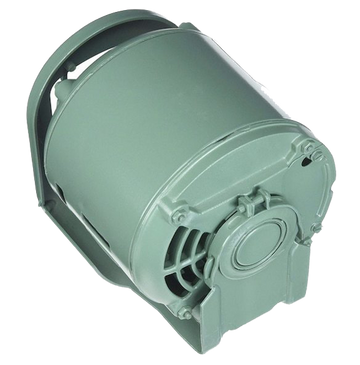

The TACO 121-401 is a replacement motor suitable for various pump applications, particularly with the TACO 1900 Series. This motor has a power output of 1/4 HP with a running speed of 1750 RPM. It operates at a voltage of 230/460/60/3 with functionality at 208V. The motor is enclosed in an Open Drip Proof (ODP) casing and conforms to a 56 C-face frame design without feet. The motor rotates counter-clockwise (CCW) when viewed from the shaft end and is rated for an ambient temperature of forty degrees Celsius, with a service factor of 1.15.

• 1/4 HP motor with 1750 RPM capabilities.
• Compatible with 230/460/60/3 voltage; usable at 208V.
• Constructed with a 56 C-face frame and ODP enclosure.

Product Highlights

The TACO 121-401 is reliable for industrial use, providing consistent performance in pump operations.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 121-401

Technical Specifications

• Series: Series 121
• Type: Replacement Part (Motor)
• Horsepower: 1/4 HP
• Voltage: 230/460/60/3
• RPM: 1750
• Frame Size: 56 C-face
• Enclosure: ODP
• Rotation: CCW Rotation As Seen From Shaft End
• Ambient Temperature: 40C
• Service Factor: 1.15
