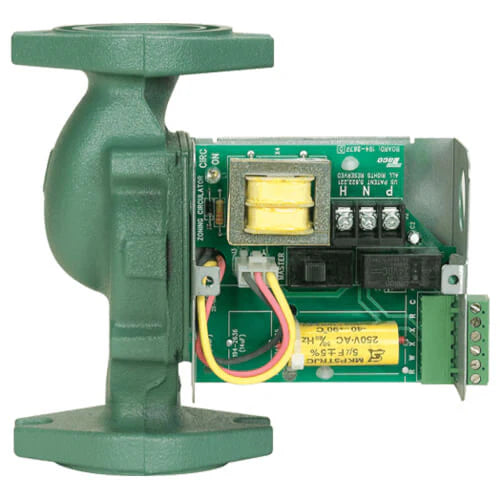

Taco 009-ZF5-2 1/8 HP 115V Zoning Circulator Pump

Product Description

The Taco 009-ZF5-2 zoning circulator pump is a reliable solution for residential and light commercial applications. With its 1/8 horsepower motor and 115V power source, it ensures efficient circulation of hot or chilled water in hydronic systems.

• Universal thermostat compatibility
• Durable cast iron construction
• Compact design for easy installation

Product Highlights

This Taco zoning circulator pump is easy to install in tight spaces and offers leak-free operation due to its mechanical seal. Its 1/8th horsepower motor is suitable for most zoning applications, improving system efficiency by circulating water only where it is needed and reducing energy consumption.

Product Information

Standard Information

• Manufacturer: Taco
• Part Number: 009-ZF5-2

Technical Specifications

• Voltage: 115V
• Horsepower: 1/8
• Amperage: 1.4
• Material: Cast Iron
• Max Head: 35 feet
• Max Flow: 10 GPM
• Connection Size: 1-1/4 inches, 1-1/2 inches, 3/4 inches, 1 inch
• Connection Type: Flanged x Flanged
• RPM: 3250
• Hertz: 60
• Phase: 1
• Temperature Range: 40°F to 230°F
• Max Pressure: 125 PSI
