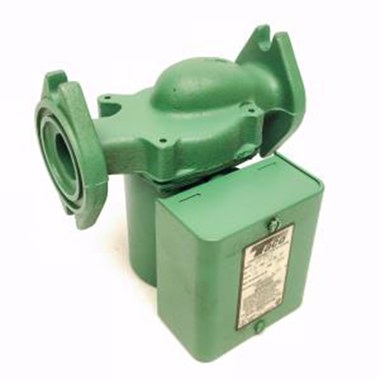

Taco 007-Z-F5 Circulator Pump 00 Inline Cartridge Cast Iron Flange Zoning Circulator 1 Stage 1/25 Horsepower Stainless Steel

Product Description

The Taco 007-Z-F5 is an inline circulator pump designed for HVAC and industrial applications. It features a robust cast iron flange and stainless steel parts for durability and corrosion resistance.

• 1/25 horsepower motor for efficient performance.
• Flow rate from 0 to 20 GPM to suit various needs.
• Maximum pressure of 125 PSI for effective fluid circulation.

Product Highlights

This pump is ideal for residential zoning, indirect hot water heating, and adding zones to existing systems.

Product Information

Standard Information

• Brand: Taco
• MPN: 007-Z-F5

Technical Specifications

• Speed: 3250 RPM
• Stages: 1STG
• Horsepower: 1/25 HP
• Flow Rate: 0 to 20 GPM
• Head Range: 0 to 11 FT
• Maximum Pressure: 125 PSI
• Casing Material: Cast Iron
• Seal Material: EPDM
• Cartridge Type: Stainless Steel
• Motor Type: Permanent Split Capacitor Impedance Protected 115/60/1
• Temperature Range: 40 to 230 DEG F
• Application: Larger residential zones and prioritizing under-sized zones
• Shipping Weight: 8.000 LBS
