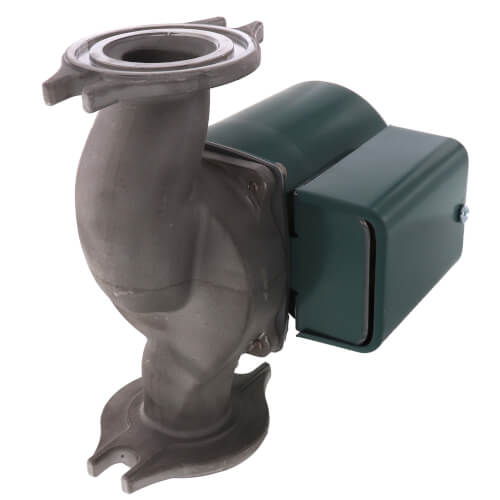

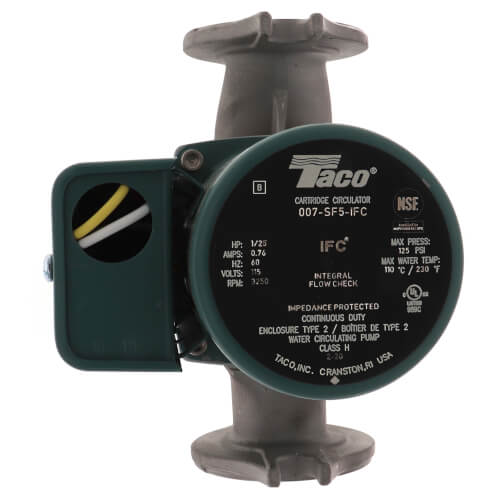

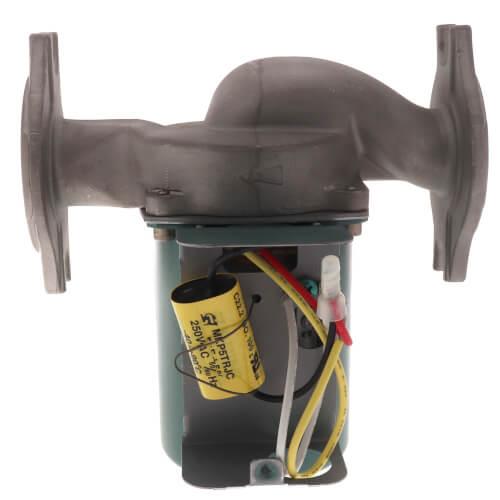

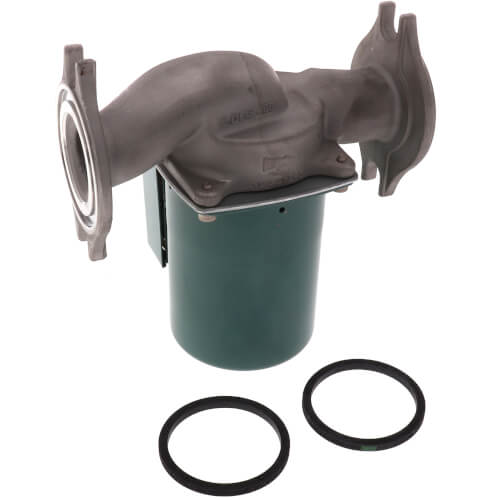

Taco 007-SF5-IFC Hot Water Circulator Pump 1/25 HP

Product Description

The Taco 007-SF5-IFC is a stainless steel circulator pump designed for efficient hot water circulation. With a horsepower of 1/25, this pump operates on a voltage of one hundred fifteen volts. The integral flow check helps streamline installation and improve the overall performance of HVAC systems.

• Removable Integral Flow Check enhances pump operation
• Designed to prevent reverse flow and reduce installation costs
• Durable stainless steel construction offers reliability

Product Highlights

This circulator pump is ideal for hydronic heating systems, hydro-air fan coils, radiant heating, and domestic water recirculation.

Product Information

Standard Information

• Brand: Taco
• Model Number: 007-SF5-IFC

Technical Specifications

• Horsepower: 1/25 hp
• Voltage: 115V
• Flow Rate: 17 GPM
• Maximum RPM: 3250
• Material: Stainless Steel
• Maximum Pressure: 125 PSI
• Temperature Range: 40°F to 230°F
• Connection Type: Flanged x Flanged
• Connection Size: 3/4, 1, 1-1/4, 1-1/2 inches
