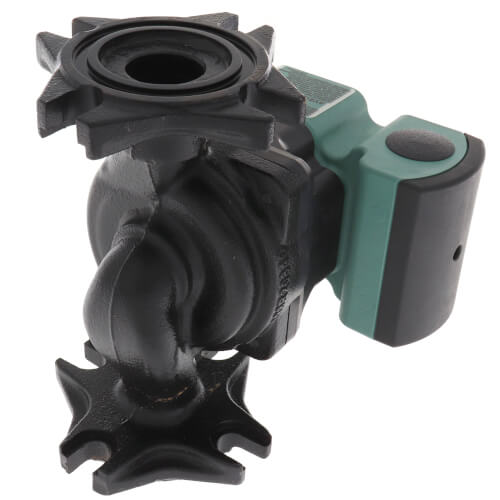

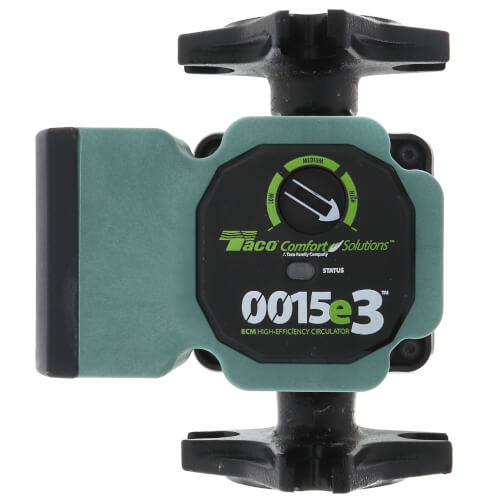

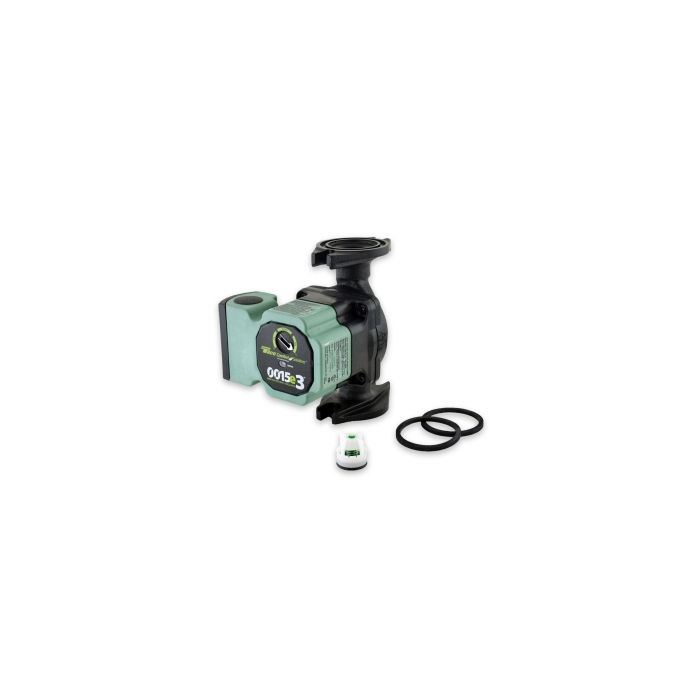

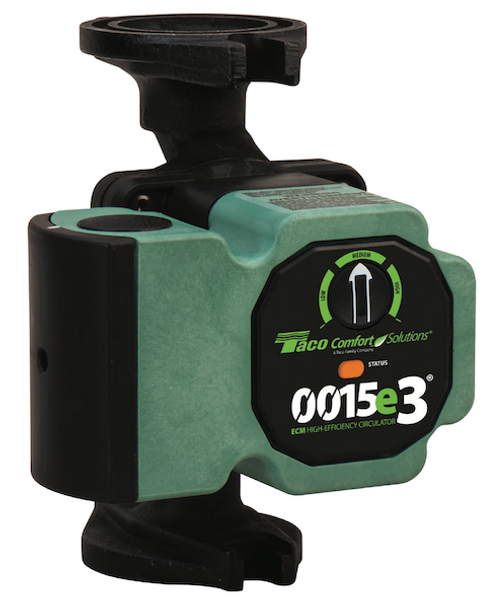

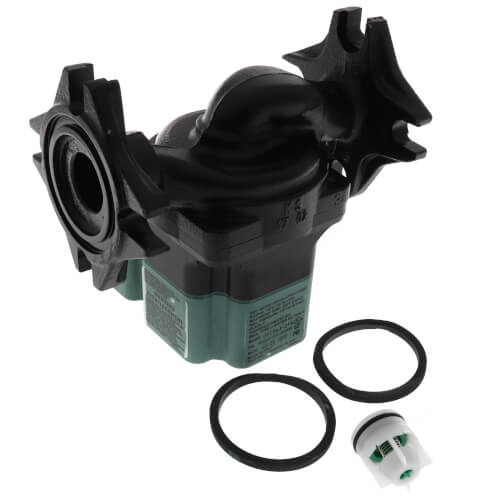

Taco 0015E3-2F4 ECM High-Efficiency Wet Rotor Circulator Pump

Product Description

The Taco 0015E3-2F4 is a variable speed wet rotor circulator designed for hydronic systems. It features an ECM permanent magnet motor for increased efficiency. This pump is suitable for applications where zoned circulators or zone valves are utilized.

• Three speed settings: Low (5 feet head), Medium (10 feet head), High (18 feet head), with a maximum flow rate of sixteen gallons per minute.
• Easy wiring with included dual electrical knockouts and stranded wire leads measuring six inches.
• Compatible with Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operations.

Product Highlights

This pump operates quietly and is constructed of durable cast iron, offering double insulation and requires no ground wire during installation.

Product Information

Standard Information

• Type: Variable Speed Pump
• Material: Cast Iron

Technical Specifications

• Max Flow (GPM): 16
• Max Head (Feet): 18
• Amperage: 0.54
• Max Pressure (PSI): 125
• Voltage: 120V
• Width: 5.125 inches
• Model: 0015E3-2F4
• Watts: 44
• Connection Size: 4 Bolt Flange
• Flow Range (GPM): 0-16
• Head Range (Feet): 0-18
• Phase: Single
• Hertz: 60
• UPC / GTIN: 190145186070
• Manufacturer: Taco
