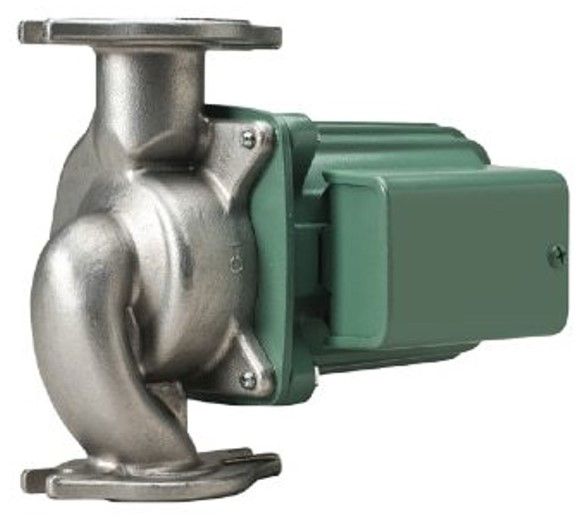

Taco 0012-SF4-IFC Stainless Steel Circulator Pump with Integral Flow Check 1/8 HP

Product Description

The Taco 0012-SF4-IFC is a stainless steel circulator pump designed with an integral flow check (IFC) for effective zoning in high flow and medium head applications. Ideal for large residential and light commercial systems, this pump is suitable for open loop systems.

• Integral flow check
• Field serviceable cartridge
• Optional variable speed control

Product Highlights

Designed to reduce installation costs and improve system performance, the Taco 0012-SF4-IFC circulator pump offers reliable, maintenance-free operation with low power consumption.

Product Information

Standard Information

• Brand: Taco
• Model: 0012-SF4-IFC
• Category: Circulator Pump

Technical Specifications

• Voltage: 115V
• Amperage: 1.33
• Material: Stainless Steel
• Horsepower: 1/8
• Max Head: 13 feet
• Max Flow: 42 GPM
• Connection Size: 1-1/2 inches
• Connection Type: Flanged x Flanged
• RPM: 3250
• Temperature Range: 40°F to 230°F
• Pressure: 125 PSI
• Warranty: 3 Years
