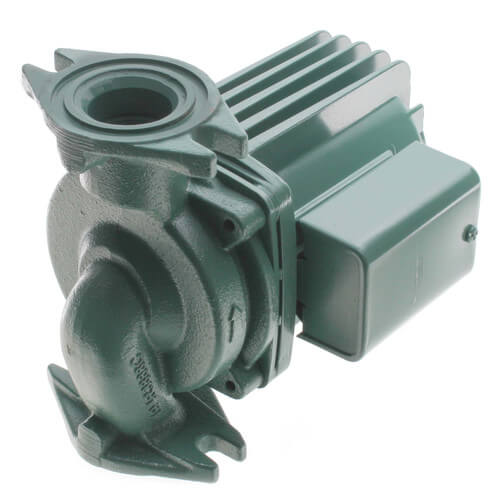

Taco 0011-F4 Cast Iron Cartridge Circulating Pump 1/8 HP

Product Description

The Taco 0011-F4 is a cast iron cartridge circulating pump with one eighth horsepower, designed for residential and light commercial applications. This pump is suitable for closed-loop hydronic heating and chilled water cooling systems. Its compact size and low power consumption make it an efficient choice for high-pressure drop scenarios.

• Flow range of zero to thirty-one gallons per minute.
• Can handle fluid temperatures from forty to two hundred thirty degrees Fahrenheit.
• Universal flange-to-flange dimensions for easy replacement of similar models.

Product Highlights

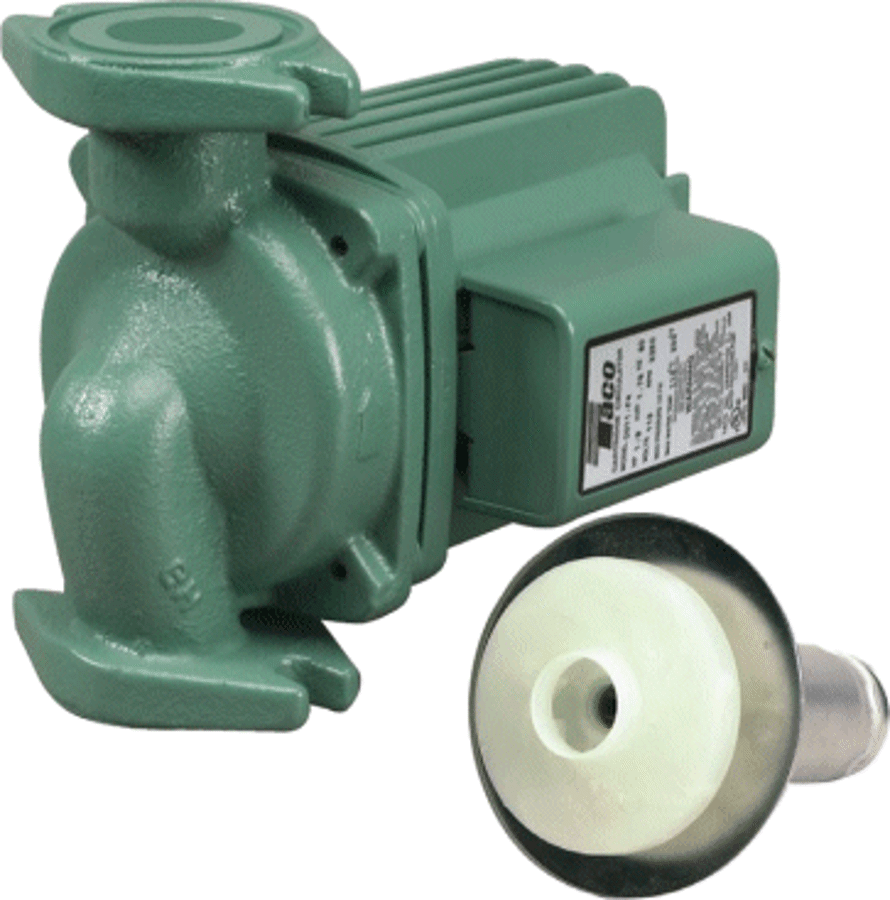

The Taco 0011-F4 features a unique replaceable cartridge design for easy servicing without needing to replace the entire unit. This pump includes a self-lubricating mechanism and operates maintenance-free, suitable for demanding applications.

Product Information

Standard Information

• Brand: Taco
• MPN: 0011-F4

Technical Specifications

• Horsepower: 1/8 hp
• Voltage: 115V
• Amperage: 1.76
• Maximum Flow Rate: 30 GPM
• Dimensions: 5.5 x 7.5 x 6.5 inches
• Material: Cast Iron
• Connection Size: 3/4, 1, 1-1/4, 1-1/2 Flanged
• Max. Head: 31 feet
• Weight: 9.3 lbs
