Taco 0011-CF Genie circulator 1/8 HP (3/4 in iso flanges) 0011-010RP

Product Description

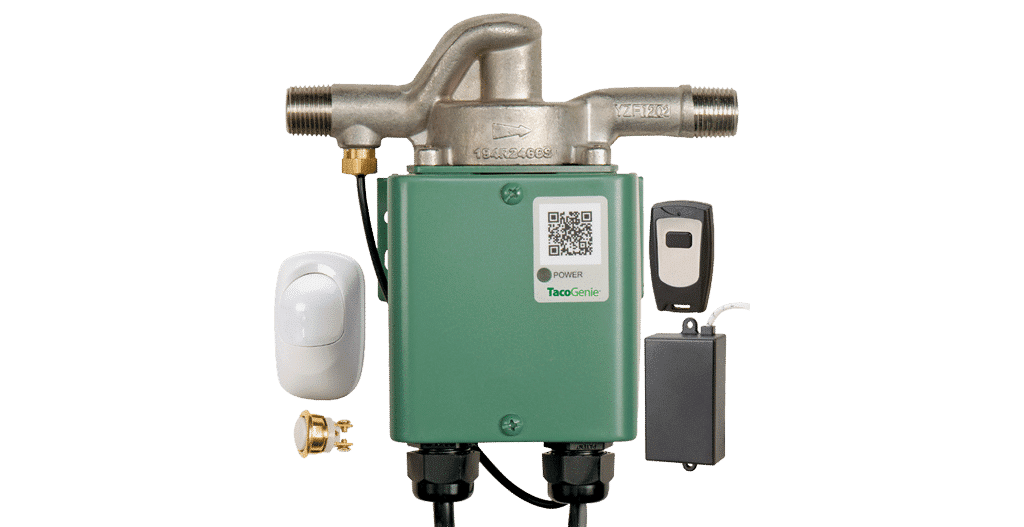

Taco 0011-CF is a TacoGenie hot water recirculation pump designed to provide on-demand hot water at fixtures. The flanged circulator features 3/4-inch isolation flanges, a 1/8 HP motor running at 115 V and 3250 RPM, and stainless steel construction. It delivers up to 8 GPM and 26 ft of head, operates at 1.76 A, and uses a heat sensor and control board to stop when line water is hot.

• Flanged circulator with 3/4 in isolation flanges (Flanged x Flanged); connection size 3/4 in
• 1/8 HP motor, 115 V, 60 Hz, single phase, 3250 RPM, 1.76 A; max flow 8 GPM, max head 26 ft
• Stainless steel construction; temperature range 40°F to 230°F; activation via pushbutton, optional wireless remote or hard-wired motion sensor

Product Highlights

TacoGenie 0011-CF hot water recirculation pump — 1/8 HP, 115 V, 3/4 in flanged isolation connections, 8 GPM/26 ft

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 0011-CF

Technical Specifications

• Brand: Taco
• Model / MPN: 0011-CF
• Type: Hot water recirculation pump
• Horsepower: 1/8 HP
• Input Voltage: 115 V
• Frequency: 60 Hz
• Phase: Single phase
• RPM: 3250
• Output Current: 1.76 A
• Connection Size: 3/4 in
• Connection Type: Flanged with 3/4 in isolation flanges (Flanged x Flanged)
• Material: Stainless steel
• Application: Domestic hot water recirculation / heating
• Max Flow: 8 GPM
• Flow Range: 0-8 GPM
• Max Head: 26 ft
• Head Range: 0-26 ft
• Max Pressure: 125 PSI
• Temperature Range: 40°F to 230°F
• Weight: 14.0 lbs
• Replacement Parts: 0011-010RP, 009-018RP, 007-007RP, 920-007RP
• Certifications / Compliance: Meets California Title 24
