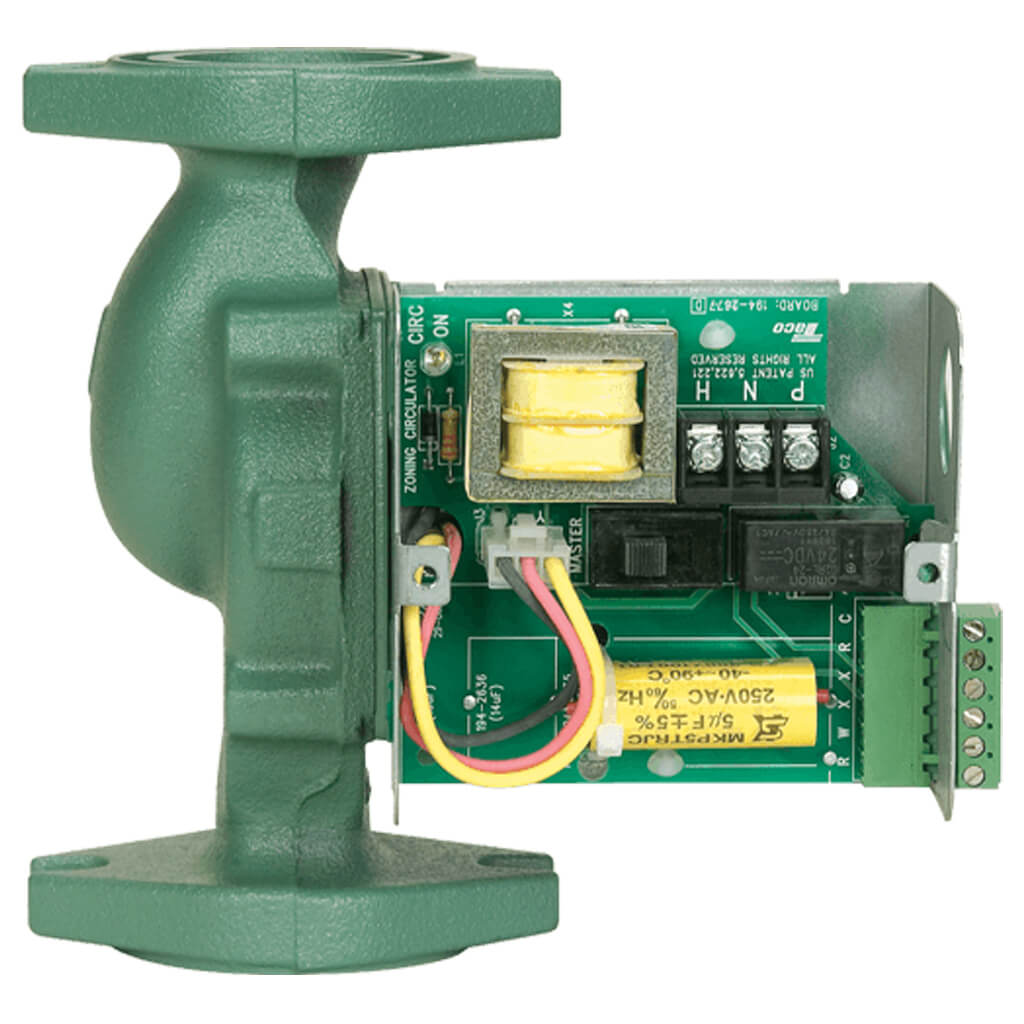

Taco 0010-ZF3-1IFC 0010 Cast Iron Priority Zoning Circulator w/ Integral Flow Check 1/8 HP

Product Description

The Taco 0010-ZF3-1IFC is a cast iron priority zoning circulator. This unit demonstrates universal thermostat compatibility and is thermostat ready. It can operate in conjunction with other circulators or zone valves. The circulator comes in various sizes, ranging from 003 to 0014, ensuring reliability across applications.

• Compatible with multiple thermostat systems
• Designed for use with other circulators or zone valves
• Available in a variety of sizes for versatile applications

Product Highlights

This circulator is equipped with a snap-in PC board for easy installation. It features high and low voltage strips and a removable low-voltage terminal strip that simplifies the wiring process. The LED power light enhances visibility for operation monitoring.

Product Information

Standard Information

• Brand: Taco
• Type: Pump

Technical Specifications

• Horse Power: 1/8
• Voltage: 115V
• Amperage: 1.1
• Max Flow: 18.5 GPM
• Max Head: 9 ft
• Connection Type: Flanged x Flanged
• Temperature Range: 40°F to 230°F
• Weight: 11 lbs
