Product Description

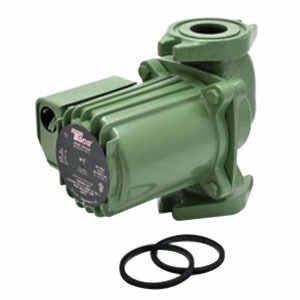

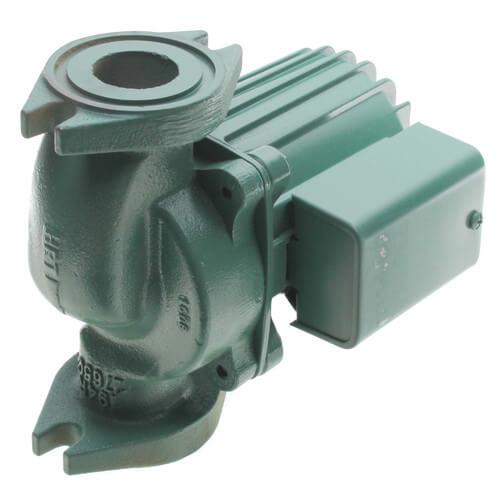

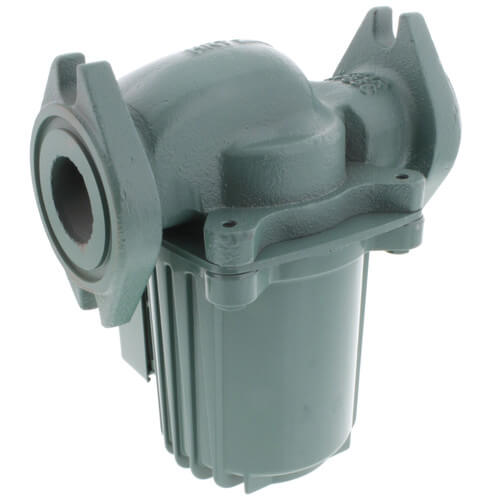

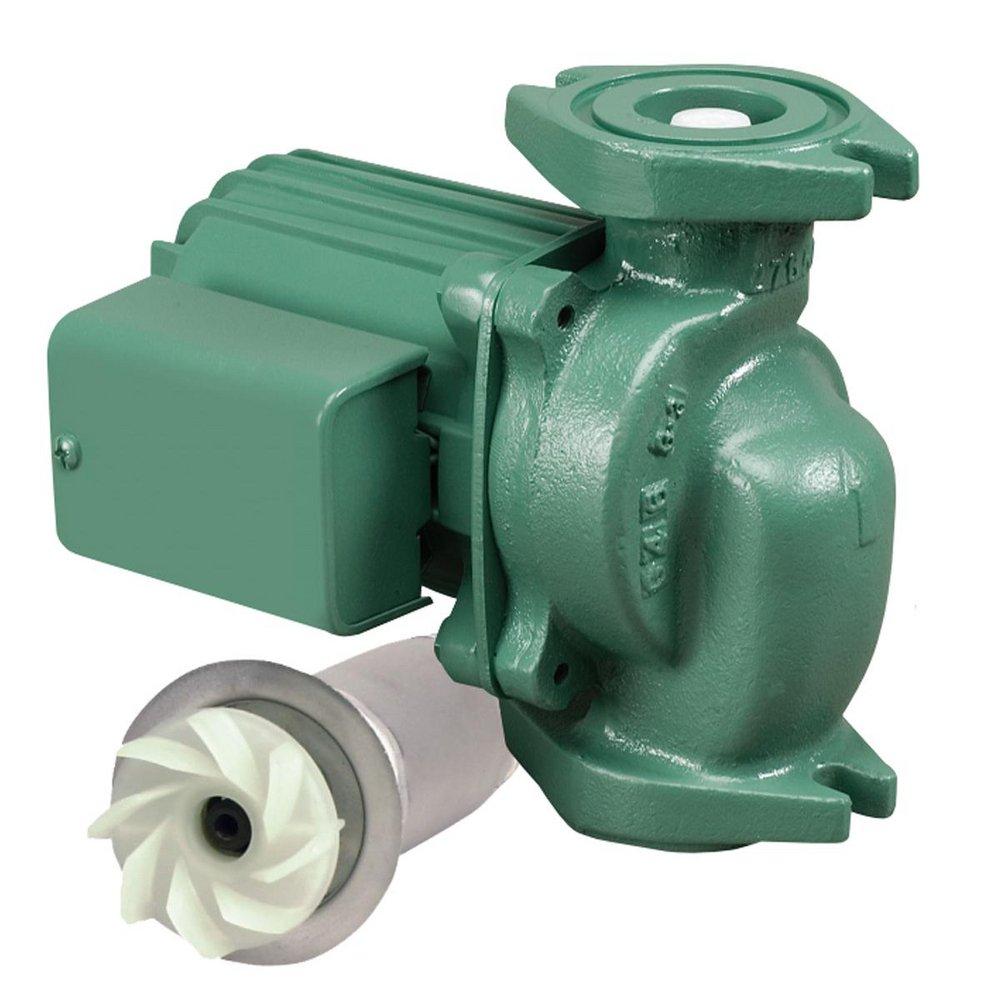

The Taco 0010-F3-1IFC is a cast iron circulator pump designed for hydronic heating and cooling systems. This model features an integral flow check, which improves flow efficiency by eliminating the need for a separate in-line check valve. The 1/8 horsepower motor operates on 115 volts and is suitable for residential and light commercial applications.
- Max flow rate of thirty GPM
- Temperature range of forty to two hundred thirty degrees Fahrenheit
- Compact design for easy installation in tight spaces
Product Highlights
This model is ideal for heating systems, radiant floor heating, and hydro-air fan coil applications. It provides reliable circulation, saving on installation costs and enhancing system performance.
Product Information
Standard Information
-
Model: 0010-F3-1IFC
-
Material: Cast Iron
-
Power Source: Corded Electric
Technical Specifications
-
Horsepower: 1/8 HP
-
Voltage: 115V
-
Flow Rate: 30 GPM
-
Max Head: 10 ft
-
Dimensions: 8.9 x 6.8 x 6.5 inches
-
Item Weight: 11 lbs
-
Connection Size: 1, 1-1/4, and 1-1/2 inches
-
RPM: 3250
