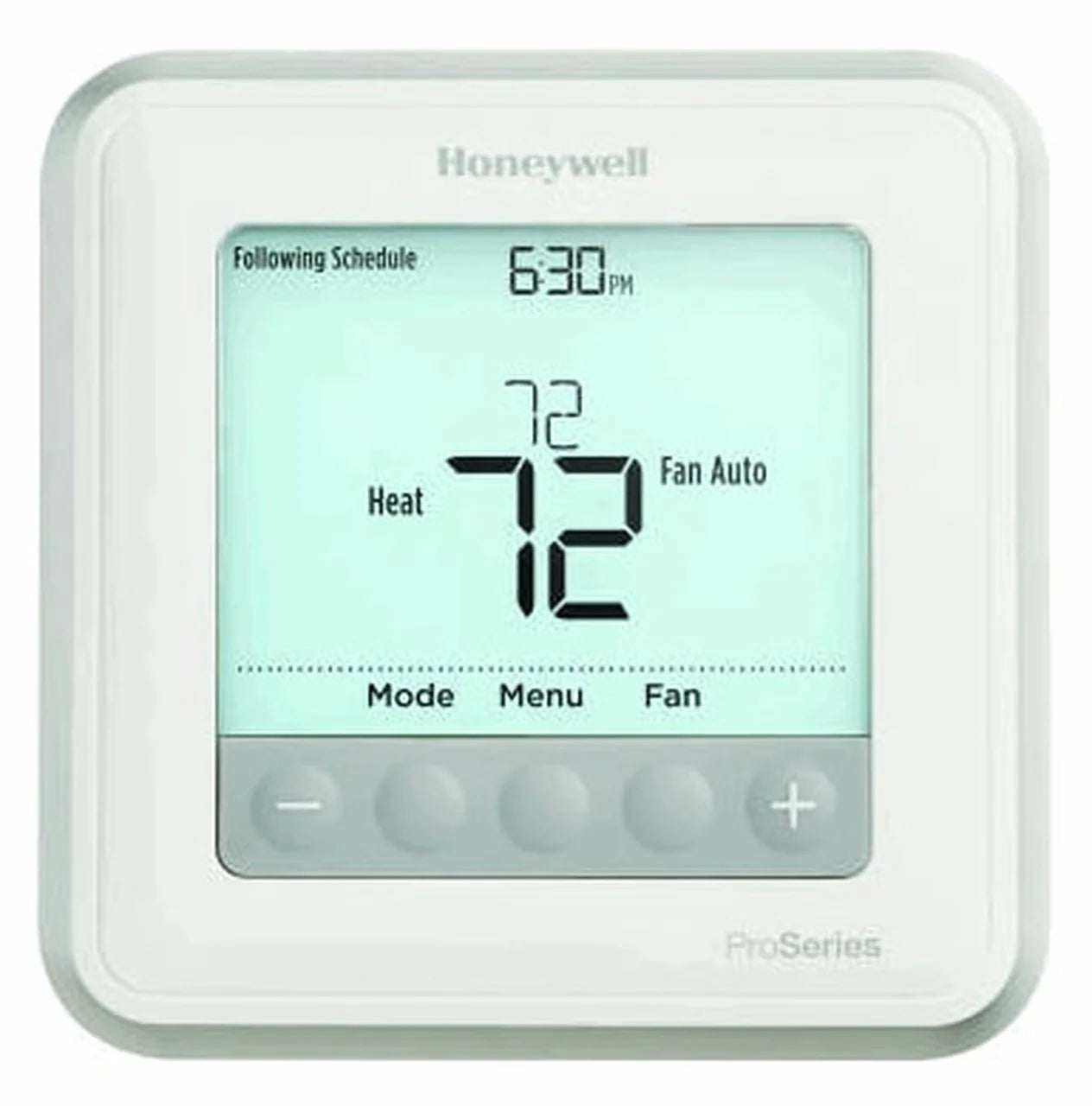

T6 Pro Programmable Thermostat for Conventional Systems (2 Heat/1 Cool Heat Pumps or 2 Heat/2 Cool)

Name: T6 Pro Programmable Thermostat for Conventional Systems (2 Heat/1 Cool Heat Pumps or 2 Heat/2 Cool)
Brand: Honeywell
SKU: TH6220U2000
Price: 87.99 USD
Availability: InStock

Share this product

Questions?

We're here to help. Speak with a real person ready to assist!

215-278-6058

Chat

Call

Email

Description

The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike.

TH6320U Up to 3H/2C heat pump and 2H/2C conventional
7-day, 5-2, 5-1-1 or non-programmable
Uses the UWP mounting system thats standard across all T Series thermostats
Easy upsell to a connected Lyric T6 Pro Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
Optional dual fuel (TH6320U & TH6220U only)
Optional wired indoor/outdoor sensors (TH6320U & TH6220U only)
Simple push-button functionality
Filter change reminders
5-year warranty

Application: Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan
Coil, Geothermal Heat Pump, Air to Air Heat Pump, Hot Water Radiant Heat, Steam
Dimensions (in.): 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Dimensions (mm): 103.6 mm long x 103.6 mm wide x 28 mm deep
Includes: Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
Mounting: UWP Mounting System
Electrical Ratings: 20 to 30 Vac
Stages: Up to 2 Heat/1 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
Electrical Connections: Honeywell UWP Mounting System
Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
Supply Voltage: 20 to 30 Vac
Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
Operating Temperature Range (F): 37 F to 102 F
Operating Temperature Range (C): 2.7 C to 39 C
Shipping and Storage Temperature Range (F): - 20 F to 120 F
Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
LEDs: LED Back Light
Power Method: Battery or Hardwired
Accuracy (F): 4 F
Accuracy (C): 0.5 C
Differential Temperature (F): ± 1 F
Differential Temperature (C): ± 0.5 C
Interstage Differential Temperature (F): 1 to 1.5 F Multistage models only
Ambient Temperature Range (F): 32 F to 120 F
Ambient Temperature Range (C): 0 C to 50 C
Switch Type: Relay
Programmability: 7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display: Large Display, Soft Key Controls
Display Size: 5.44 sq. in.
Temperature Control Mode Selections: Ambient Air Temperature
Changeover: Auto or Manual
Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
Heat Current: 0.02-1.0 A
Fan Current: 0.02-.05 A
External Sensors Available: Optional: Outdoor -- C7089U1006, Remote Indoor — C7189U1005

50002883-001 (Cover Plate Assembly)
C7089U1006 (Outdoor Sensor)
C7189U1005 (Remote Indoor Sensor)
THP2400A1068 (Cover Plate Assembly)
THP9045A1023 (Wire Saver)
