T&S Brass EC-3142-ST-VF05 ChekPoint sensor bathroom sink faucet 0.5 GPM VR spray device

Product Description

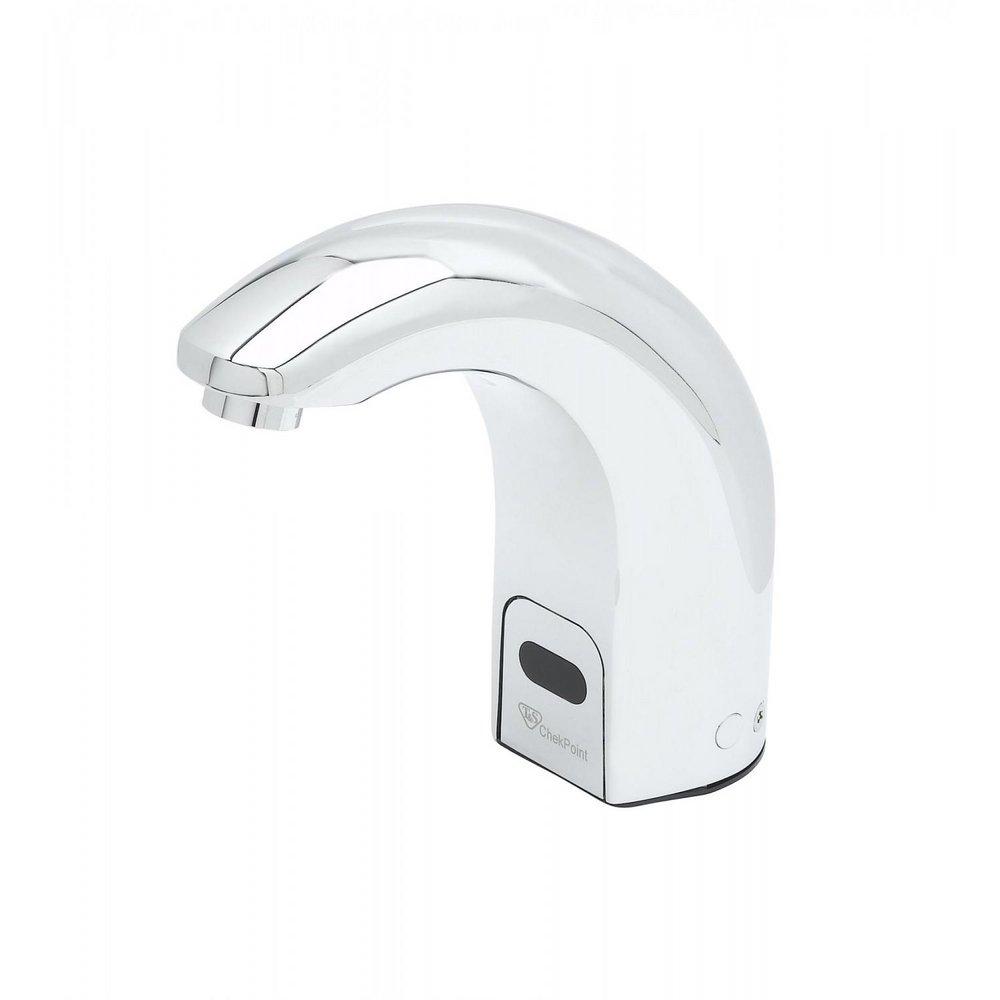

The T&S BRASS EC-3142-ST-VF05 is a ChekPoint Sensor Bathroom Sink Faucet designed for single-hole, single-temperature deck mounting. This electronic sensor faucet features a polished chrome plated brass body and an integral spout. It includes a 0.5 GPM vandal resistant non-aerated spray device and an above-deck electronic control module for adjusting auto time out and shut-off delay settings. Power options include a plug-in AC transformer or a 6 VDC lithium battery, operating between 20 psi and 125 psi.

• 0.5 GPM vandal resistant non-aerated spray device, Series 8 (B-0199-08-N05)
• Above deck electronic control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
• Single hole single temperature deck mount faucet with polished chrome plated brass body and integral spout

Product Highlights

Electronic sensor faucet with vandal-resistant 0.5 GPM spray, flexible AC/DC power options, and adjustable flow control settings.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: EC-3142-ST-VF05

Technical Specifications

• Flow Rate: 0.5 GPM (1.89 L/min)
• Maximum Pressure: 125 psi (8.62 bar)
• Minimum Pressure: 20 psi (1.38 bar)
• Maximum Temperature: 140 F (60 C)
• Minimum Temperature: 40 F (4.44 C)
• Body Configuration: Single Hole, Single Temperature
• Mounting Type: Deck
• Brand Series: ChekPoint
• Finish: Polished Chrome
• Inlet: 3/8 Compression
• Construction Material: Brass
• Spout Type: Cast
• Nozzle Outlet Type: Non-Aerated Spray Device, Vandal Resistant
