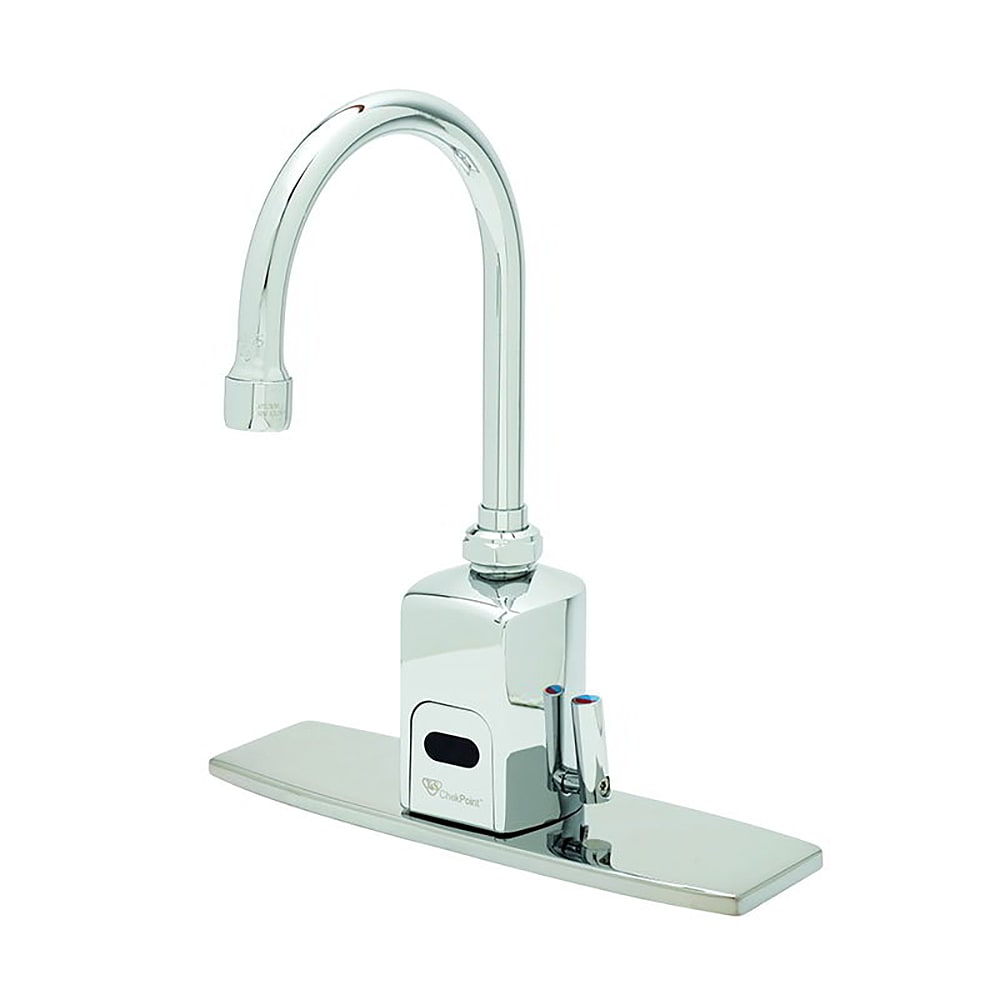

T&S Brass EC-3130-8DP ChekPoint Above-Deck Electronics Faucet 2.2 GPM

Product Description

The T&S Brass EC-3130-8DP ChekPoint above-deck electronics faucet is designed for commercial use. It features a polished chrome plated brass body and a five and seven-sixteenths inch swivel gooseneck. This faucet includes an eight-inch deck plate and a superior above-deck electronic control module that operates on both AC and DC power, giving flexibility for various installations.

• Includes eighteen-inch flexible stainless steel supply hoses with filter washers.
• Equipped with a two-point-two gallons per minute vandal resistant aerator.
• Complies with ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and UL 1951 standards.

Product Highlights

This faucet allows for one-hole installation and includes a side manual mixing valve, making it user-friendly and efficient for both staff and customers.

Product Information

Standard Information

• Body: Single Hole
• Finish: Polished Chrome

Technical Specifications

• Inlet: 3/8 Compression
• Material: Brass Construction
• Nozzle Flow: 2.2 GPM (8.33 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60 C)
• Temperature Min: 40 F (4.44 C)
• Spout Length: 5 7/16 inches
• Faucet Width: 10 inches
• Faucet Height: 11 3/8 inches
• Warranty: Three Year (Limited)
