T&S Brass BL-9515-01 Lab Faucet, Dual-Control Handle, Gray PVC, Rigid Gooseneck, Serrated Tip, 3/8 inchesFemale Inlet

Product Description

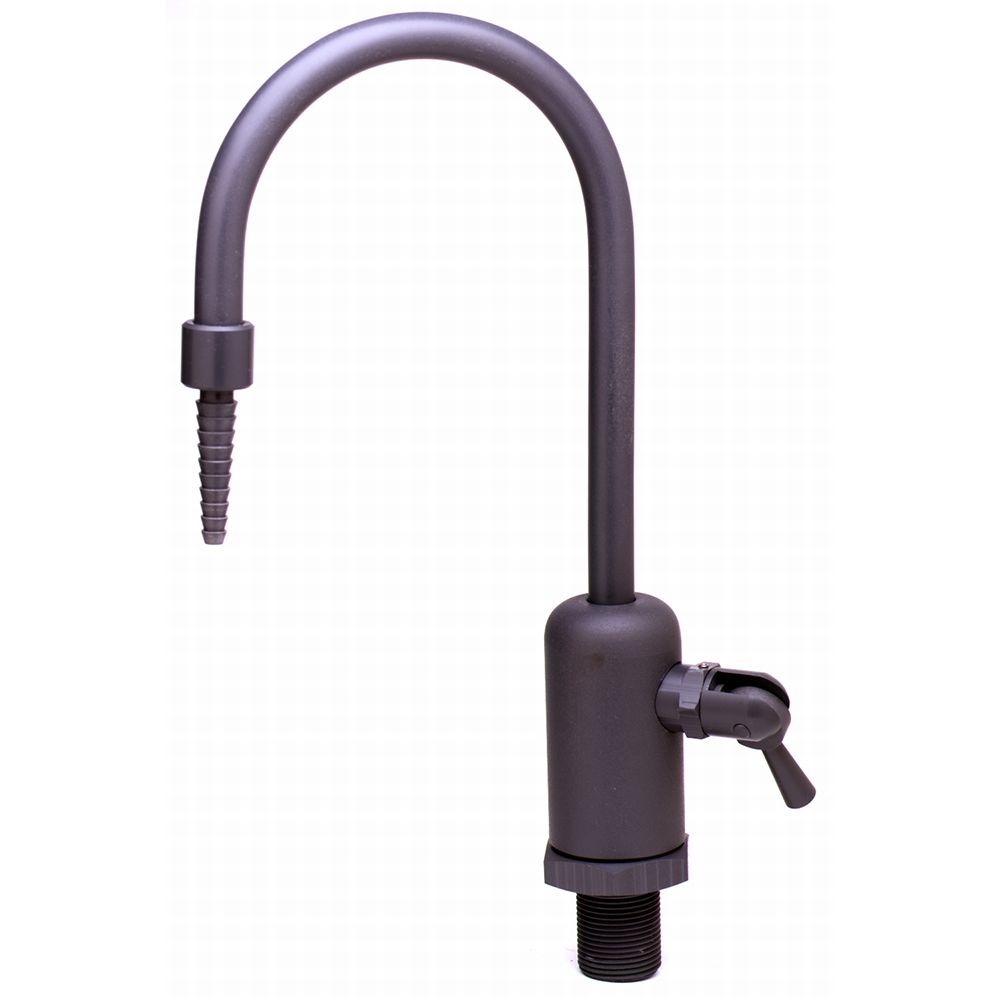

The T&S BRASS BL-9515-01 is a single hole, single temperature deck mount faucet featuring a PVC body and a 6" rigid gooseneck with a serrated tip outlet. It includes a dual operation handle and a 3/8" NPT female inlet. This faucet is certified to ASME A112.18.1/CSA B125.1 and meets ADA ANSI/ICCA117.1 requirements.

• 3/8" NPT female inlet

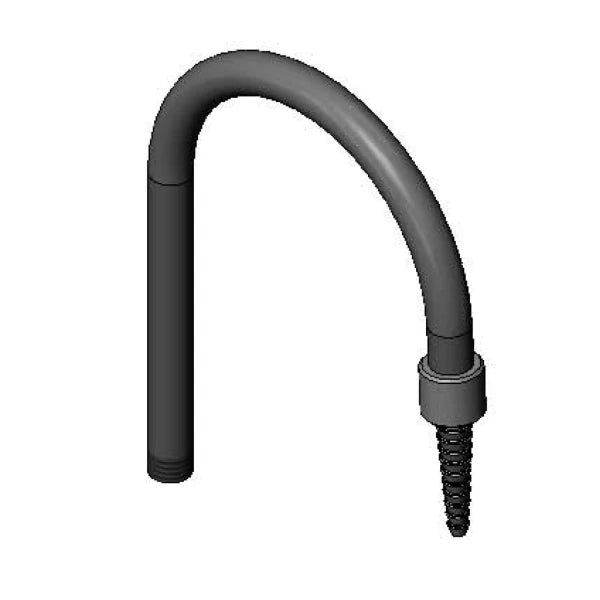

• 6" rigid gooseneck
• Dual operation handle: Pull handle down for self-closing feature Pull up for manual On-Off control

Product Highlights

This lab faucet is designed for pure water applications and offers both manual and self-closing operation.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: BL-9515-01
• Country of Origin: U.S.A.

Technical Specifications

• Body: Single Temp
• Body Mount: Deck

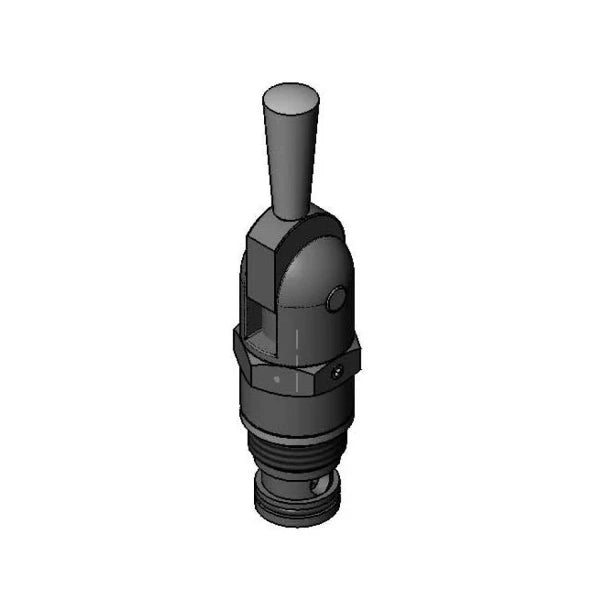

• Cartridge-Spindle: PVC - Manual / Self Closing
• Handle: Lever
• Inlet: 3/8 in NPT Female
• Material: PVC Construction
• Nozzle: Rigid
• Nozzle Flow: 4.07 GPM (15.40 L/min)
• Nozzle Outlet Type: Serrated Tip
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Manufacturer: T&S Brass
• Part Number: BL-9515-01
• Item Weight: 1 pounds
• Product Dimensions: 14 x 4 x 11 inches
• Item model number: BL-9515-01
• Is Discontinued By Manufacturer: No
• Size: not_applicable
• Finish: Iron
• Pattern: not_applicable
• Shape: circle
• Voltage: 110 Volts
• Wattage: 200 watts
• Installation Method: Wall Mount
• Item Package Quantity: 1
• Number Of Pieces: 1
• Number Of Holes: 18
• Head Style: Bugle
• Number of Handles: 1
• Handle Material: Other
• Mounting Type: Deck Mount
• Certification: ul_listed
• Special Features: not_applicable
• Included Components: Screw
• Batteries Included?: No
• Batteries Required?: No
• Warranty Description: : One Year (Limited)
• Building Type: Commercial
• Fixture Type: Lab / Medical
• Installation: Deck Mount
• Handle Type: Lever
• Application: Medical
• Flow Rate: More than 3 GPM
• Base Size: 4"
• Max Counter Thickness: 1-1/2"
• Max Flow Rate: 4.07 GPM
• Max Pressure (Psi): 125
• Max Temp (°F): 140°F
• Min Pressure (Psi): 20
• Min Temp (°F): 40°F
• Kully Item #: 125624
• Model #: BL-9515-01
• UPC Code: 671262018494
