T&S Brass BL-5725-09CRWH4 Lab Faucet 8 inches Wall Mount Ceramas Swivel VB Nozzle Serrated Tip 4 inches Wrist Handles

Product Description

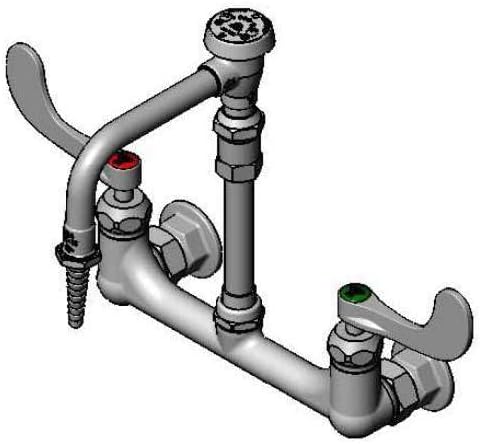

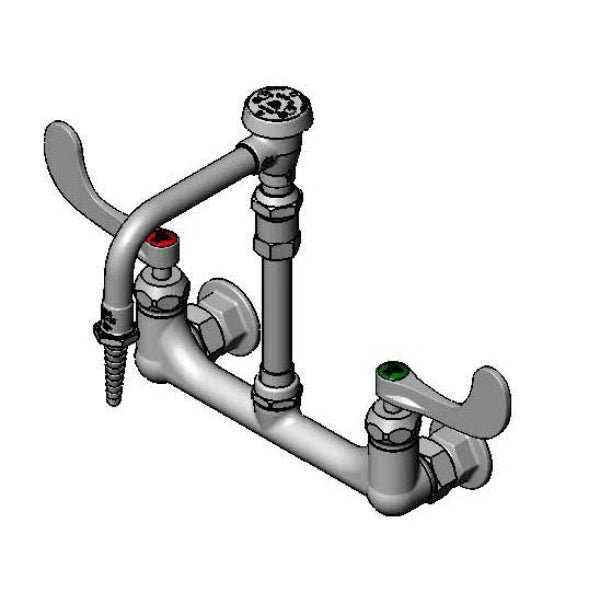

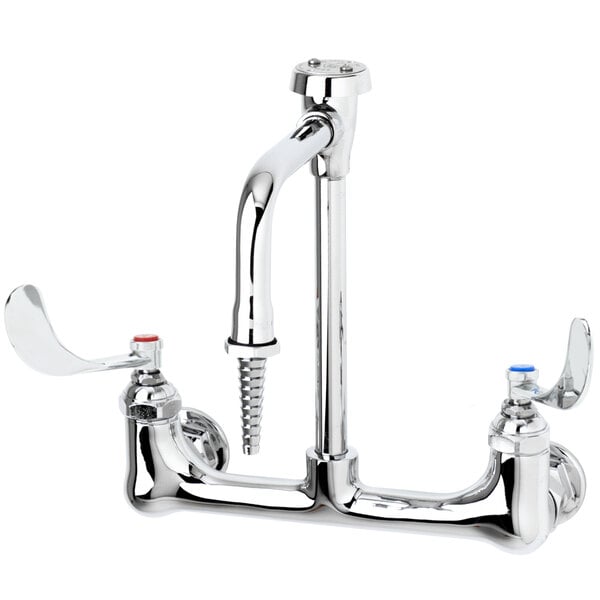

The T&S BRASS BL-5725-09CRWH4 is an 8" wall mount mixing faucet with a polished chrome plated brass body and a 5" riser. It features a polished chrome plated swivel nozzle with vacuum breaker and serrated tip outlet with 0.5 GPM flow control, ceramic cartridges with check valves, and 4" wrist action handles with 1/2" NPT female inlets.

• 1/2" NPT female eccentric inlets with 2" flanges
• 4" wrist action handles w/ color coded lab indexes
• 8" deck mount mixing faucet w/ polished chrome plated brass body

Product Highlights

This lab faucet is certified to ASME A112.18.1 / CSA B125.1, NSF 61 - Section 9, NSF 372 and ASSE 1001 and meets ADA ANSI/ICC A117.1 requirements.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: BL-5725-09CRWH4

Technical Specifications

• Body: 8 in Centers (203.2 mm)
• Body Mount: Wall
• Cartridge-Spindle: Ceramic
• Feature: Check Valve
• Handle: 4 in Wrist (101.6 mm)
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Flow: 0.5 GPM (1.89 L/min)
• Nozzle Outlet Type: Serrated Tip
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Spout Length: 5 11/16 Inches
• Faucet Width: 16 Inches
• Faucet Height: 9 11/16 Inches
• Faucet Centers: 8 Inches
• Features: ADA Compliant, Vacuum Breaker
• Finish: Chrome
• Flow Rate: 0.5 GPM
• Handle Type: Wrist
• Mounting Style: Wall Mounted
• Mounting Type: Adjustable
• Number of Spouts: 1 Spout
• Pressure Rating: 20 - 125 PSI
• Spout Clearance: 3 7/16 Inches
• Spout Type: Gooseneck
• Temperature Rating: 40 - 140 Degrees F
• Type: Laboratory Fixtures
• Usage: Water
• Water Inlet Size: 1/2 Inches
• Finish Type: Polished
• Special Features: Check Valve
• Handle Material: Brass
