T&S Brass BL-5709-05 Lab Faucet, Single Temperature, VB Swing Nozzle, Serrated Tip, 4 inches Wrist Handle

Product Description

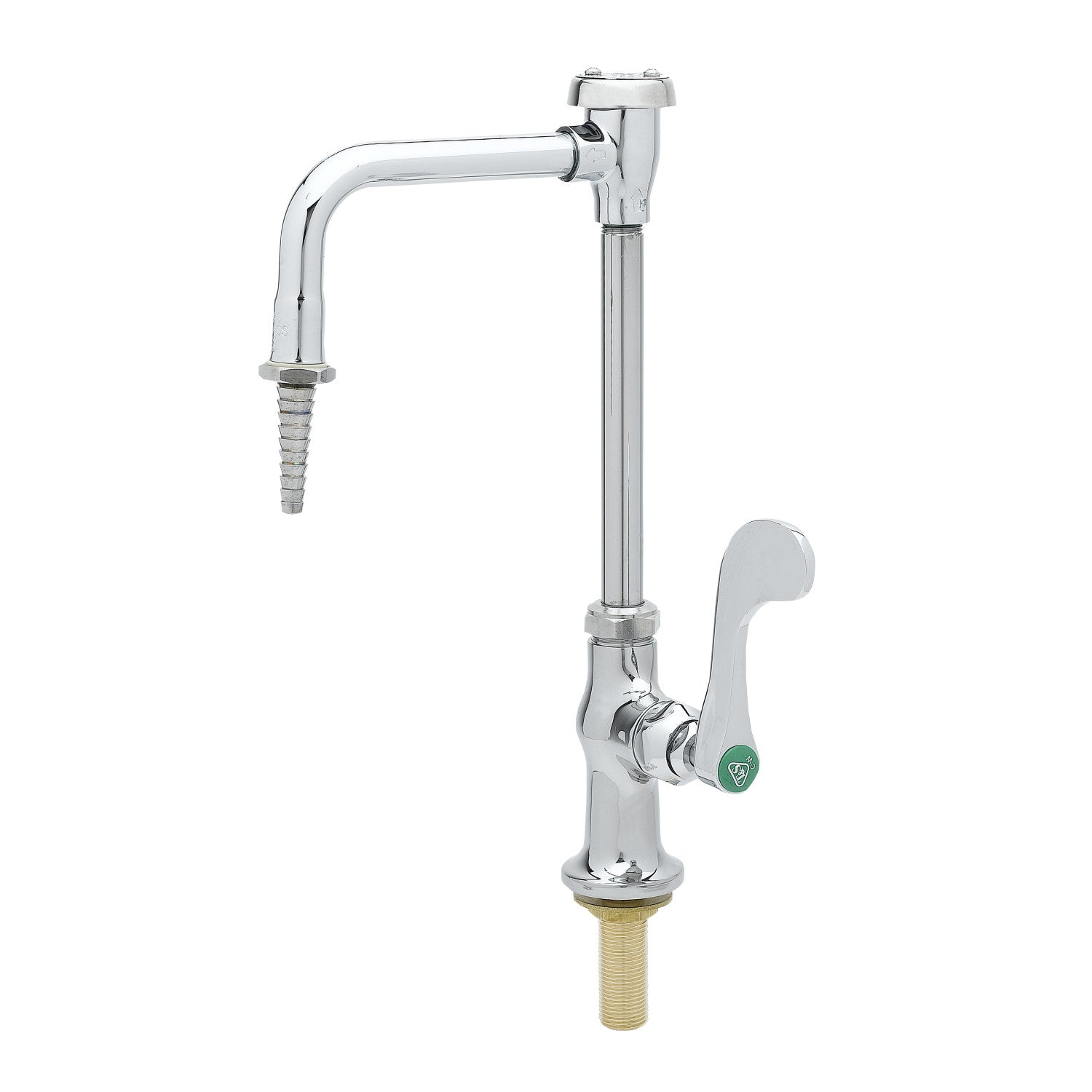

The T&S Brass BL-5709-05 lab faucet is a single hole deck mount mixing faucet with a polished chrome plated brass body and a 7" riser. It features a polished chrome plated swivel nozzle with vacuum breaker and serrated tip outlet with 0.5 GPM flow control, ceramic cartridge with check valve, and a 4" wrist action handle with a 1/2" NPSM male inlet. Certified to ASME A112.18.1 / CSA B125.1, NSF 61-Section 9, NSF 372 and ASSE 1001. Meets ADA ANSI/ICC A117.1 requirements.

• 1/2" NPSM male inlet
• 4" wrist action handle w/ color coded index
• Lock washer provided for rigid application

Product Highlights

This lab faucet is ideal for use in laboratory settings, providing a reliable and easy-to-use water fixture. Its vacuum breaker protects against backflow, and its wrist action handle allows for hands-free operation.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: BL-5709-05
• Country of Origin: America

Technical Specifications

• Body: Single Temp
• Body Mount: Deck
• Cartridge-Spindle: Ceramic
• Feature: Check Valve
• Handle: 4 in Wrist (101.6 mm)
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Flow: 0.5 GPM (1.89 L/min)
• Nozzle Outlet Type: Serrated Tip
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Spout Length: 5 11/16 Inches
• Faucet Width: 4 7/8 Inches
• Faucet Height: 12 13/16 Inches
• Faucet Centers: Single
• Features: ADA Compliant, Made in America, Vacuum Breaker
• Finish: Chrome
• Flow Rate: 0.5 GPM
• Handle Type: Wrist
• Mounting Style: Deck Mounted
• Number of Spouts: 1 Spout
• Pressure Rating: 20 - 125 PSI
• Spout Clearance: 6 1/2 Inches
• Spout Type: Gooseneck
• Temperature Rating: 40 - 140 Degrees F
• Type: Laboratory Fixtures
• Usage: Water
• Water Inlet Size: 1/2 Inches
• Manufacturer: TS Brass
• Model #: BL-5709-05
• UPC Code: 671262552400
• OEM: T&S Brass
• OEM #: BL-5709-05
