T&S Brass B-2990-WH4-CR-VF05 Lavatory Faucet Concealed Body 8 inches Centers Cast Spout 4 inches Wrist

Product Description

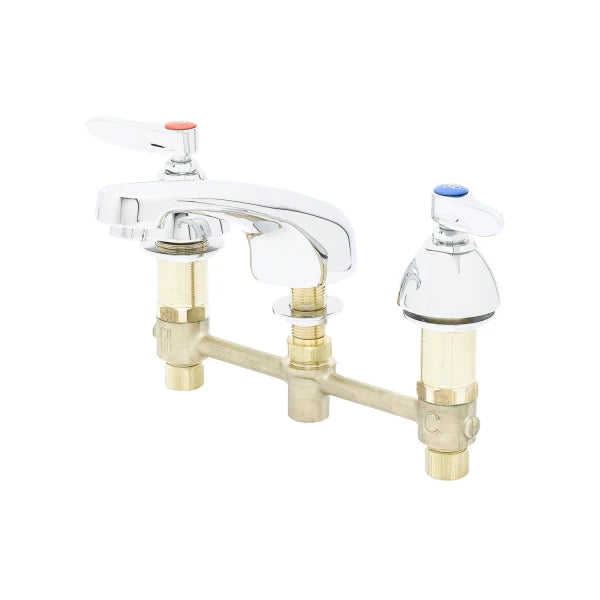

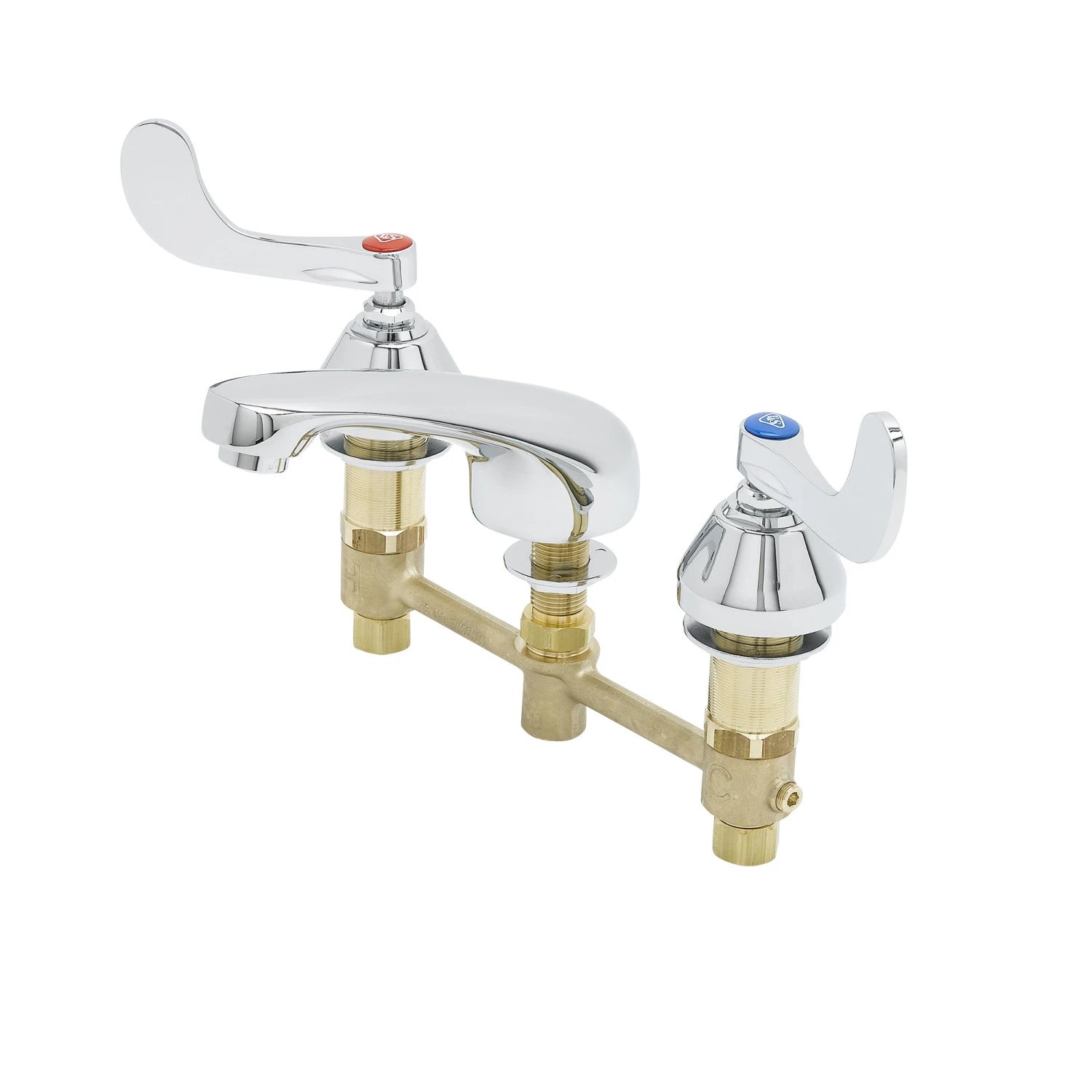

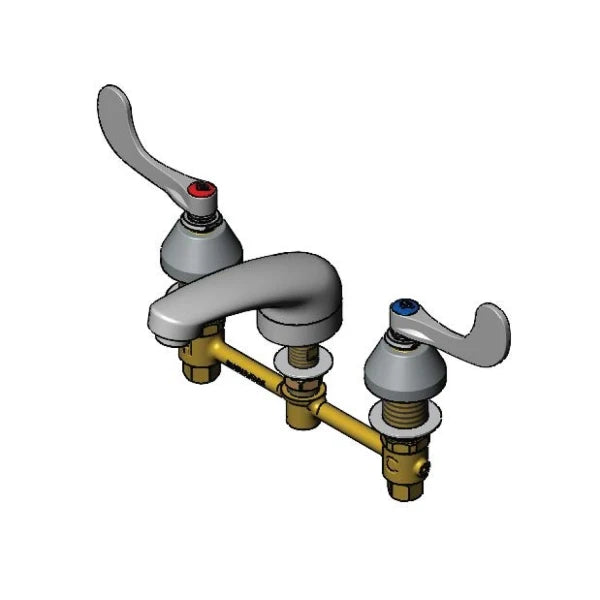

The T&S Brass B-2990-WH4-CR-VF05 is an 8" concealed deck mount mixing faucet with a forged brass body and a polished chrome plated cast spout. It features a 0.5 GPM vandal resistant non-aerated spray device and compression cartridges with spring checks. The faucet also includes 4" wrist action handles and 1/2" NPT male inlets with coupling nuts.

• Features a 0.5 GPM vandal resistant non-aerated spray device
• Includes 4" wrist action handles with color coded indexes
• Constructed with a forged brass body and polished chrome plated brass cast spout

Product Highlights

This lavatory faucet is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and meets ADA ANSI/ICC A117.1 requirements.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-2990-WH4-CR-VF05
• Country of Origin: US

Technical Specifications

• Body: Concealed
• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Vandal Resistant Handle Screws
• Handle: 4 in Wrist (101.6 mm)
• Material: Brass Construction
• Nozzle: Cast Spout
• Nozzle Flow: 0.5 GPM (1.89 L/min)
• Nozzle Outlet Type: Vandal Resistant
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
