Product Description

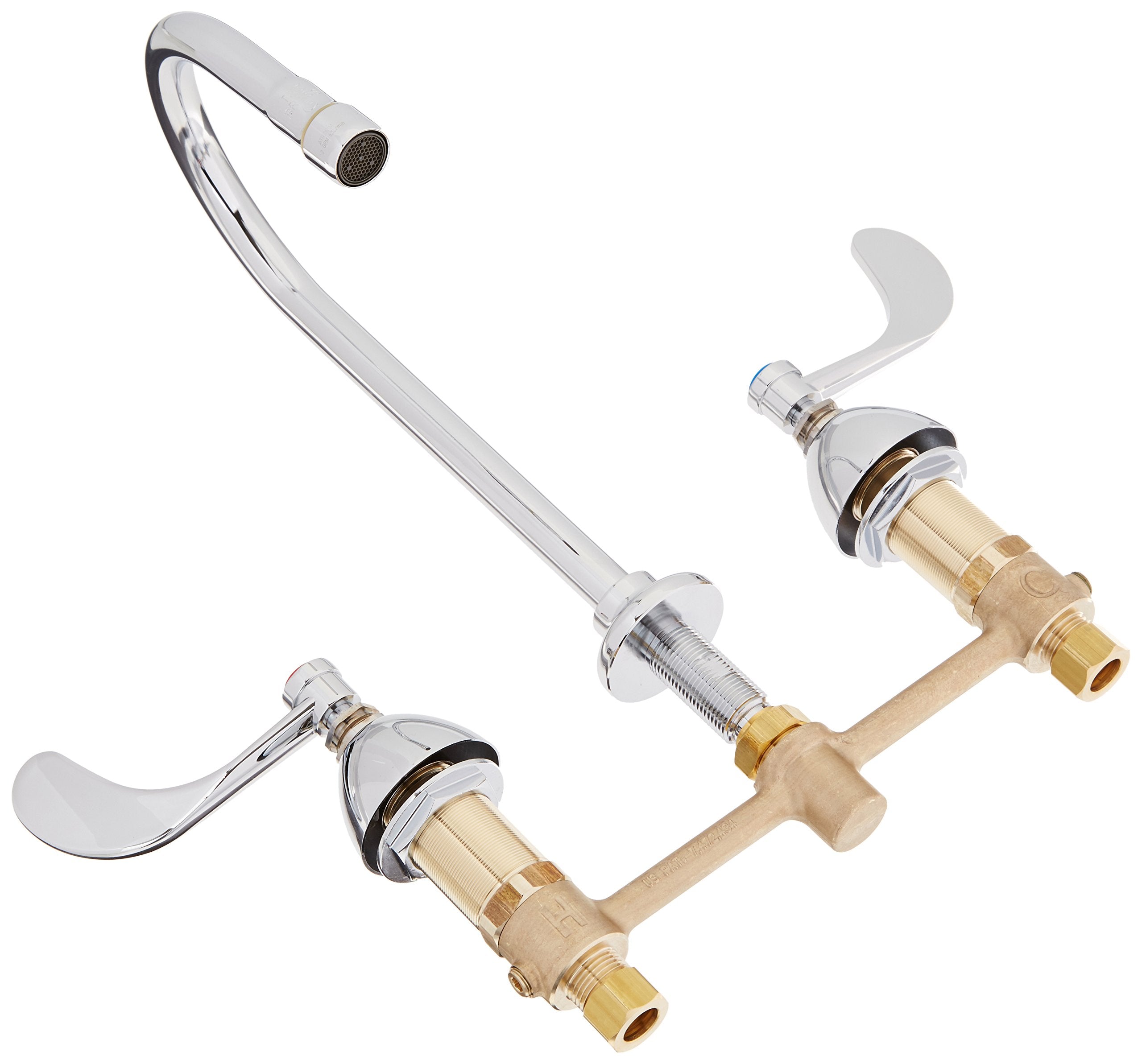

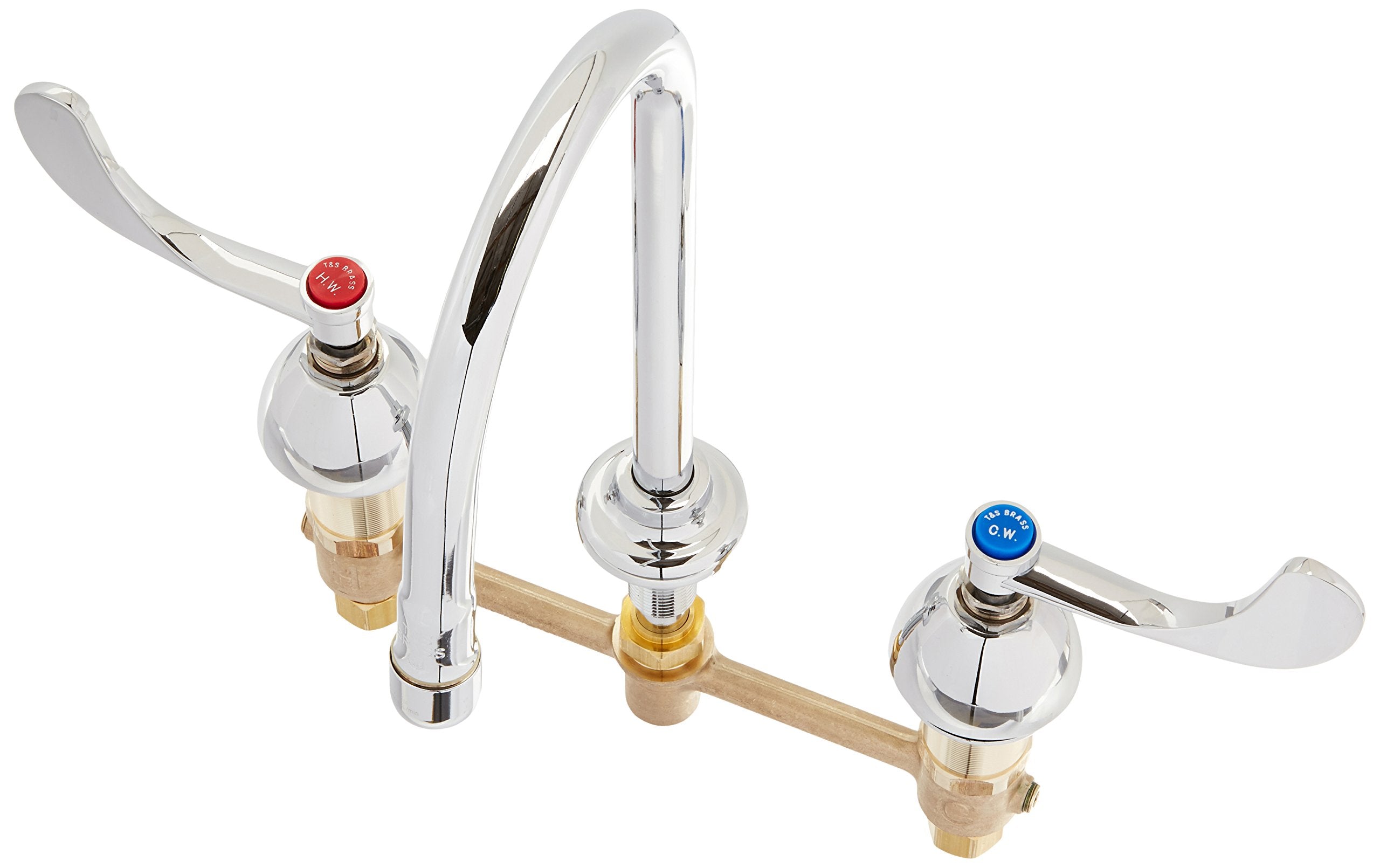

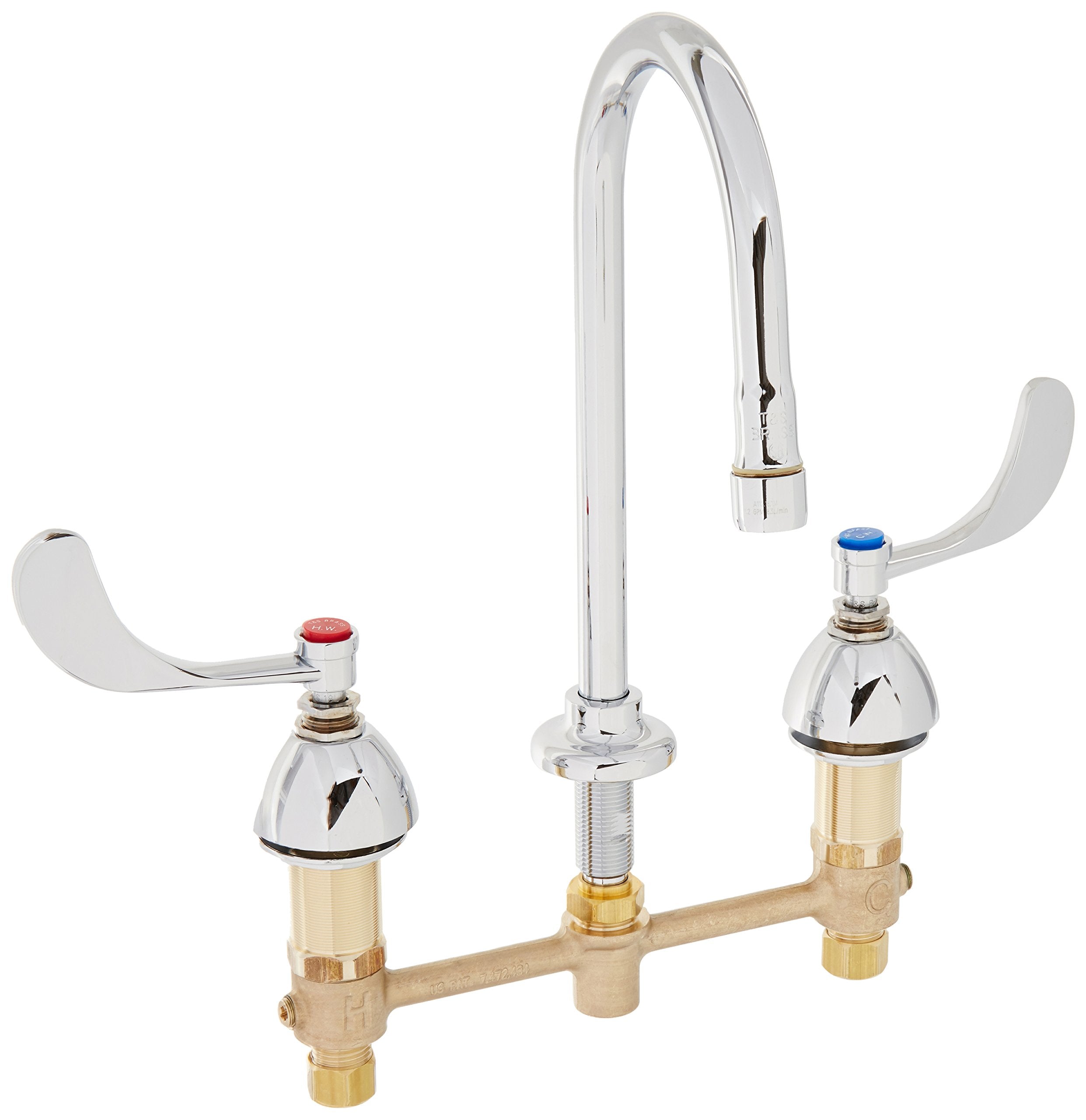

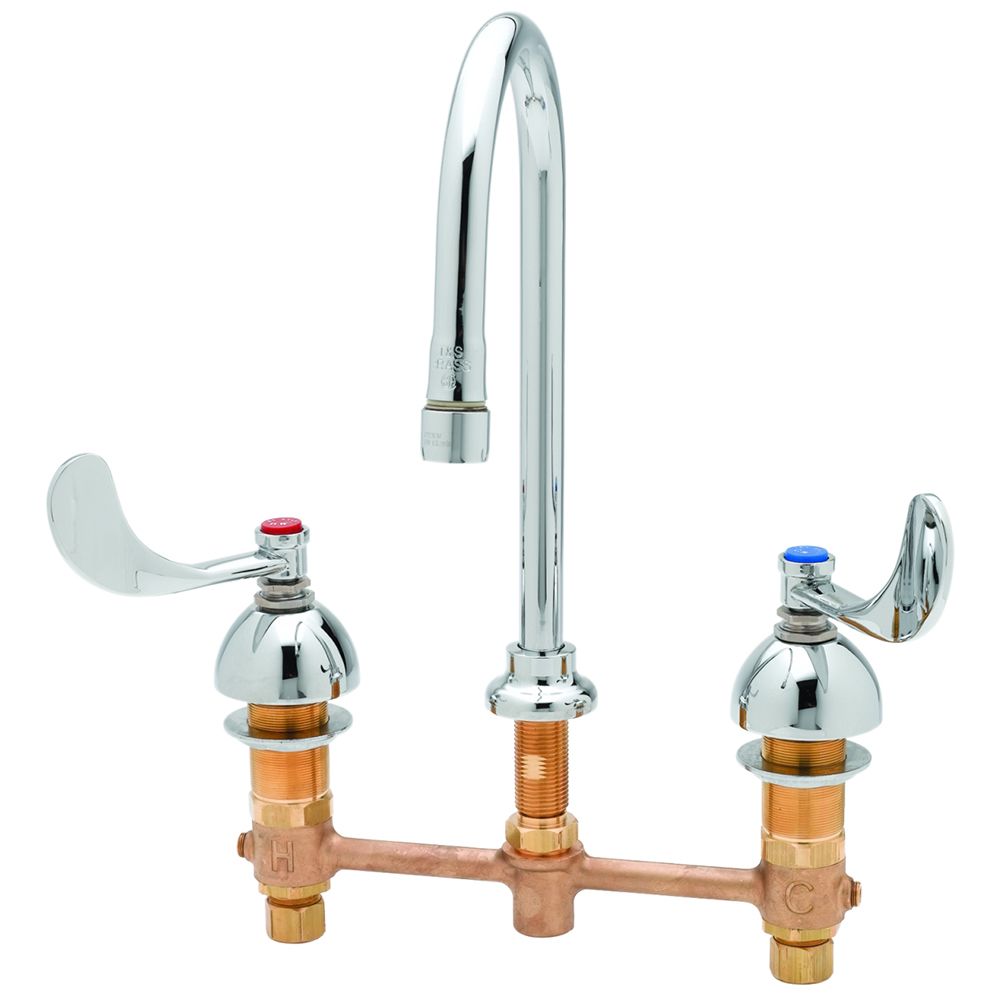

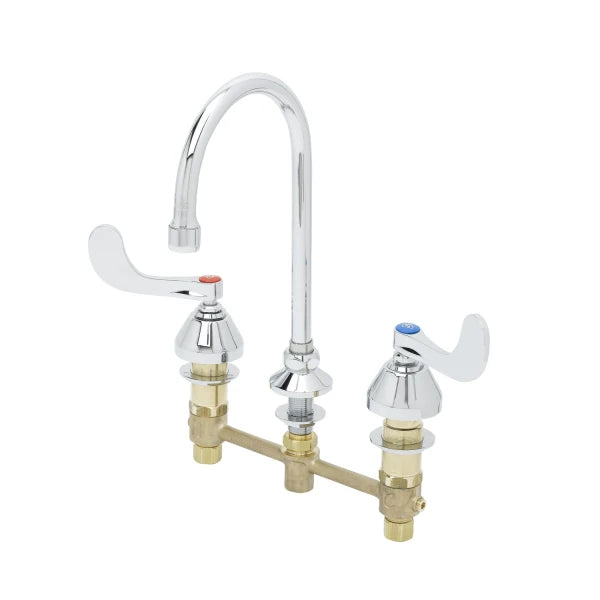

The T&S Brass B-2867-04 is a widespread commercial medical/surgical faucet. Constructed from brass with a polished finish, this faucet features a 3-hole deck mount and 4-inch wrist handles. It has a maximum flow rate of 2.2 gallons per minute and includes a chrome widespread commercial medical faucet.
- Constructed from brass material
- Features 4-inch wrist handles
- Maximum flow rate of 2.2 gallons per minute
Product Highlights
This widespread commercial faucet is ideal for medical and surgical settings, offering durability and ease of use with its wrist blade handles.
Product Information
Standard Information
-
Brand: T&S BRASS
-
Manufacturer Part Number: B-2867-04
-
Country of Origin: United States
Technical Specifications
-
Material: Brass
-
Hole Count: 3
-
Model Name: B-2867-04
-
Finish Type: Polished
-
Handle Type: 4 in Wrist
-
Mounting Type: Deck Mount
-
Handle Location: Wide-spread
-
Handle Material: Brass
-
Installation Type: Deck Mounted
-
Maximum Flow Rate: 2.2 Gallons Per Minute
-
Number of Handles: 2
-
centerset: 8-Inch
-
inlets: 1/2-Inch IPS male
-
handles: 4-Inch wristblade
-
ADA Compliant: Yes
-
spout: Rigid gooseneck
-
Faucet Type: Centerset
-
Spout Reach: 3 to 5 in
-
Flow Rate: 2.20 gpm
-
Spout Type: Fixed
-
Model#: B-2867-04
-
Manufacturer Name: T&S Brass
-
SKU: TB286704
-
Connection: 1/2"
-
Valve Type: Compression
-
Faucet Activation: Manual
-
Faucet Handle Type: Wristblade
-
Faucet Spout Shape: Gooseneck
-
Mounting Hole Center to Center: 8"
-
Max. Mounting Hole Center Distance: 8 in
-
Max. Installation Surface Thickness: 1 1/4
-
Body: Concealed
-
Cartridge-Spindle: 1/4 Turn Compression
-
Feature: Spring Check
-
Handle: 4 in Wrist (101.6 mm)
-
Nozzle: Swivel
-
Nozzle Flow: 2.2 GPM (8.33 L/min)
-
Nozzle Outlet Type: Aerator
-
Pressure Max: 125 psi (8.62 bar)
-
Pressure Min: 20 psi (1.38 bar)
-
Temperature Max: 140 F (60℃)
-
Temperature Min: 40 F (4.44℃)
-
Recommended Uses For Product: Medical
-
Style: Modern
-
Spout Design: Gooseneck
-
Manufacturer: TS Brass
-
Room Type: Bathroom/Restroom
-
Item model number: B-2867-04
-
Base Size: 4"
-
Max Flow Rate: 2.2 GPM
-
Max Pressure (Psi): 125
-
Max Temp (°F): 140°F
-
Min Pressure (Psi): 20
-
Min Temp (°F): 40°F
-
Color / Finish: Chrome Plated Brass
-
Origin: U.S.A.
-
Product Certification Standard: NSF/ANSI 61
-
Warranty: 12 Months from Date of Purchase
-
Product Height: 9"
-
Product Length: 16"
-
Product Weight (lbs): 6
-
MPN: B-2867-04
-
Brand: T&S BRASS
-
Faucet Body Material: Brass
-
Valve Type - Faucets: Hot/Cold Cartridge
-
Water Inlet Connection Size: 1/2 in
-
Water Inlet Connection Type: Male NPSM
