T&S Brass B-2865-05 Medical Faucet, 12 inches Flex S'Steel Lines, Rigid Gooseneck, Rosespray, Wrist Handles

Product Description

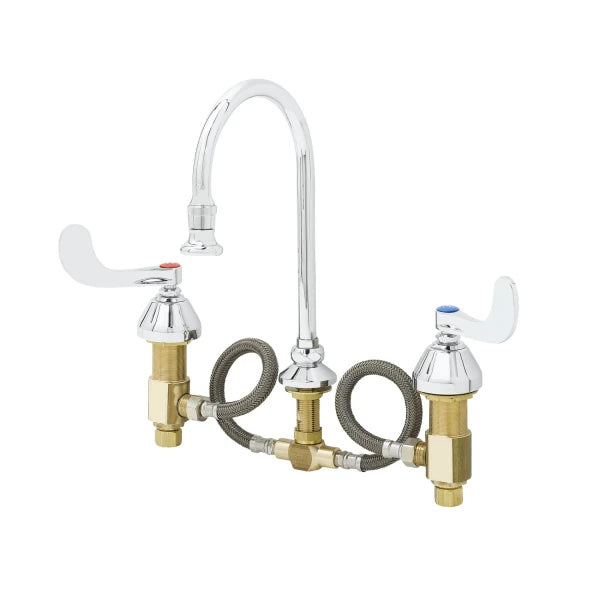

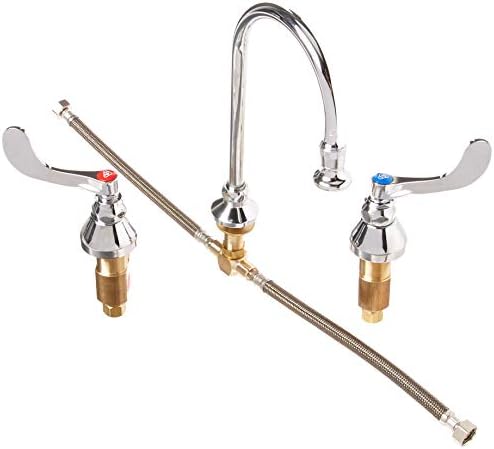

The T&S Brass B-2865-05 is an adjustable concealed deck mount mixing faucet with a forged brass body. It features a 5 13/16" rigid/swivel gooseneck with a 2.2 GPM rosespray outlet and compression cartridges with spring checks. The faucet also includes 4" wrist action handles and chrome plated escutcheons with 1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• 1/2" NPT male inlets w/ coupling nuts
• 2.2 GPM Rosespray outlet, Series 1
• 4" wrist action handles w/ color coded indexes

Product Highlights

This medical faucet features a rigid/swivel gooseneck and wrist handles for ease of use. Ideal for commercial applications.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-2865-05

Technical Specifications

• Nozzle Flow: 2.2 GPM (8.33 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Body: Concealed
• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: 4 in Wrist (101.6 mm)
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Outlet Type: Rosespray
• Recommended Uses For Product: Commercial
• Mounting Type: Deck Mount
• Finish Type: Polished
• Handle Material: Brass
• Material Type: Brass
• Spout Reach: 12 Inches
• Hole Count: 3
