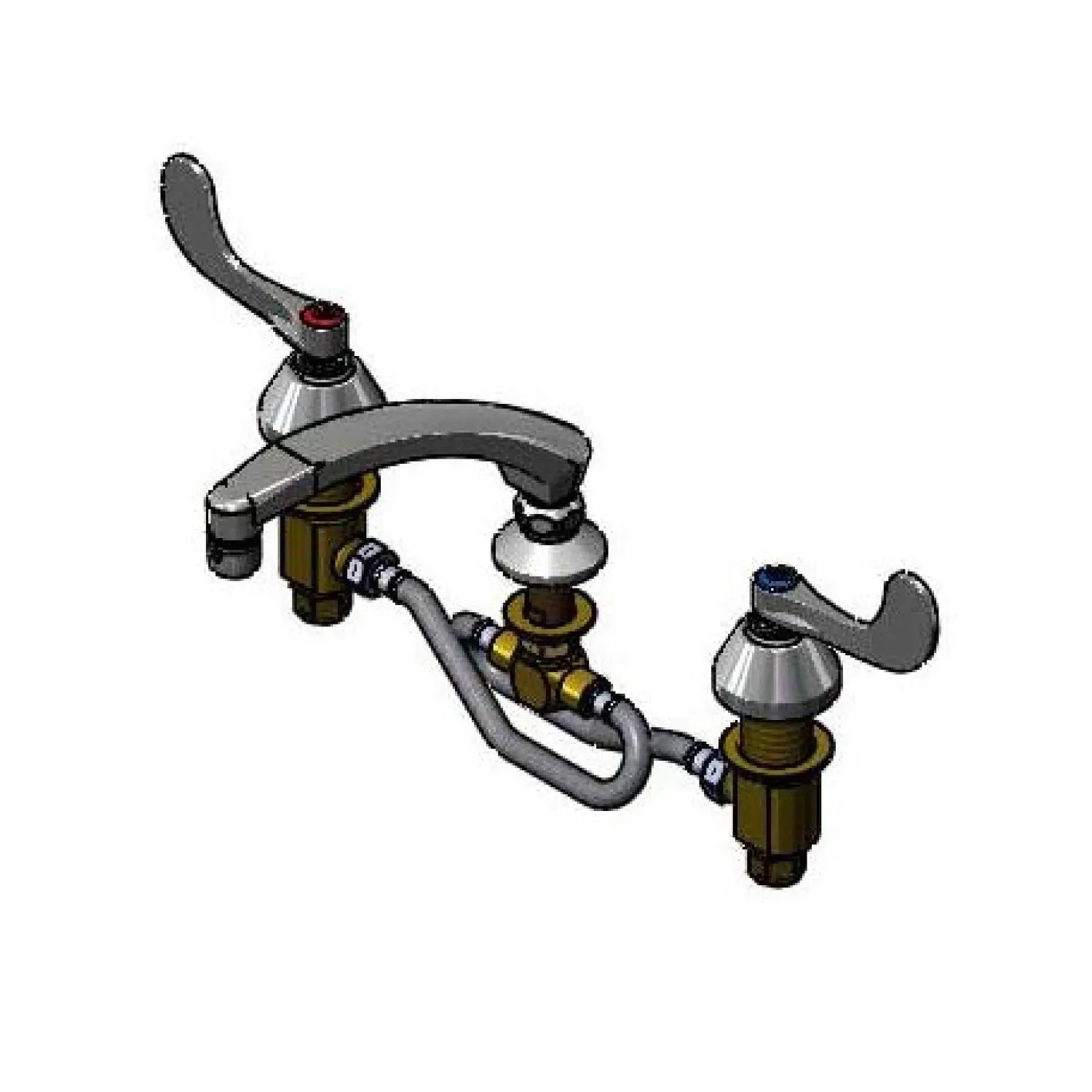

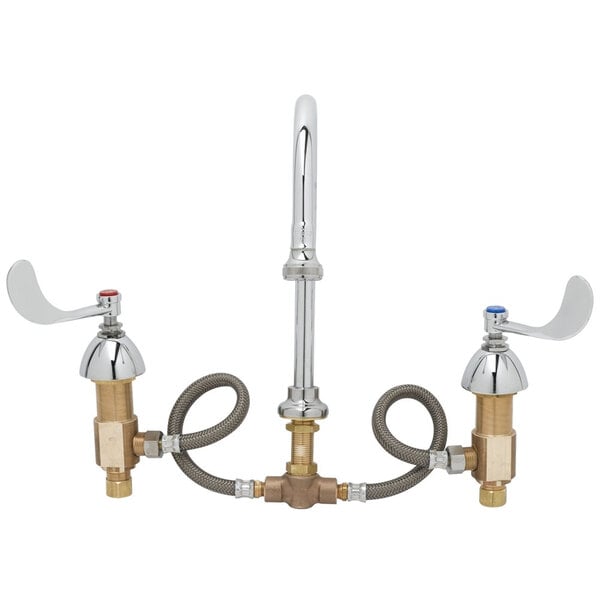

T&S Brass B-2865-05-0CS8 Medical Faucet 12 inches Flex Lines, 8 inches Swivel Cast Spout, 2.2 GPM Aerator, 4 inches Wrist Handles

Product Description

The T&S Brass B-2865-05-0CS8 medical faucet features a forged brass body and is designed for deck mounting. It includes an 8" cast spout with a 2.2 GPM aerator and 4" wrist action handles. The faucet has adjustable concealed deck mount mixing capabilities and 1/2" NPT male inlets with coupling nuts.

• Features 1/2" NPT male inlets with coupling nuts.
• Equipped with a 2.2 GPM aerator, Series 2 (B-0199-02).
• Includes quarter-turn Eterna compression cartridges with spring checks.

Product Highlights

This T&S Brass medical faucet is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372 and meets ADA ANSI/ICC A117.1 requirements.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-2865-05-0CS8

Technical Specifications

• Nozzle Flow: 2.2 GPM (8.33 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Body: Concealed
• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: 4 in Wrist (101.6 mm)
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Outlet Type: Aerator
• Spout Length: 8 Inches
• Cartridge Type: Compression
• Features: ADA Compliant
• Finish: Chrome
• Flow Rate: 2.2 GPM
• Handle Type: Wrist
• Mounting Style: Deck Mounted
• Mounting Type: Adjustable
• Spout Clearance: 3 13/16 Inches
• Spout Type: Swing
• Temperature Rating: 40 - 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
• Safety and Compliance: ADA, CSA, NSF
• Product Type: Commercial Fixture
