T&S Brass B-1342 Loose Key Angle Stop 1/2 inches NPT Female Inlet, Outlet w/Compression Nut Fits 1/2 inches OD Tubing

Product Description

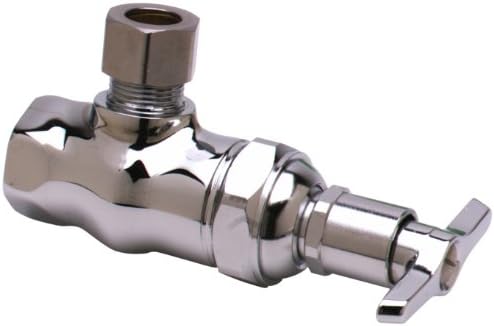

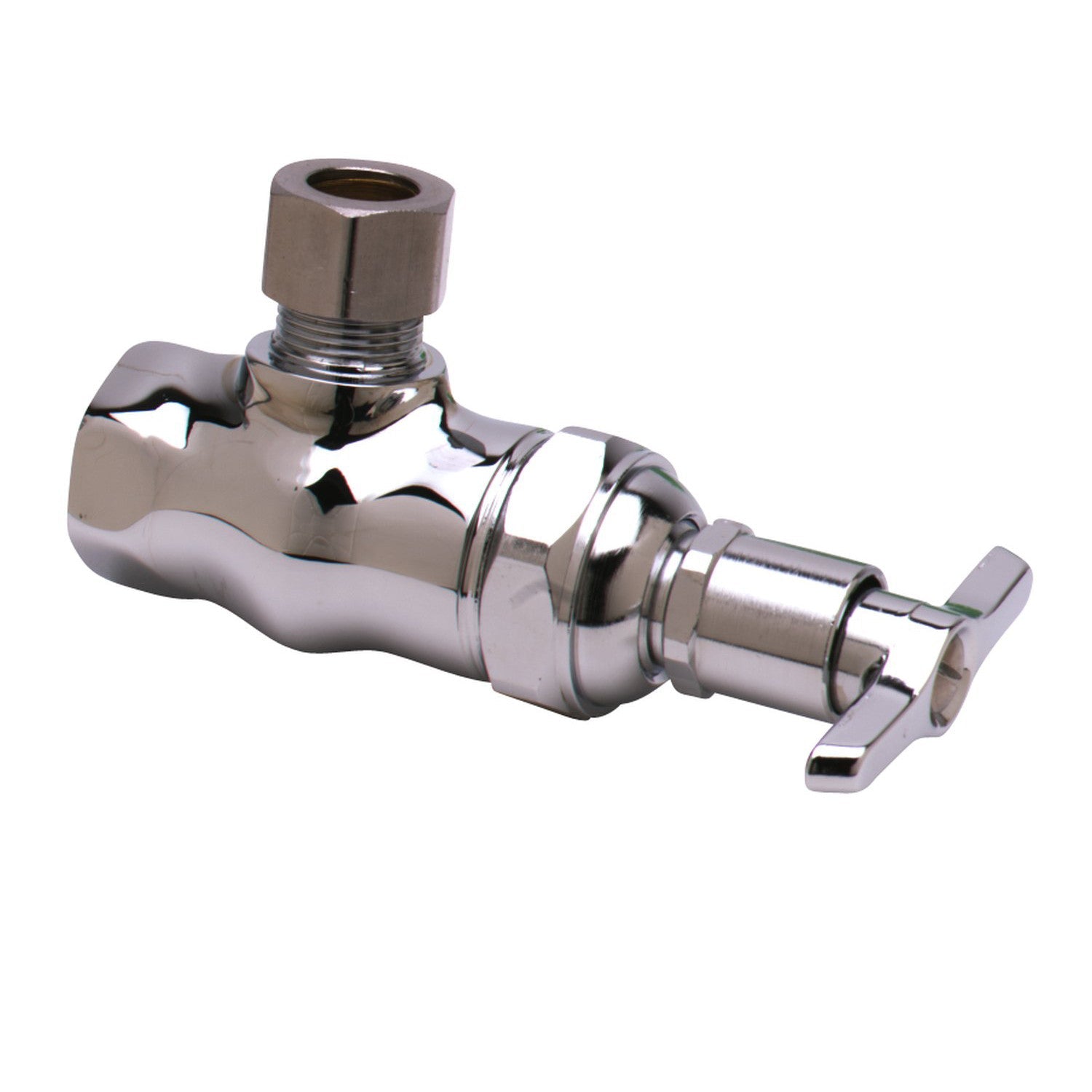

The T&S Brass B-1342 is a loose key angle stop featuring a polished chrome plated brass body. This unit includes a loose key style shutoff valve with a tee handle, a 1/2" NPT female inlet, and an outlet with a compression nut and sleeve designed to fit 1/2" O.D copper tubing. It operates within a pressure range of 20 psi to 125 psi and a temperature range of 40 F to 140 F. Certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9, and NSF 372, it ensures compliance for plumbing applications.

• 1/2" NPT female inlet for secure connection.
• Loose key angle stop with polished chrome plated brass body.
• Outlet with compression nut and sleeve to fit 1/2" O.D copper tubing.

Product Highlights

Polished chrome plated brass body with loose key shutoff for plumbing applications, certified to industry standards.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-1342

Technical Specifications

• Nozzle Flow: 15.2 GPM (57.53 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60�C)
• Temperature Min: 40 F (4.44�C)
• Cartridge-Spindle (Loose Key): Loose Key
• Material: Brass Construction
• Certifications: ASME A112.18.1 / CSA B125.1, NSF/ANSI 372 (Lead Content), NSF/ANSI/CAN 61 Q�1
• Thread Type: NPT
• Valve Type: Loose Key Security Stop
• Inlet Connection: 1/2" NPT Female Thread
• Outlet Connection: 1/2" OD Compression Fitting
• Security Feature: Removable Service Key
• Product Type: Laboratory Stop
• Low Lead Compliant: Yes
