T&S Brass B-1210-M Glass Filler 8 inches Deck Mount Pedestal 1/2 inches NPT Male Shank

Product Description

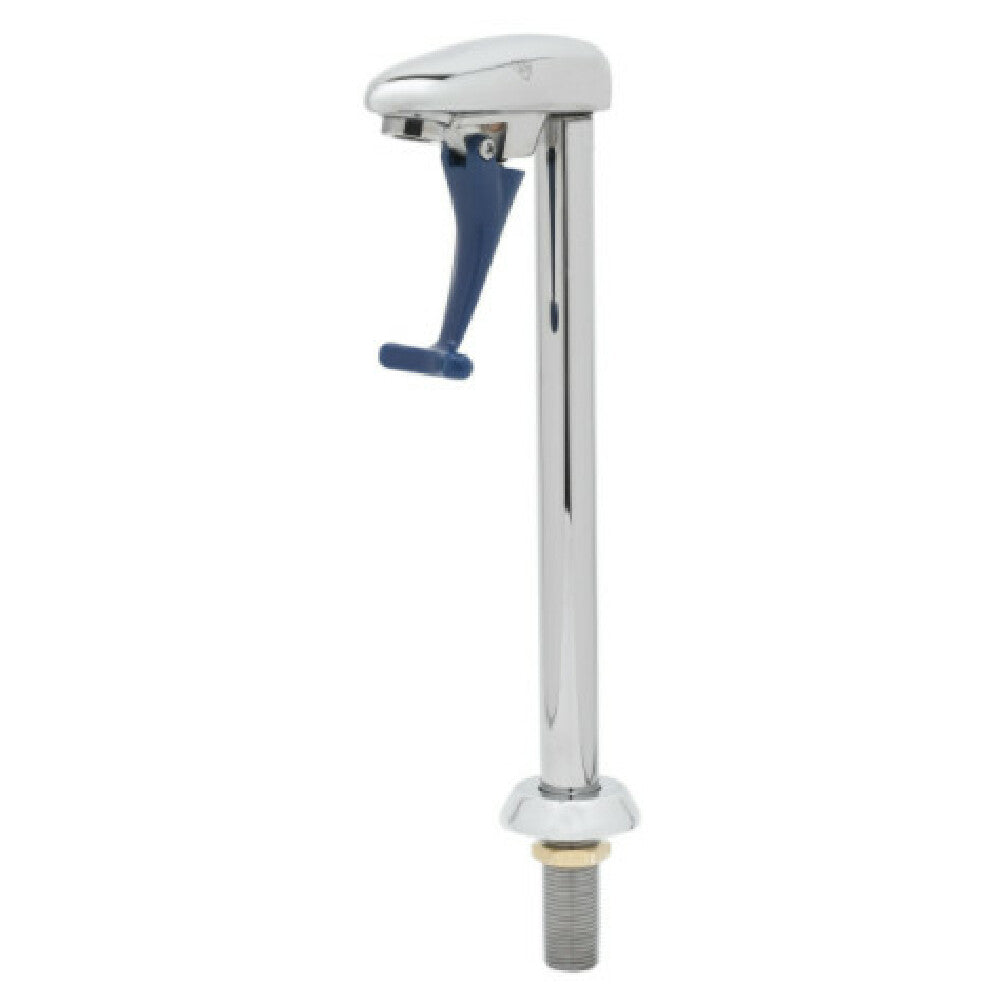

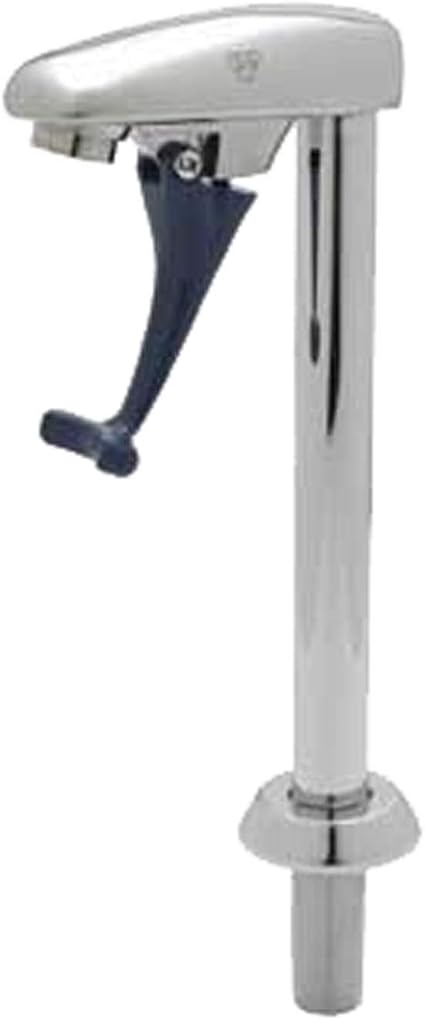

The T&S Brass B-1210-M is an 8" high deck mount glass filler with a polished chrome plated brass body. It features an adjustable flow outlet, push back actuation arm, pedestal with adjustable deck flange, and a 1/2" NPT male inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• 1/2" NPT male inlet
• 8" high deck mount glass filler
• Dark blue push back arm

Product Highlights

This glass filler is ideal for food service environments, providing a reliable and efficient way to fill glasses.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-1210-M
• Country of Origin: US

Technical Specifications

• Body: Glass Filler
• Body Mount: Deck
• Material: Brass Construction
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Brand: T&S Brass
• Part Number: B-1210-M
• Item model number: B-1210-M
• Mounting Type: Pedestal
• Manufacturer: T&S Brass
• Model Number: B1210M
• Manufacturer Part #: B1210M
• Country of Origin: United States
• Product Type: OEM
