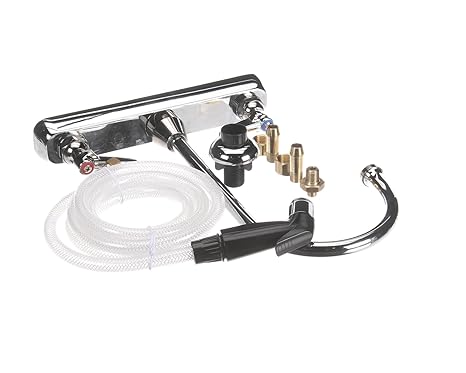

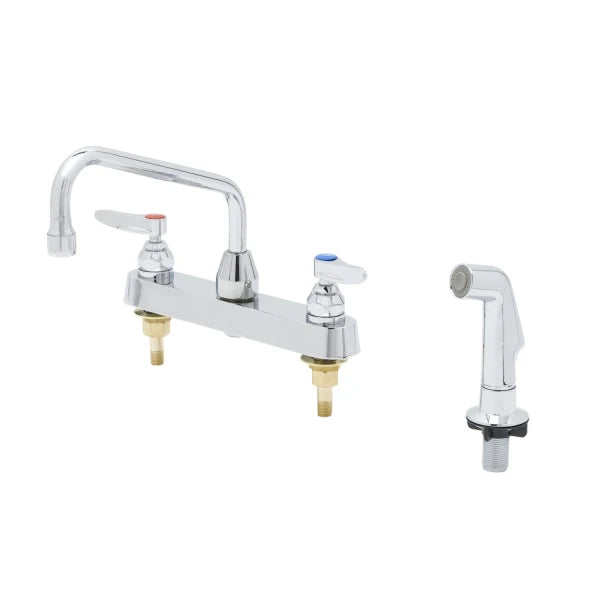

T&S Brass B-1172 Workboard Faucet, Deck Mount, 8 inches Centers, 8 inches Swing Nozzle, Diverter, Hose & Side Spray

Product Description

The T&S Brass B-1172 is a workboard faucet with deck mount, 8" centers, and an 8" swing nozzle. It features a diverter, hose, and side spray. Constructed with a chrome-plated brass body, this faucet includes 1/4-turn Eterna compression cartridges with spring checks to prevent water cross-flow.

• 8 in deck mount mixing faucet with chrome-plated brass body
• 8 in swing nozzle
• 1/4-turn Eterna compression cartridges with spring checks to prevent cross flow of water

Product Highlights

This durable brass faucet is ideal for commercial settings. It is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372 and meets ADA ANSI/ICC A117.1 requirements.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-1172

Technical Specifications

• Description: Workboard Faucet, Deck Mount, 8" Centers, 8" Swing Nozzle, Diverter, Hose & Side Spray
• Manufacturer: T&S Brass
• PDW MFR CAT: B-1172
• Pittman #: 225557
• Cartridge Type: 1/4-Turn Compression
• Deck Thickness: 1/4 in
• Faucet Center Size: 8 in
• Faucet Connection Size: 1/2 in
• Faucet Connection Type: MNPT
• Faucet Mount: Deck
• Finish: Chrome-Plated
• Flow Rate: 2.2 gpm at 60 psi
• Handle Height: 3-5/16 in
• Handle Material: Metal
• Handle Type: Lever
• Height: 3-5/16 in
• Includes: Hose and Side-Spray
• Length: 12-5/8 in
• Material: Brass
• Number of Handles: 1
• Spout Height: 4-5/16 in
• Spout Reach: 8 in
• WaterSense Labelled: No
• Width: 2 in
• Standards/Certifications: ADA, BAA/ARRA compliant, ANSI A117.1, ASME A112.18.1,CSA B125.1, NSF 61-9 and 372 certified
• Feature: Spring Check
• Inlet: Optional 1/4 in NPT
• Multiple Flow Rates: Multiple Flow Rates: SideSpray: 2.20 GPM (8.33 L/min)
• Nozzle: Swivel
• Nozzle Flow: 2.2 GPM (8.33 L/min)
• Nozzle Outlet Type: Aerator
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60)
• Temperature Min: 40 F (4.44)
• Recommended Uses For Product: Deck
• Mounting Type: Deck Mount
• Finish Type: Polished
• Hole Count: 1
• Style: Industrial
• Handle Lever Placement: Center
• Spout Design: Gooseneck
• Installation Method: single_hole_deck_mount, Single Hole
