T&S Brass B-1146 Faucet Wall 4c Sgn T&s+

Brand: T&S BRASS
SKU: B-1146
Availability: In Stock

Ships same day if ordered by 12 pm

$213.72
$213.72
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

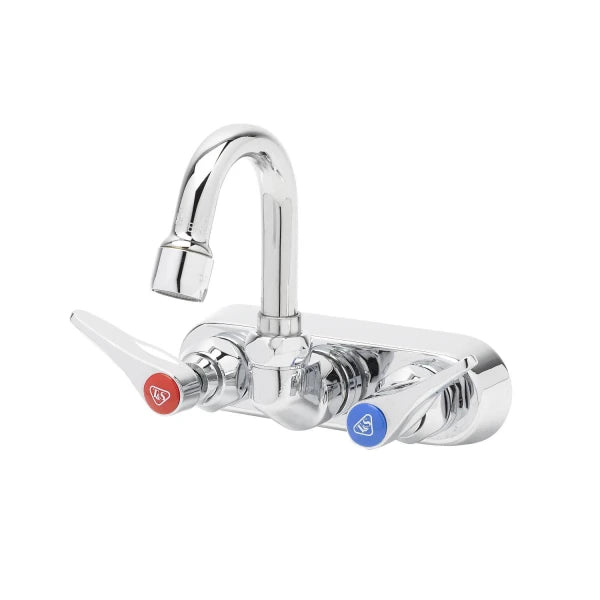

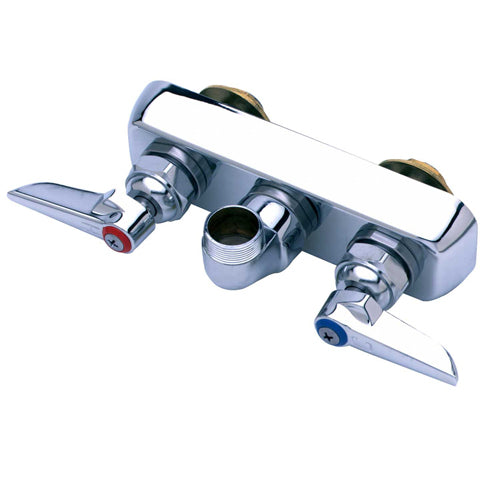

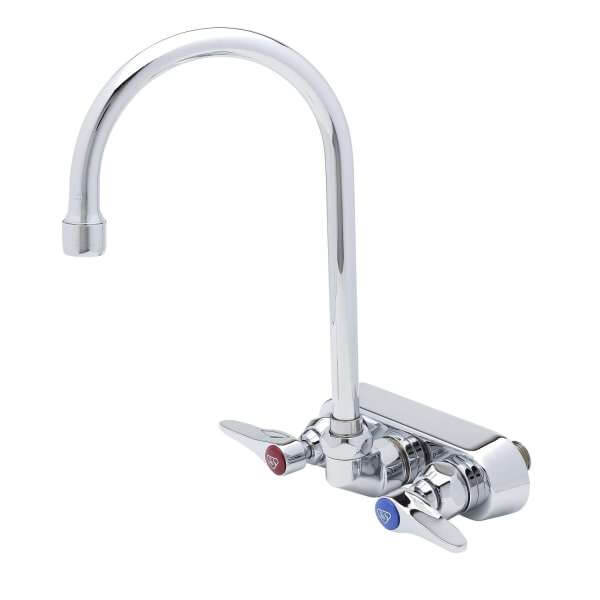

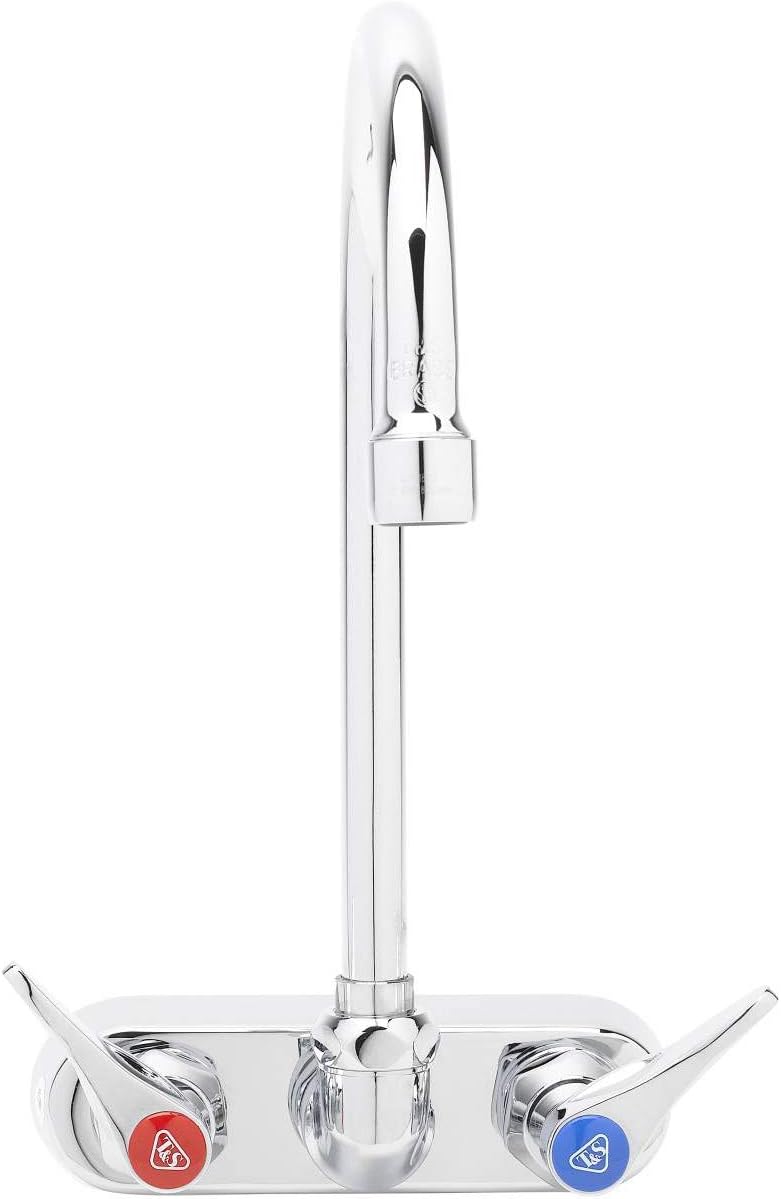

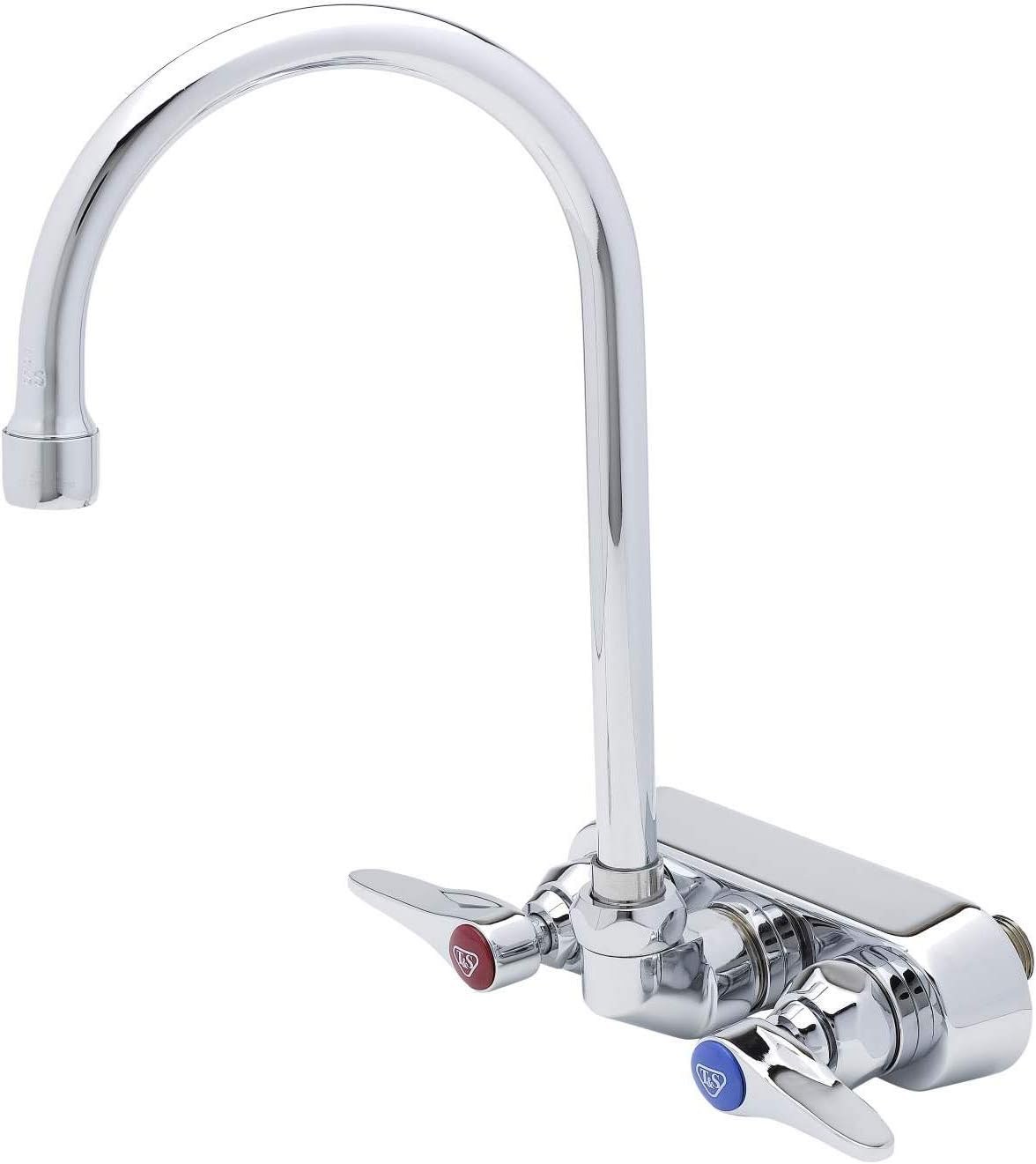

The T&S Brass B-1146 Faucet Wall 4c Sgn T&s+ is designed for wall mount applications. Constructed from brass with a chrome plated finish, this faucet features a 4" centerset, gooseneck spout, and lever handles. It is suitable for professional installation and includes product only components.

  • Wall Mount
  • Gooseneck Spout
  • Lever Handles

Product Highlights

Durable brass construction with chrome plated finish, ideal for commercial settings.

Product Information

Standard Information

  • Brand: T&S BRASS
  • Manufacturer Part Number: B-1146
  • Country of Origin: Mexico
Technical Specifications
OEM Part Number
B-1146
AllPoints OEM Part Number
TSBB-1146
OEM
T&S Brass
Unit of Stock
EA
Hazardous
false
Product Category
Equipment
Product Type
OEM
Finish
Chrome Plated
Usage
Inside
Material
Brass
Model Name
T & S Brass bar-sink-faucets
Finish Type
Chrome Plated
Handle Type
Lever
Spout Height
6-9/16 in
Certification
No
Mounting Type
Wall Mount
Handle Location
Wall-mount
Handle Material
Brass
Certificate Type
NSF/ANSI 61 and ASME A112.18.1 / CSA B125.1
Installation Type
Professional
Maximum Flow Rate
2.2 Gallons Per Minute
Number of Handles
2
Batteries Included?
No
Batteries Required?
No
Included Components
Product Only
Cartridge Type
1/4-Turn Compression
Deck Thickness
1/4 in
Escutcheon Size
6-1/2 in
Faucet Center Size
4 in
Faucet Connection Size
1/2 in
Faucet Connection Type
MNPT
Faucet Mount
Wall
Flow Rate
2.2 gpm at 60 psi
Item Name
Workboard Faucet
Spout Reach
5-3/4 in
Spout Type
Swing Gooseneck
WaterSense Labelled
No
Connection Size
1/2 in
Number of Faucet Holes
One or Three
Body
4" Centers
Body Mount
Workboard
Cartridge-Spindle
1/4 Turn Compression
Handle
Lever
Nozzle
Gooseneck
Nozzle Flow
2.2 GPM (8.33 L/min)
Nozzle Outlet Type
Aerator
Pressure Max
125 psi (8.62 bar)
Pressure Min
20 psi (1.38 bar)
Temperature Max
140 F (60℃)
Temperature Min
40 F (4.44℃)
Model#
B-1146
Manufacturer Name
T&S Brass
Applicable Standard
ADA, NSF/ANSI 61/372, ASME A112.18.1/CSA B125.1, BAA/ARRA, EPAct, Massachusetts, CSA (Canada and US)
Inlet Connection
IPS
Spout Dimensions
10-11/16 Inch Height x 6-1/4 Inch Clearance x 5-3/4 Inch Reach
Type
2-Handle, Wall Mount
Used On Item
Workboard and Bar Sink
Color/Finish REF
Chrome
Series/Model
B1100
Country of Origin (subject to change)
Mexico
Spread
4IN
ADA Compliant
Yes
Faucet Features
Less Nozzle
Inlet Size
1/2IN
Centers
4 in
Gallons per Minute
2.2 gal/min
Mounting Location
Wall
Manufacturers Part Number
B-1146
Manufacturer
T&S Brass
Units
Each
Style
Industrial
Number of Pieces
1
Series ID
T & S Brass
Warranty Type
limited
Spout Design
swivel gooseneck
TS Brass
TS Brass
Room Type
Commercial
Part Number
B-1146
Item Package Quantity
1
