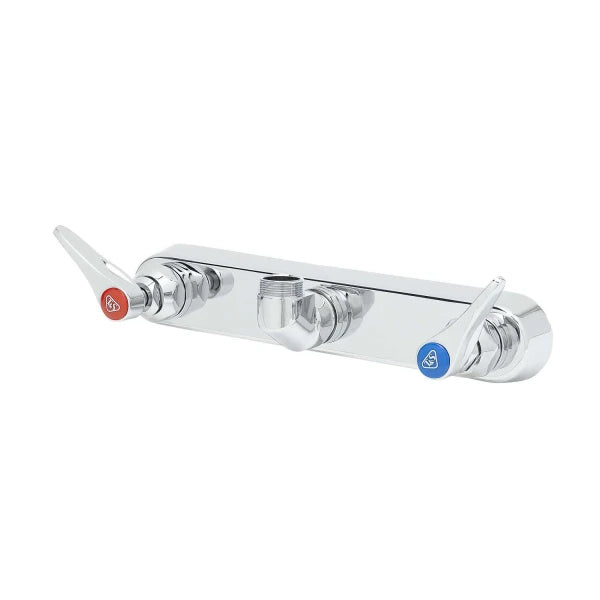

T&S Brass B-1125-LNM Workboard Faucet, Wall Mount, 8 inches Centers, Lever Handles, Less Nozzle

Product Description

The T&S Brass B-1125-LNM is an 8" wall mount mixing faucet with a chrome plated brass body and a swivel outlet designed to accept T&S swing nozzles. It features compression cartridges with spring checks, lever handles with color coded indexes, and a chrome plated escutcheon with 1/2" NPT male inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• Features 1/2" NPT male inlets
• Equipped with quarter-turn Eterna compression cartridges with spring checks to prevent water cross-flow
• Includes lever handles with color coded indexes

Product Highlights

This wall-mounted workboard faucet features a chrome-plated brass body, lever handles, and a swivel outlet, making it suitable for various applications. It is certified to meet industry standards.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-1125-LNM

Technical Specifications

• Body: Workboard
• Body Mount: Wall
• Cartridge-Spindle: 1/4 Turn Compression
• Handle: Lever
• Nozzle: Less Nozzle
• Nozzle Flow: 8.12 GPM (30.73 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Product Type: Faucet Workboard
• Body Material: Bronze
• Centers: 8in.
• Inlets: 1/2in. NPT male
