T&S Brass B-1120-LNM Workboard Deck Mounted Faucet W/ 8 inches Centers- Less Nozzle

Product Description

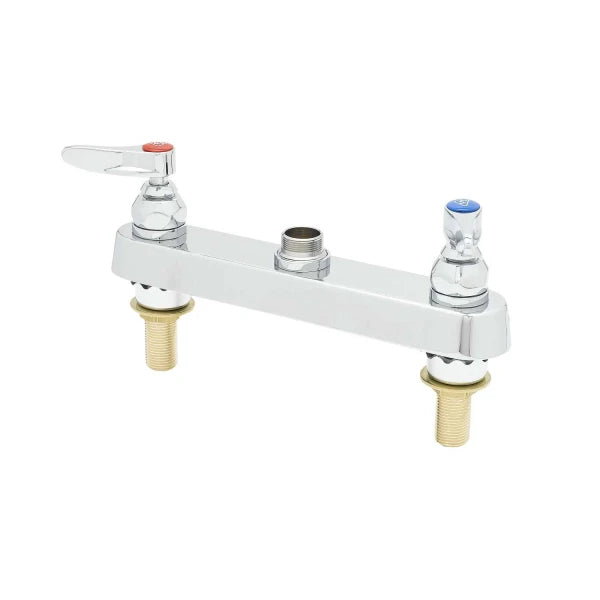

The T&S Brass B-1120-LNM is a deck mounted bronze body faucet with removable seats and a chrome plated escutcheon. It features 10-1/2" (267mm) long x 2" (51mm) wide chrome plated escutcheon, 8" (203mm) centers, 1-1/2" (38mm) long shanks, and 1/2" ips thread w/ 1/4" npt tailpiece, nut.

• Deck mounted bronze body
• Removable seats
• Chrome plated escutcheon

Product Highlights

This deck mounted faucet features a bronze body, removable seats, and a chrome plated escutcheon for durability and a polished look.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-1120-LNM
• Country of Origin: United States

Technical Specifications

• Centers: 8" (203mm)
• Shanks Length: 1-1/2" (38mm)
• Thread: 1/2" ips thread w/ 1/4" npt tailpiece
• Body: Workboard
• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: Lever
• Inlet: Optional 1/4 in NPT
• Material: Brass Construction
• Nozzle: Less Nozzle
• Nozzle Flow: 8.78 GPM (33.23 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
